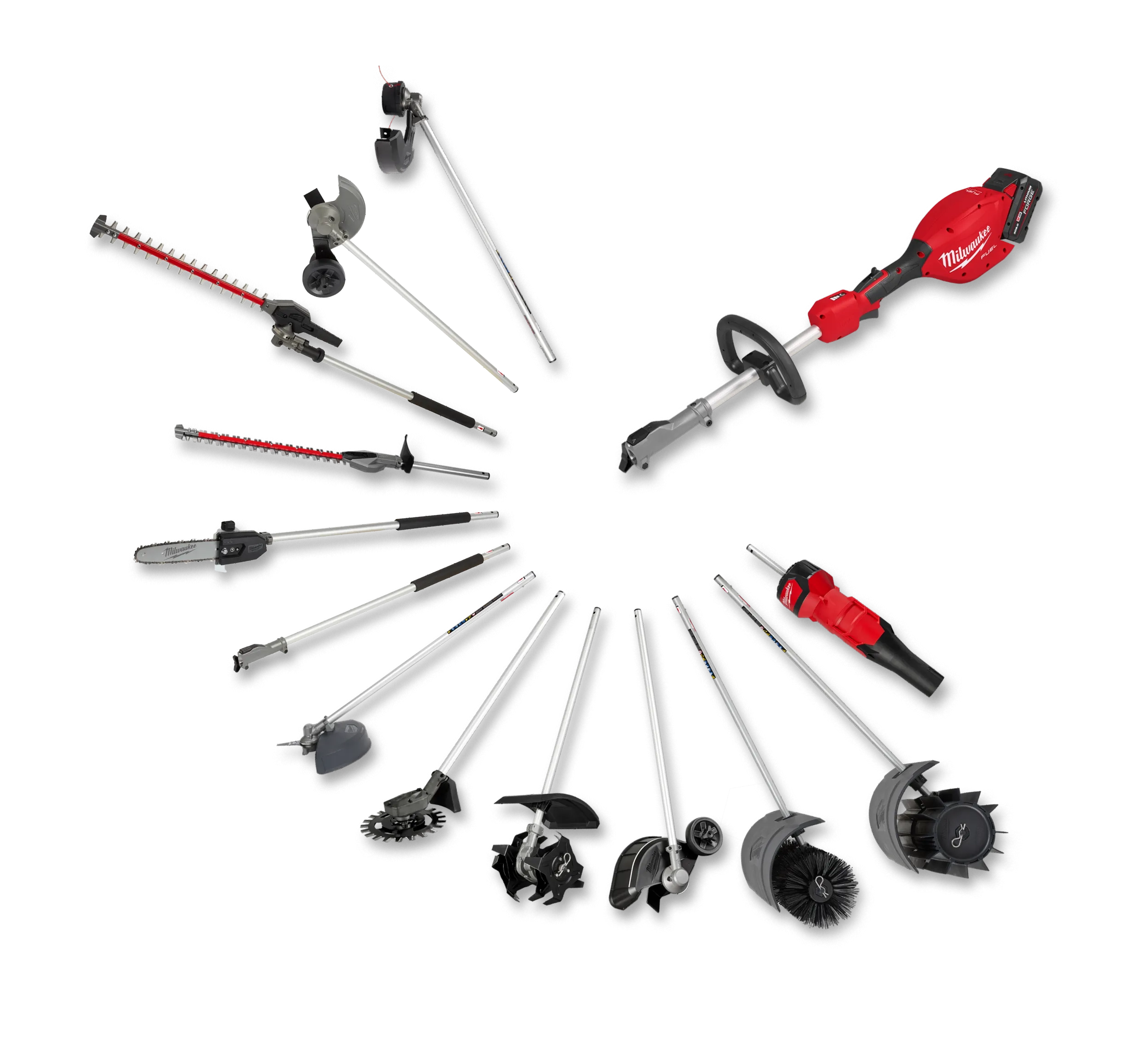

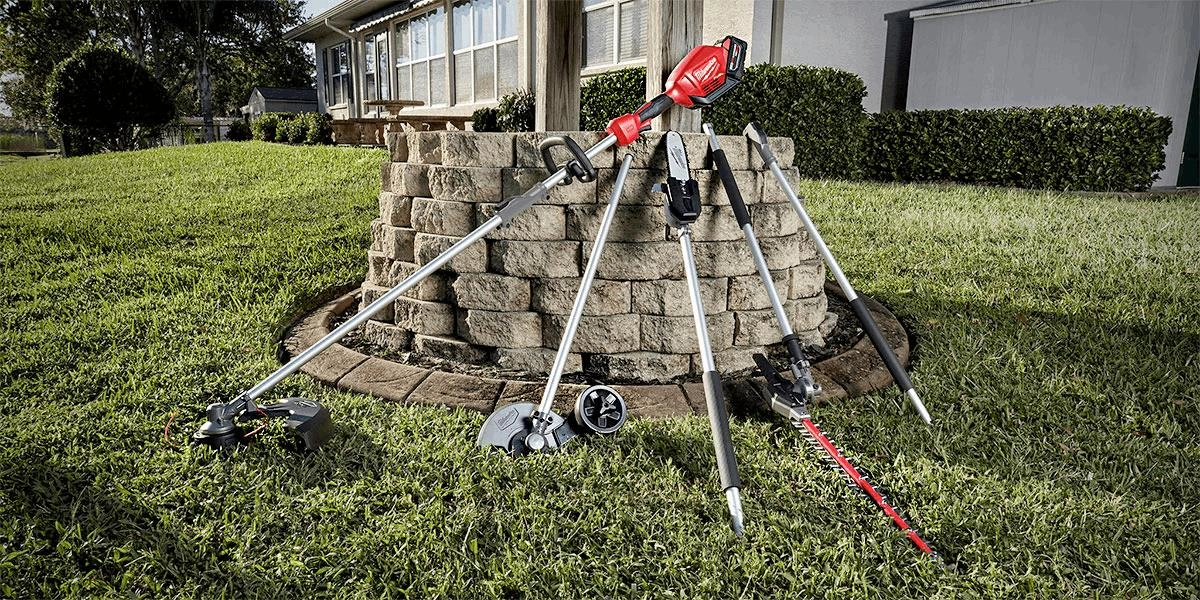

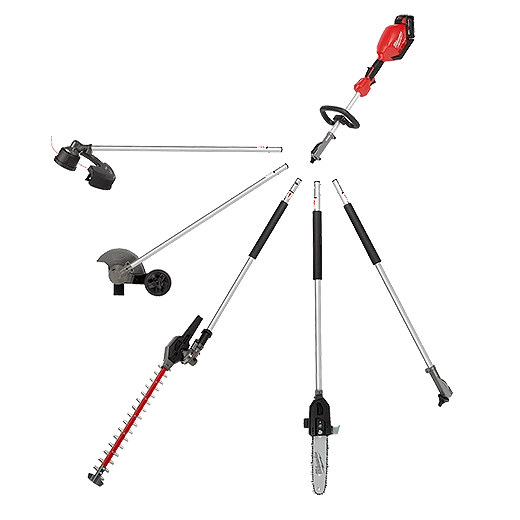

M18 FUEL™ QUIK-LOK™ ATTACHMENT SYSTEM
MULTIPLE ATTACHMENTS POWERED BY A SINGLE HEAD
Designed to meet the needs of landscape maintenance professionals, the M18 FUEL™ QUIK-LOK™ Attachment System is a versatile outdoor power equipment system featuring multiple attachments powered by a single M18 Fuel™ Power Head. With the M18 FUEL™ QUIK-LOK™ Attachment System, you have the capability to switch between multiple attachments including a string trimmer, edger, hedge trimmer and pole saw to complete a wide range of applications.The M18 FUEL™ QUIK-LOK™ Attachment System utilizes the most advanced cordless technology to deliver best-in-class power and run-time for landscaping and trade professionals, achieving instantaneous throttle response and outperforming higher voltage platforms
Power Head Kits
Attachments
Power Head Kits
Attachments

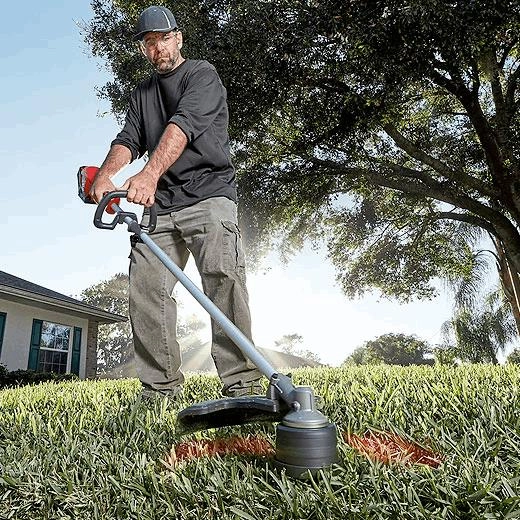

- M18 FUEL™ String Trimmer w/ QUIK-LOK™2825-20ST
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System
- Cutting Swath: 14" - 16"
- Features the Milwaukee® Easy Load Trimmer Head
- Line Diameter: 0.080" / 0.095"
- RPM: 0 - 4900 / 0 - 6201
- Trigger: Variable Speed

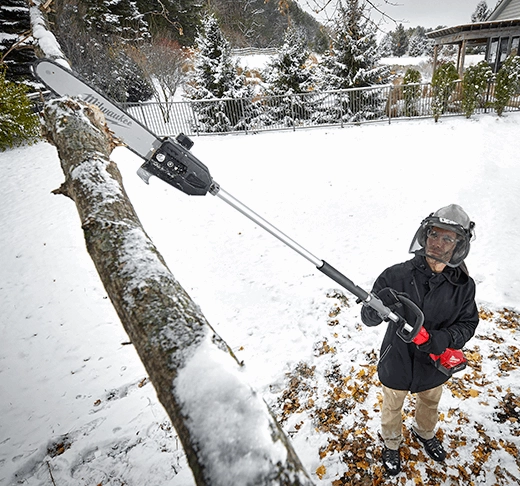

- M18 FUEL™ 10" Pole Saw Kit w/ QUIK-LOK™2825-20PS
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System
- RPM: 4,600
- Bar length: 10 in.
- Chain gauge: 0.043 in.
- Chain pitch: 3/8 in. low profile
- Length: 80 in.
- Weight: 12.7 lbs.
- M18 FUEL™ 2 Tool Combo Kit3000-21
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System
- Cutting Swath: 14" - 16"
- Features the Milwaukee® Easy Load Trimmer Head
- Line Diameter: 0.080" / 0.095"
- RPM: 0 - 4900 / 0 - 6201
- Trigger: Variable Speed
- Power to Clear From 15'
- Full Throttle In Under 1 Second
- Up to 4 lbs. Lighter
- Maximum Air Speed: 120 MPH
- Lock On Button: Yes
- High/Low Speed Settings
- M18 FUEL™ QUIK-LOK™ String Trimmer Attachment49-16-2717
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Cutting Swath: 14" - 16"
- Easy Load Trimmer Head: Easy Line-Loading, Under 30 seconds
- Feed System: Bump Feed
- Length: 36.25"
- Line Diameter: 0.080" / 0.095"
- Protected Drive-Shaft: Provides Greater Durability To Drive-Shaft Against Damage From Drops and Storage Elements
- RPM: 0 - 4900 / 0 - 6200
- Weight: 3.75 lbs
- M18 FUEL™ QUIK-LOK™ 10" Pole Saw Attachment49-16-2720
- Automatic Oiler: For Proper Chain Lubrication and Increased Productivity
- Bar Length: 10"
- Branch Hook: For Added Cutting Leverage and Branch Removal
- Chain Gauge: .043"
- Chain Pitch: 3/8" Low Profile
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Easy Access Chain Tensioner: Quick Adjustments to Chain Tension
- Padded Grip: For Optimal Hand Placement and Increased Comfort
- RPM: 4,600
- Translucent Oil Reservoir: Clear visibility to oil levels

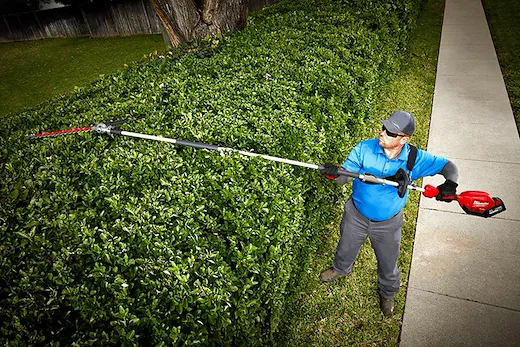

- M18 FUEL™ QUIK-LOK™ Articulating Hedge Trimmer Attachment49-16-2719
- Articulating Head Design: Adjustment Handle And Sliding Adjustment Collar Allow for 270° Blade Set Rotation, Delivering 13 Operating Positions and 1 Storage Position
- Blade Length: 20"
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Cut Capacity: 1"
- Length: 60"
- Padded Grip: For Optimal Hand Placement and Increased Comfort
- SPM: 3,500
- Tip Guard: Prevents Damage To Blade and Surrounding Work Area
- Weight: 5.8 lbs
- M18 FUEL™ QUIK-LOK™ Edger Attachment49-16-2718
- Adjustable Wheel: Optimizes Blade Depth and Tool Angle For Maximum Control
- Blade Size: 8"
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- High Strength Guard: Metal Alloy Guard Delivers Greater Durability And Includes Blade Indication For Cut-Line Visibility
- Length: 38"
- Mud Flaps: Prevents Dirt and Debris Kick-Back
- RPM: 3,900
- Skid Plate: Protects Gear Box From Concrete Contact
- Weight: 5.25 lbs
- M18 FUEL™ QUIK-LOK™ 3' Attachment Extension49-16-2721
- Compatible with QUIK-LOK™ Hedge Trimmer and Pole Saw Attachments
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Delivers 3' of additional reach
- Length: 40.5"
- Padded Grip: For Optimal Hand Placement and Increased Comfort
- Protected Drive-Shaft: Provides Greater Durability To Drive-Shaft Against Damage From Drops and Storage Elements
- QUIK-LOK™ Coupler: Positive-Locking Mechanism And Alignment Guide For fast, Tool Free Attachment Changes
- Weight: 1.95 lbs
- M18 FUEL™ QUIK-LOK™ Brush Cutter Attachment49-16-2738
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Blade Guard: Optimized design for best material containment
- Brush Cutter Blade: 4-Tooth Blade Design
- RPM: 0 - 4900 / 0 - 6200
- Protected Drive-Shaft: Provides Greater Durability To Drive-Shaft Against Damage From Drops and Storage Elements
- Alignment Label: Indicates when attachment is fully inserted into M18 FUEL™ Power Head
- Blade Diameter: 9"
- Weight: 3.66 lbs
- Length: 40.6"
- M18 FUEL™ QUIK-LOK™ Rubber Broom Attachment49-16-2740
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Rubber Paddles: Optimized paddle design for longer life
- Optimized Guard Design for Best Material Containment
- 23" Clearing Width
- Protected Drive-Shaft: Provides Greater Durability To Drive-Shaft Against Damage From Drops and Storage Elements
- Alignment Label: Indicates when attachment is fully inserted into M18 FUEL™ Power Head
- Length: 48.75"
- Weight: 16.2 pounds
- M18 FUEL™ QUIK-LOK™ Bristle Brush Attachment49-16-2741
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Bristles: Optimized Design for Longer Life
- Optimized Guard Design for Best Material Containment
- 23" Clearing Width
- Protected Drive-Shaft: Provides Greater Durability To Drive-Shaft Against Damage From Drops and Storage Elements
- Alignment Label: Indicates when attachment is fully inserted into M18 FUEL™ Power Head
- Length: 48.75"
- Weight: 14.4 pounds
- M18 FUEL™ QUIK-LOK™ Bed Redefiner Attachment49-16-2795
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Durable Steel Blade maintains a 2.75” deep x 3.0” wide Tapered Edge
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System, featuring 13 different attachments for all-season versatility
- Adjustable Wheel: Optimizes Blade Depth and Tool Angle for Maximum Control
- Optimized Guard Design for Best Material Containment and Includes Blade Indication for Trench-Line Visibility
- Length: 35"
- Mud Flaps: Prevents Dirt and Debris Kick-Back
- RPM: 2,000
- Skid Plate: Protects Gear Box from Wear
- Weight: 6.4 lbs.
- Trench Depth: 2.75”
- Trench Width: 3.0”
- M18 FUEL™ QUIK-LOK™ Cultivator Attachment49-16-2739
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- 9" Steel Tines Optimized for longer life
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System, featuring 13 different attachments for all-season versatility
- Optimized Guard Design for Best Material Containment
- 9” Tilling Width
- Four 9” Diameter, Four Tine Bolo Style Blades
- Length: 41.5”
- Weight: 9.4 lbs.
- M18 FUEL™ QUIK-LOK™ Hedge Trimmer Attachment49-16-2796
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Has the power to cut 3/4" Branches
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System, featuring 13 different attachments for all-season versatility
- Compact Fixed Shaft Style Design
- Tip Guard: Prevents Damage to the Blade and Surrounding Work Area
- Blade Length: 20” to Clear More in a Single Pass
- Cut Capacity: 3/4”
- SPM: 3,500
- Length: 41.2”
- Weight: 4.3 lbs.
- M18 FUEL™ QUIK-LOK™ Reciprocator Attachment49-16-2794
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Designed for precise, close proximity trimming with a 1/2 inch cut capacity
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System, featuring 13 different attachments for all-season versatility
- Blade Diameter: 9”
- Cut Capacity: 1/2”
- SPM: 1,200
- Length: 38”
- Weight: 5.2 lbs.
- M18 FUEL™ QUIK-LOK™ Blower Attachment49-16-2793
- Compatible with the M18 FUEL™ Power Head w/ QUIK-LOK™
- Delivers 500 CFM and 120 MPH
- Part of the M18 FUEL™ QUIK-LOK™ Attachment System, featuring 13 different attachments for all-season versatility
- Sound pressure rating of 59db(A) per ANSI B175.2
- Milwaukee™ Blower Nozzle Accessory Capable
- Length: 34”
- Weight: 4.6 lbs.
