PACKOUT Modular Storage System

MX FUEL™ Pipe Threading Machine

Our MX FUEL™ Pipe Threading Machine is the industry’s first cordless threading solution, designed to make your workflow easier and more productive. Powered by MX FUEL™ REDLITHIUM™ batteries, it eliminates the need to work near outlets, allowing you to work anywhere and setup where it's most convenient, even in places corded machines can’t reach. Combined with a spring-assisted cart makes transport and setup fast and easy, while a self-contained oil reservoir keeps oil off the ground for cleaner jobsites. The MX FUEL™ Pipe Threading Machine allows you to easily move with your work, eliminating wasted time walking back and forth on the jobsite. Designed for efficiency, the machine features a second hammer chuck for seamless changeovers between threading and roll grooving, no teardown or adapters needed. The Milwaukee® NPT Pipe Threading Die Head w/Micro-Adjust automatically releases with each thread and the Micro-Adjust knob enables the easiest, most controlled die adjustments for consistent quality threads. With the MX FUEL™ REDLITHIUM™ XC8.0 FORGE battery, you get up to (165) cuts, reams, and threads on ¾” pipe per charge, with the power to handle up to 2” black iron, stainless steel, and RMC. When the job’s done, store it vertically upright to save space without spills. Compatible with ONE-KEY™ Technology that wirelessly connects to a smartphone to track the tool's location, manage it in inventory, and lock the tool out for added security and protection of your investment.
MX FUEL™ Pipe Threading Machine

MX FUEL™ Pipe Threading Machine

Key FeaturesSpecificationsReviews

Commonly Used With

Pipe Threading Machine

  • RedLink Plus™ Intelligence

    • Most Advanced System of Equipment Electronics in the Industry
    • Protects Equipment with Best-in-Class Thermal and Overload Monitoring
    • Delivers In-Application Communication, Optimizing Equipment Performance
  • RedLithium™ XC406 Battery Pack

    • Industry Leader in LITHIUM-ION Technology
    • Patented Designs Protect Against Drops, Water and Harsh Environments
    • Robust Electronics Optimize Performance for Every Equipment and Battery Combination
  • Powerstate™ Brushless Motor

    • Engineered Uniquely for the Demands of Each Piece of Equipment
    • Optimized for the Perfect Combination of Performance, Portability and Productivity
    • Built with Maximum Copper Content and Top-Grade Rare Earth Magnets

  • Designed to move with the work
  • Eliminates need to drain oil for transportation
  • Work where it's most convenient

  • Up to 2X faster set up and clean up

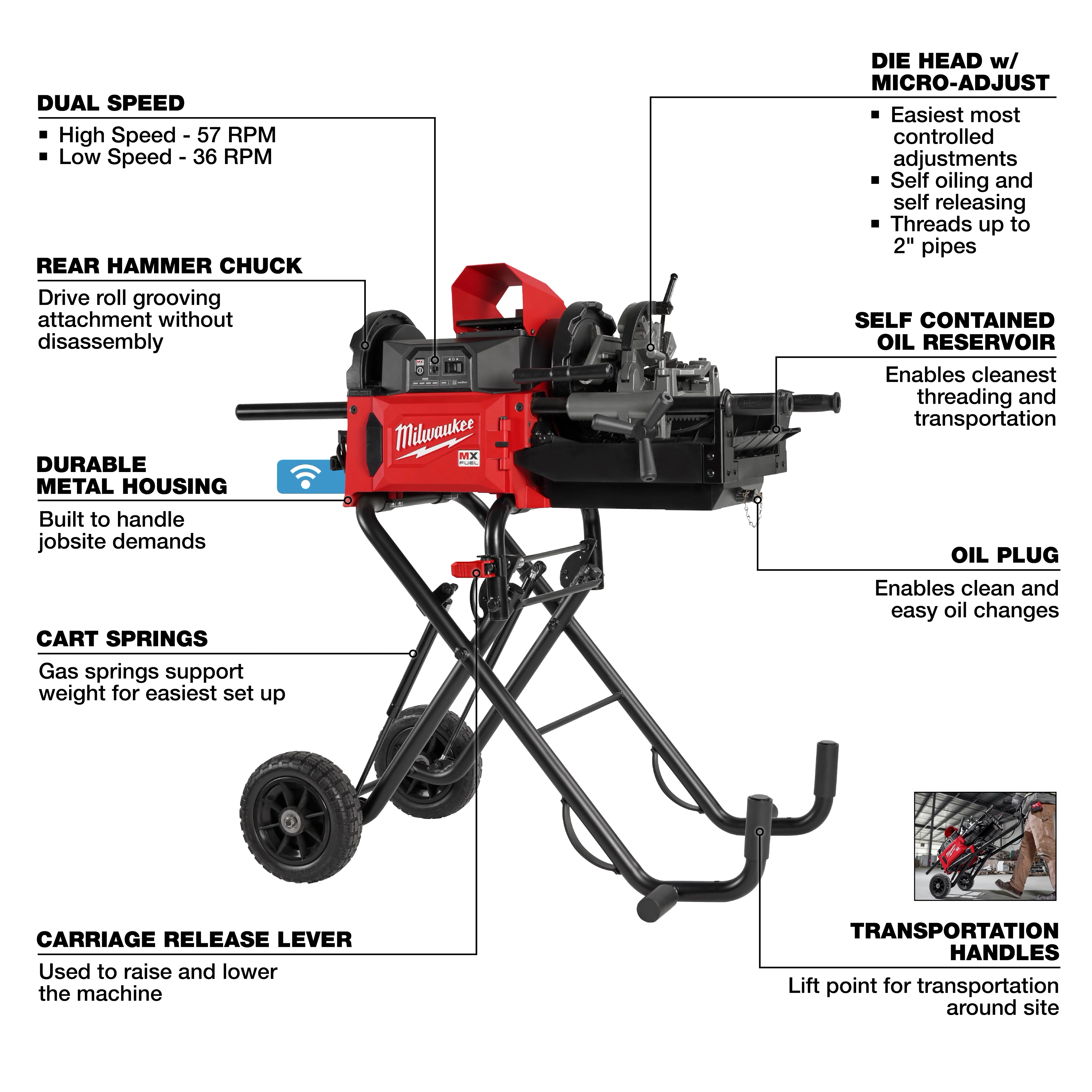

  • Two (2) operating speeds
  • Rear chuck reduces grooving set up time

  • Cut, reamed, and threaded pipe ends
  • Eliminates the need to run cords
  • Can operate at the point of installation

EQUIPMENT REDEFINED
TRADE FOCUSED
SYSTEM WIDE

Easiest Transport, Work Anywhere
Faster, Set Up to Clean Up
Up to (140) ¾” Threads Per Charge
Threads up to 2” pipes
Threads several materials including black iron pipe, stainless steel, rigid metal conduit (RMC) and more
Compatible with most roll grooving tools
Self contained oil reservoir reduces mess
Durable spring assisted cart allows for easy transportation and set up around the jobsite
Additional rear hammer chuck enables fast transitions between threading and grooving
Durable all metal housing construction
Micro-Adjust enables the easiest, most controlled die adjustments for consistent quality threads
POWERSTATE™ brushless motor provides more power, more run-time, and longer life
REDLINK PLUS™ intelligence enables advanced communication between batteries and tools for unmatched performance, protection, and productivity.
ONE-KEY™ technology allows for tracking, tool security, and inventory management
Part of the MX FUEL™ Equipment System

Product Specifications

Power Source
Cordless
Motor Type
Brushless
Material Composition
Metal
Length
45 in
Weight
240 lb
Height
44 in
Width
28 in
Badge Branding
FUEL™
Pipe Capacity
1/8" - 2"
Housing Material
All Metal Construction
Collapsible Cart
Yes
Dual Hammer Chucks
Yes
Micro-Adjust Die Head
Yes
Self-Contained Oil Reservoir
Yes
Self-Oiling
Yes
Equipment Warranty
2 years
Battery Warranty
2 years
OneKey Compatible
Yes
Fuel
Yes
Brushless
Yes
Battery System
MX FUEL
