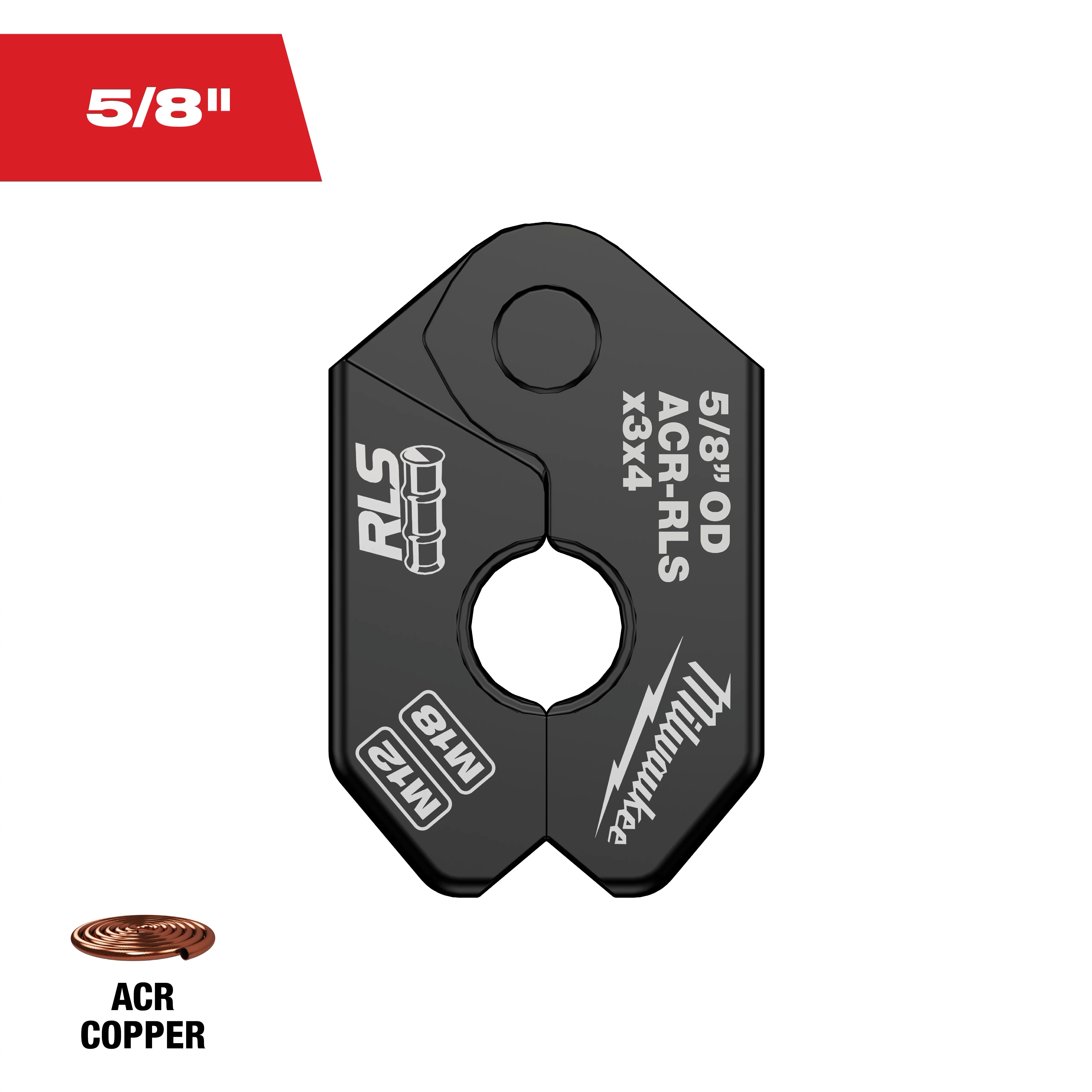

  • The 5/8" RLS® Pivoting Press Ring is a black metal tool designed for use with ACR copper. It features specifications and compatible sizes, visible on the surface of the ring.
  • The 1/2" Streamline® ACR Pivoting Press Ring is compatible with 5/8" ACR copper pipe. The image displays a copper pipe with text indicating its size and compatibility.

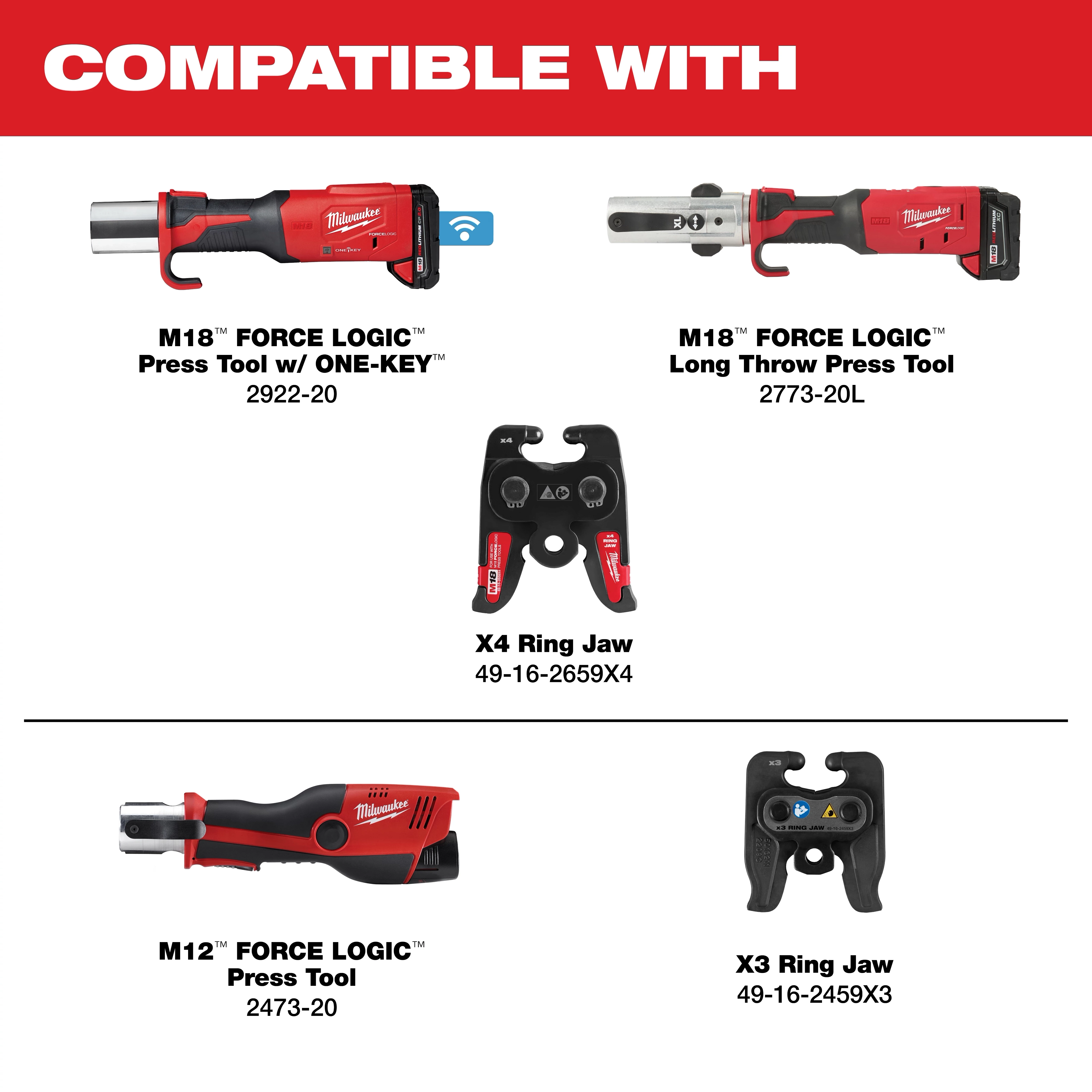

  • IPS & CTS Compatible With image highlighting Milwaukee Press Tools and Ring Jaws

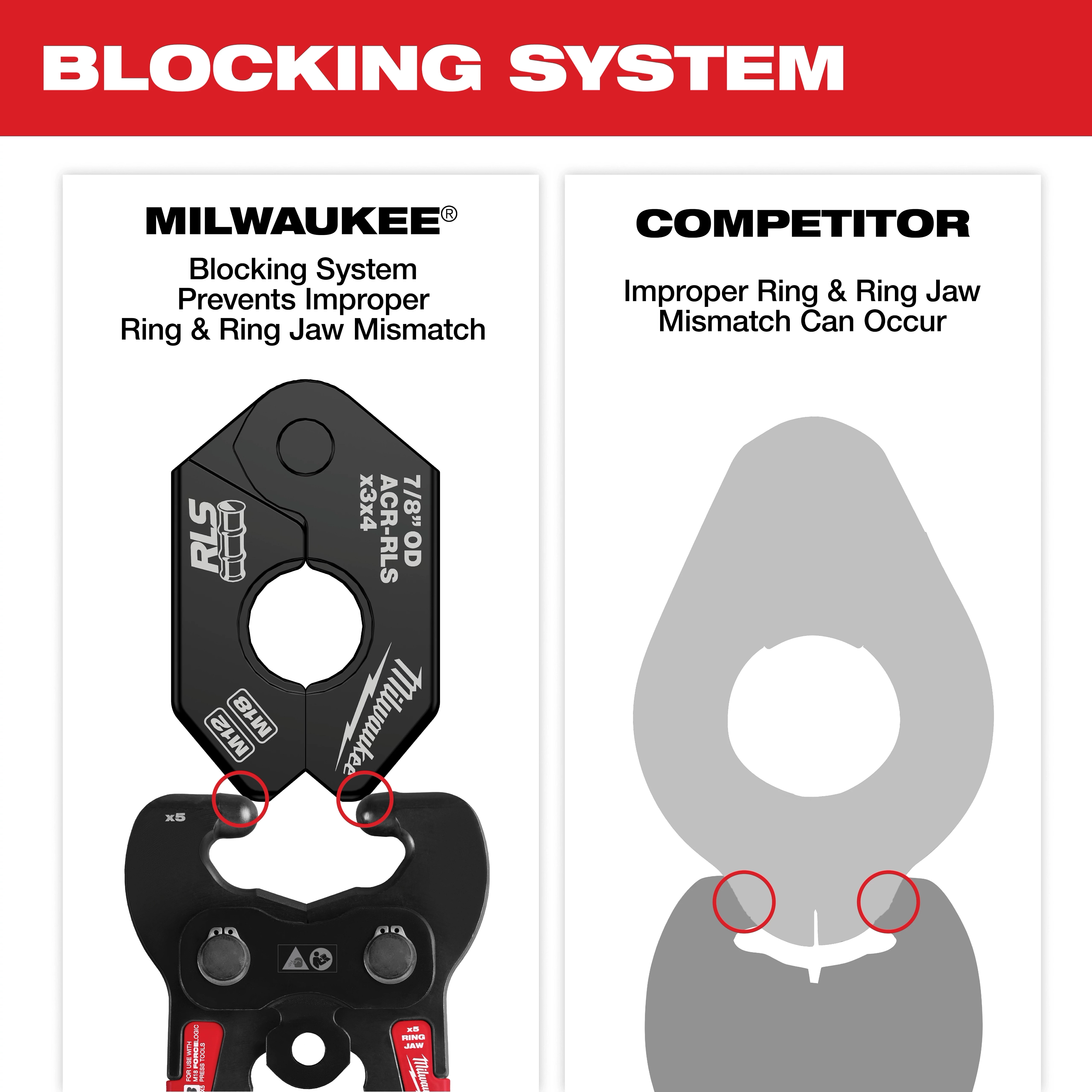

  • RLS® Pivoting Press Ring by Milwaukee features a blocking system to prevent improper ring and ring jaw mismatch. The image compares it with a competitor's product, highlighting the potential mismatch issue in the competitor's design.

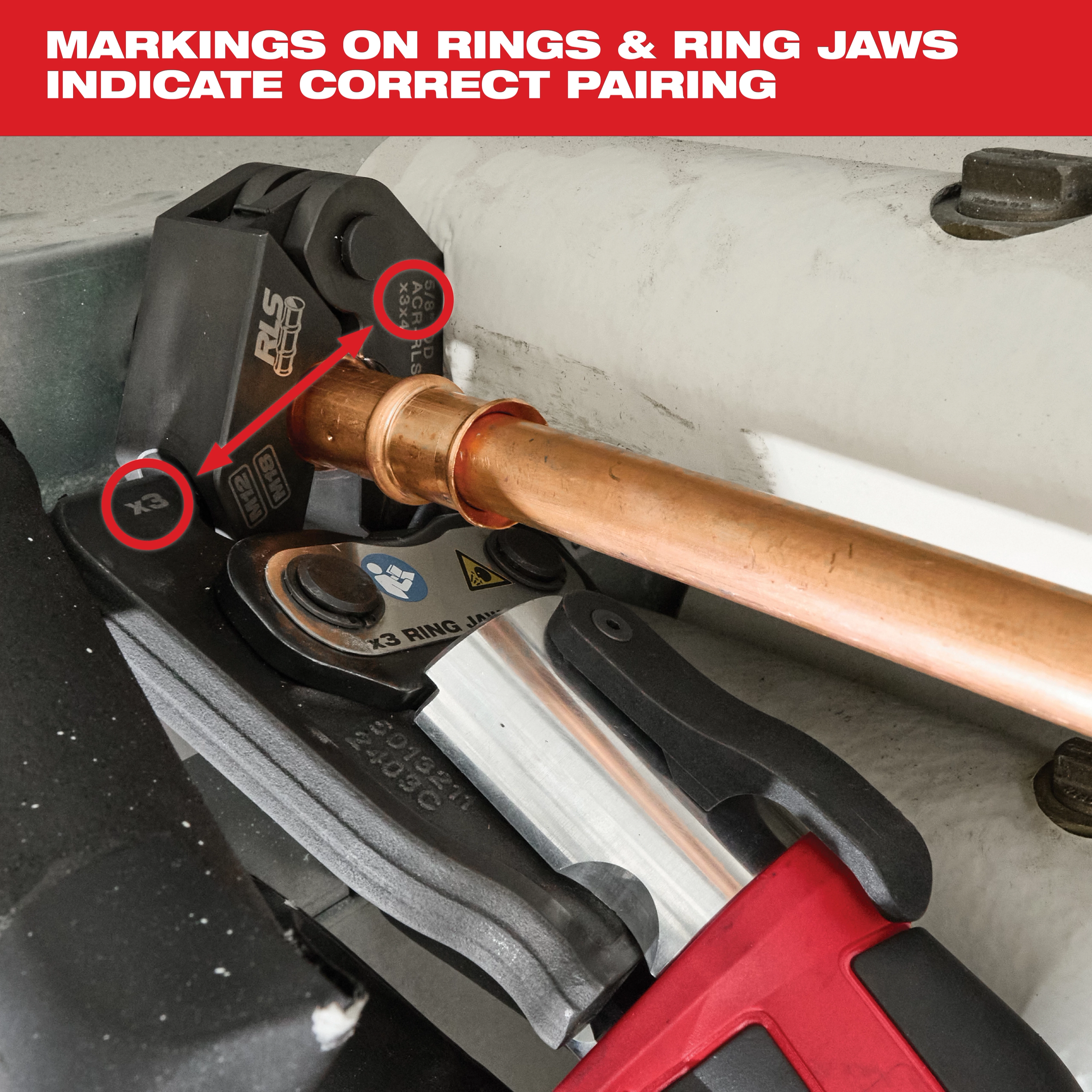

  • The RLS® Pivoting Press Ring is shown in use, securing a copper pipe. Markings on the ring and ring jaws indicate the correct pairing for operation. The image highlights the importance of aligning these components accurately for proper functionality.

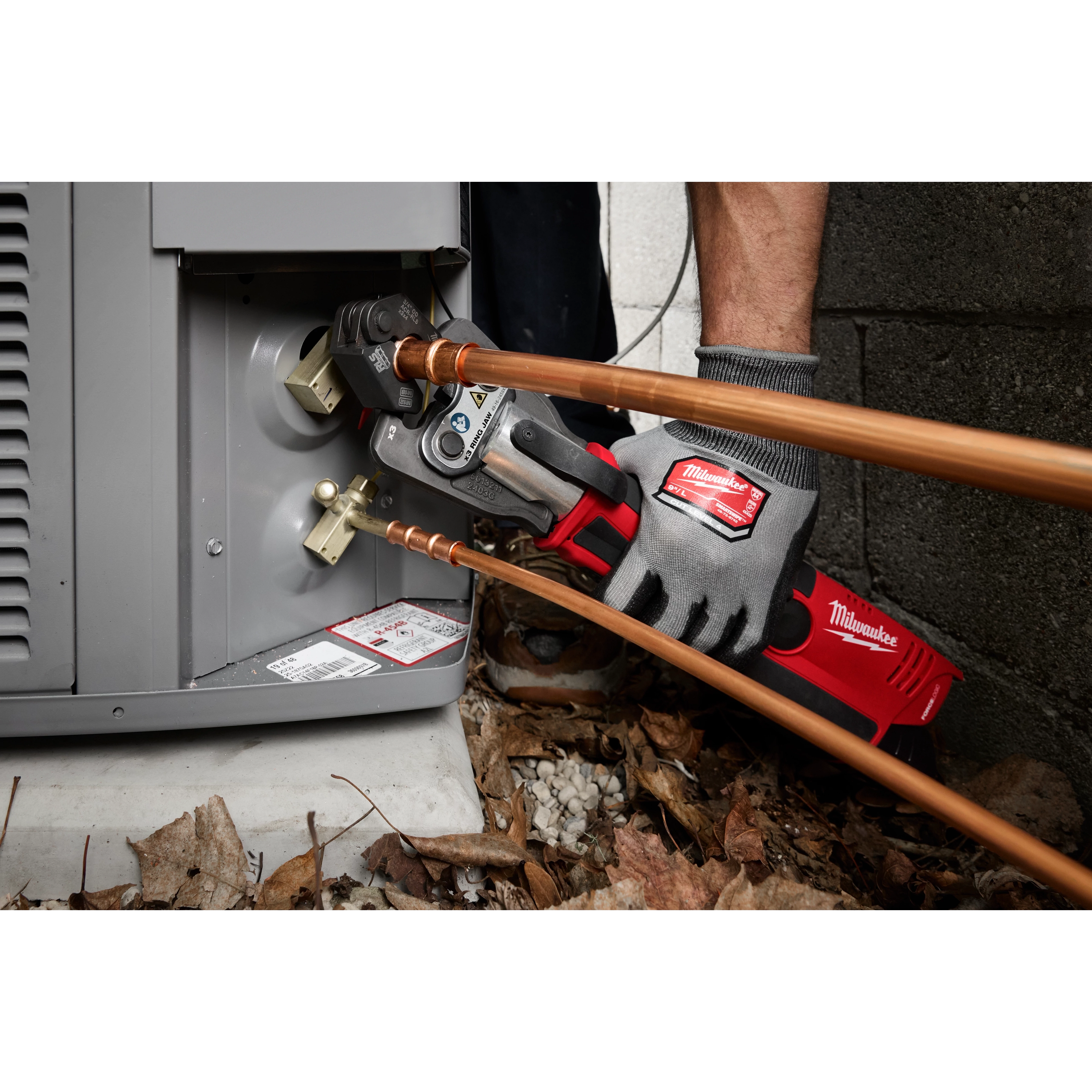

  • A technician uses a Milwaukee tool equipped with a 3/4" RLS® Pivoting Press Ring to connect copper pipes to an outdoor HVAC unit. The product aids in pressing fittings for a secure connection. The work area is surrounded by dead leaves and gravel.

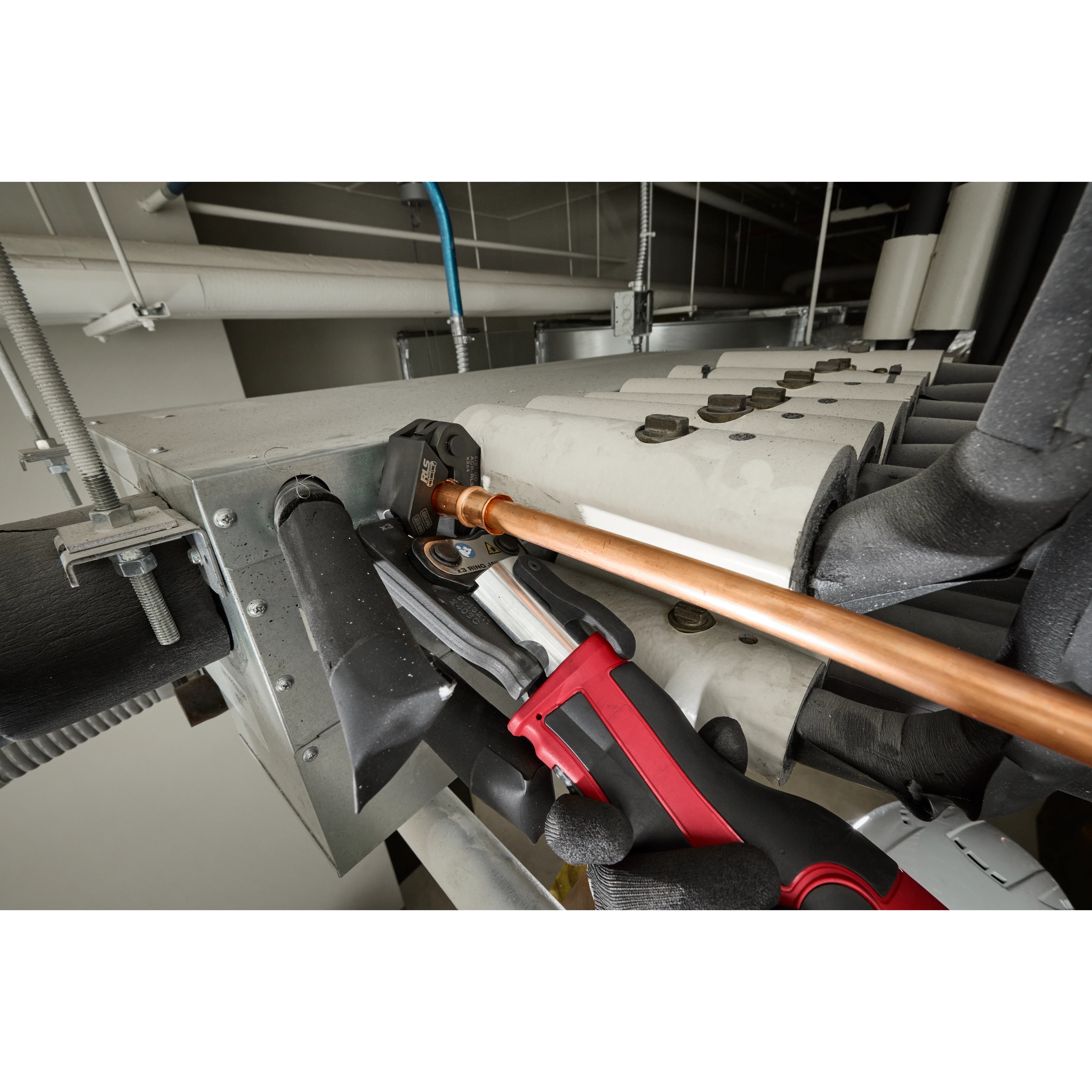

  • The 1/4" - 7/8" RLS® Pivoting Press Ring Kit for M12™ FORCE LOGIC™ Press Tool is being used on a copper pipe. A gloved hand operates the press tool, securing the pipe to a metal unit. Nearby black insulation and metal brackets are visible in the background.

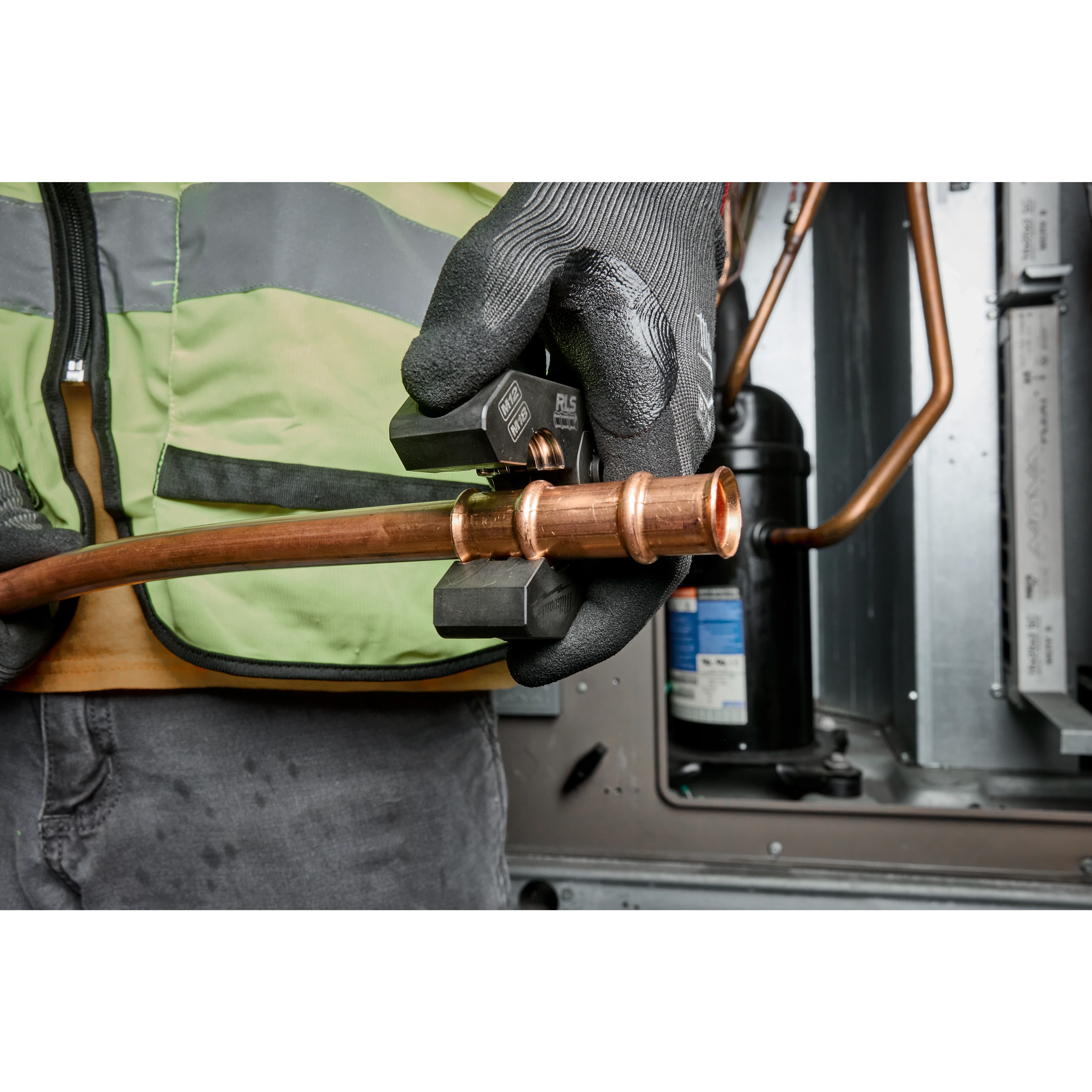

  • A worker wearing gloves uses the 1/4" - 7/8" RLS® Pivoting Press Ring Kit for M12™ FORCE LOGIC™ Press Tool on copper tubing in an HVAC setting. The worker is wearing a green safety vest while operating the tool.

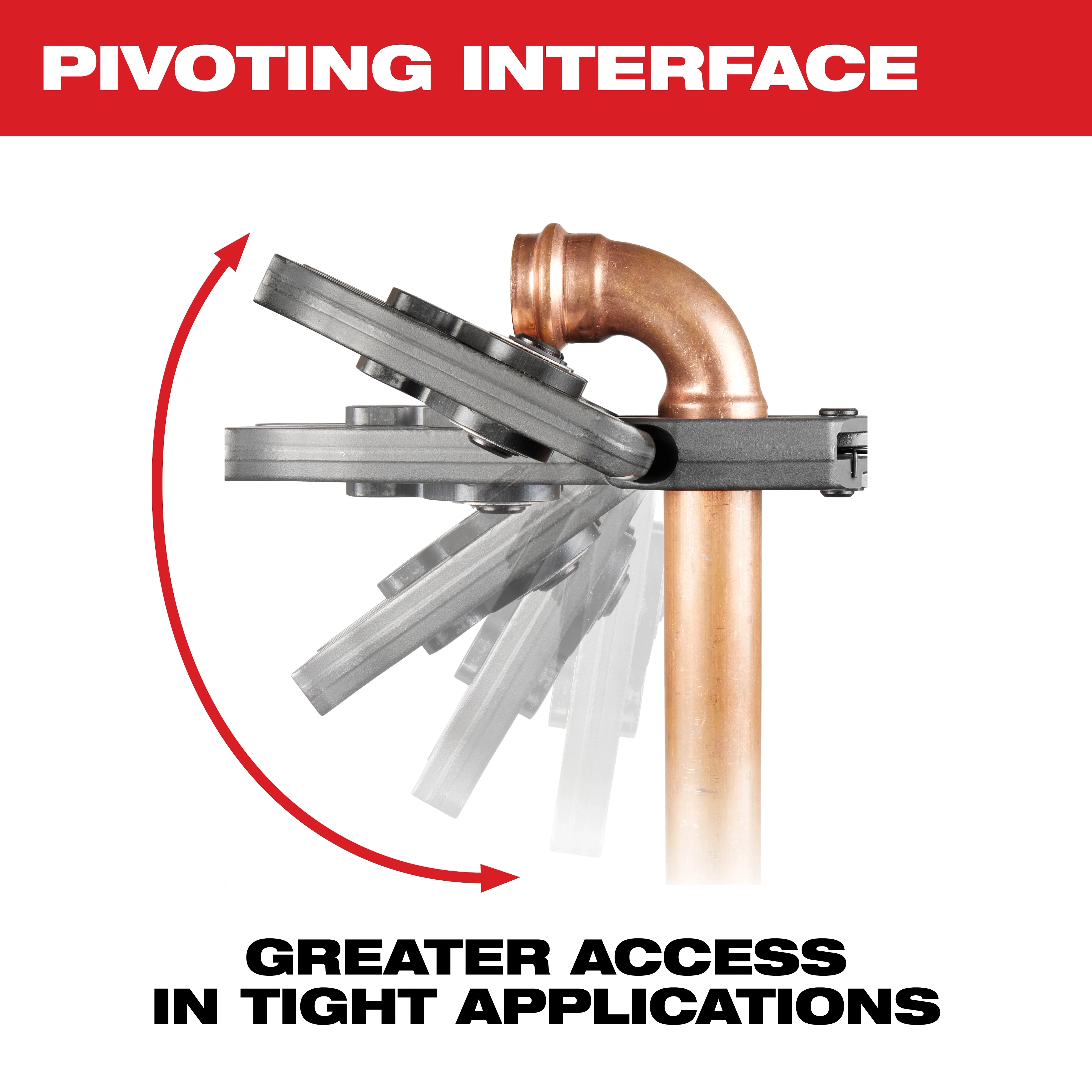

  • Image of the Milwaukee CTS-V Pivoting Press Ring Pivoting Interface with the text "Pivoting Interface. Greater Access in Tight Applications."
  • Why Press? image highlighting the 3 USPs of Milwaukee Force Logic Press Tools
  • 2 year tool warranty logo
  • RLS® Pivoting Press Ring is designed for HVAC/R braze-free press connections. It features a spring-loaded mechanism for quick alignment, a pivoting adapter interface for tight spaces, and a blocking system to prevent mismatched rings and jaws.

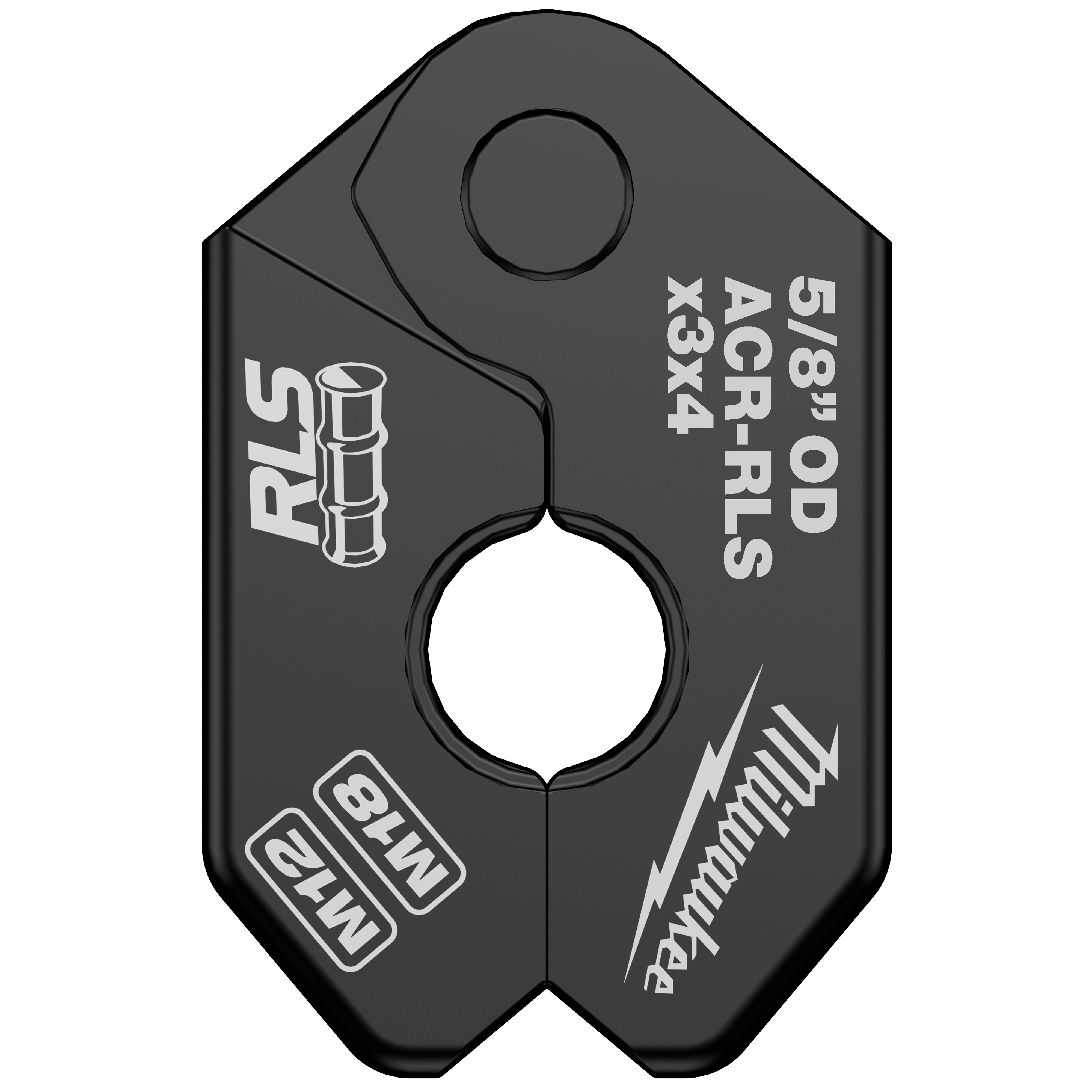

  • 5/8" RLS® Pivoting Press Ring by Milwaukee is a black tool attachment. It features outer diameter 5/8" OD ACR-RLS X3 X4 markings and has a central hole for pressing applications. The tool also has RLS branding on the left and Milwaukee branding on the right.
49-16-2654RX

5/8" RLS® Pivoting Press Ring

Share

Specs

Loading
Manuals
Parts List

Product Overview

Our ACR Pivoting Press Rings are designed for use with M18™ & M12™ FORCE LOGIC™ Press Tools. The ACR Pivoting Press Ring is a more efficient alternative to sweat and solder, enabling you to press connections on copper tubing. Pivoting functionality delivers greater access in tight spaces when paired with a compatible Milwaukee® Ring Jaw and FORCE LOGIC™ Press Tool. Our press blocking system prevents improper ring and ring jaw mismatch, providing peace of mind in quality connections. The ACR Pivoting Press Rings, combined with a compatible Milwaukee® Ring Jaw and in-line FORCE LOGIC™ Press Tool, deliver unrivaled access in tight spaces, providing you with controlled, flameless copper connections for unmatched productivity.

  • Compatible with M18™ and M12™ FORCE LOGIC™ Press Tools

  • Pivoting Functionality Delivers Greater Access in Tight Applications

  • Faster Alternative To Sweat and Solder

  • Durable Steel Rings Provide Outstanding Life

  • Designed for Use with RLS® Fitting System

  • Blocking System Prevents Ring & Ring Jaw Mismatch

  • Spring-Loaded Ring for Quick and Easy Alignment to Fitting

  • 2 Year Warranty
