Product Overview

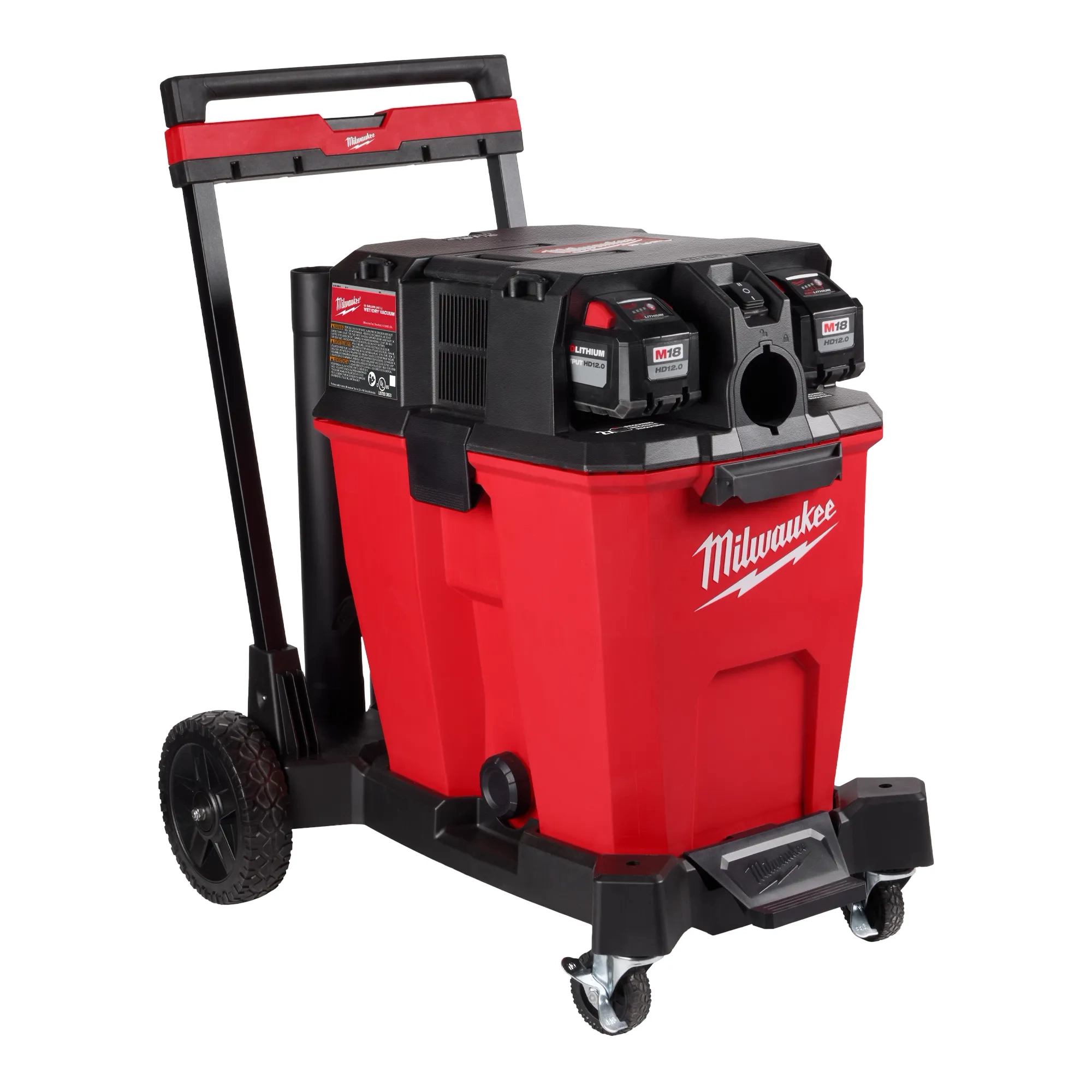

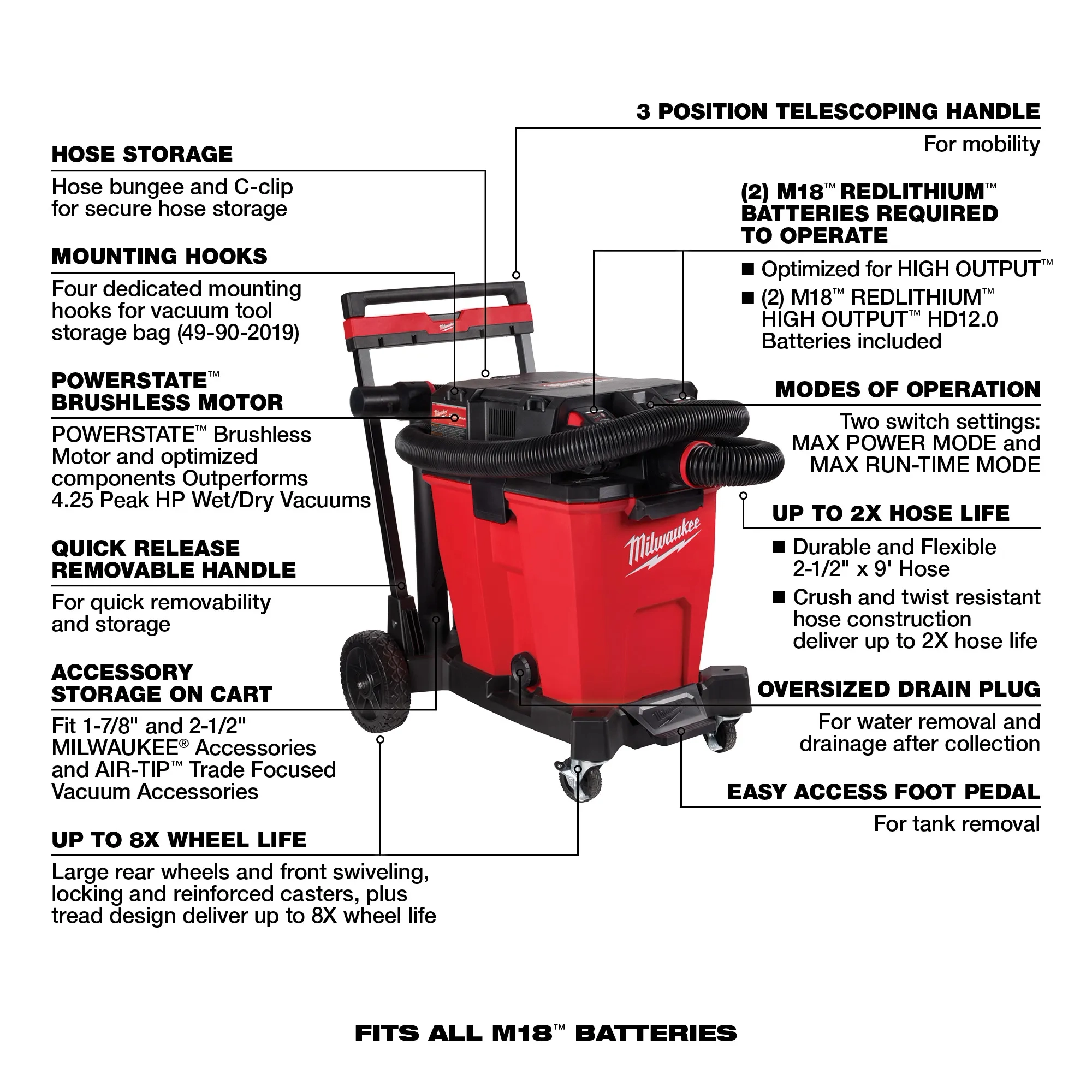

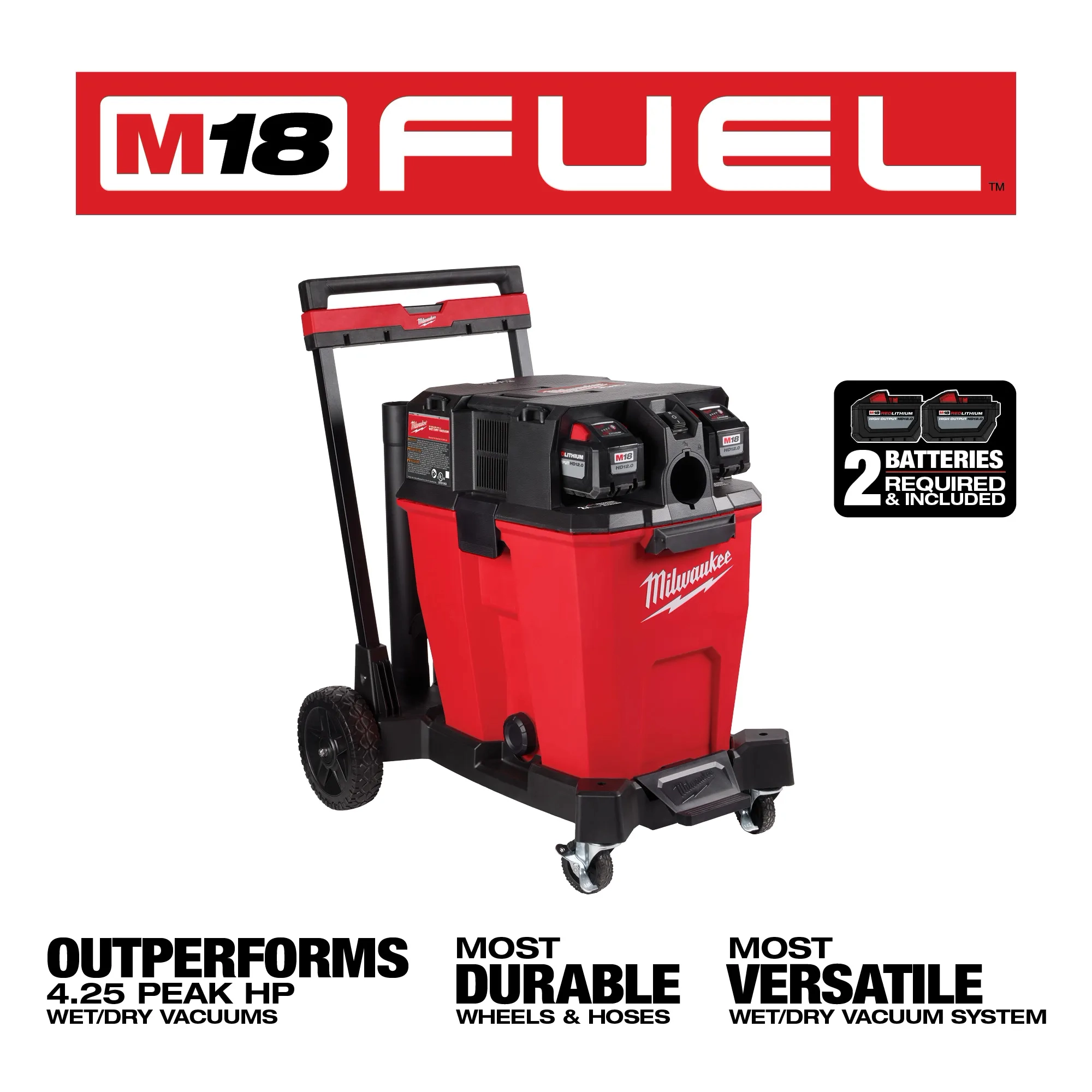

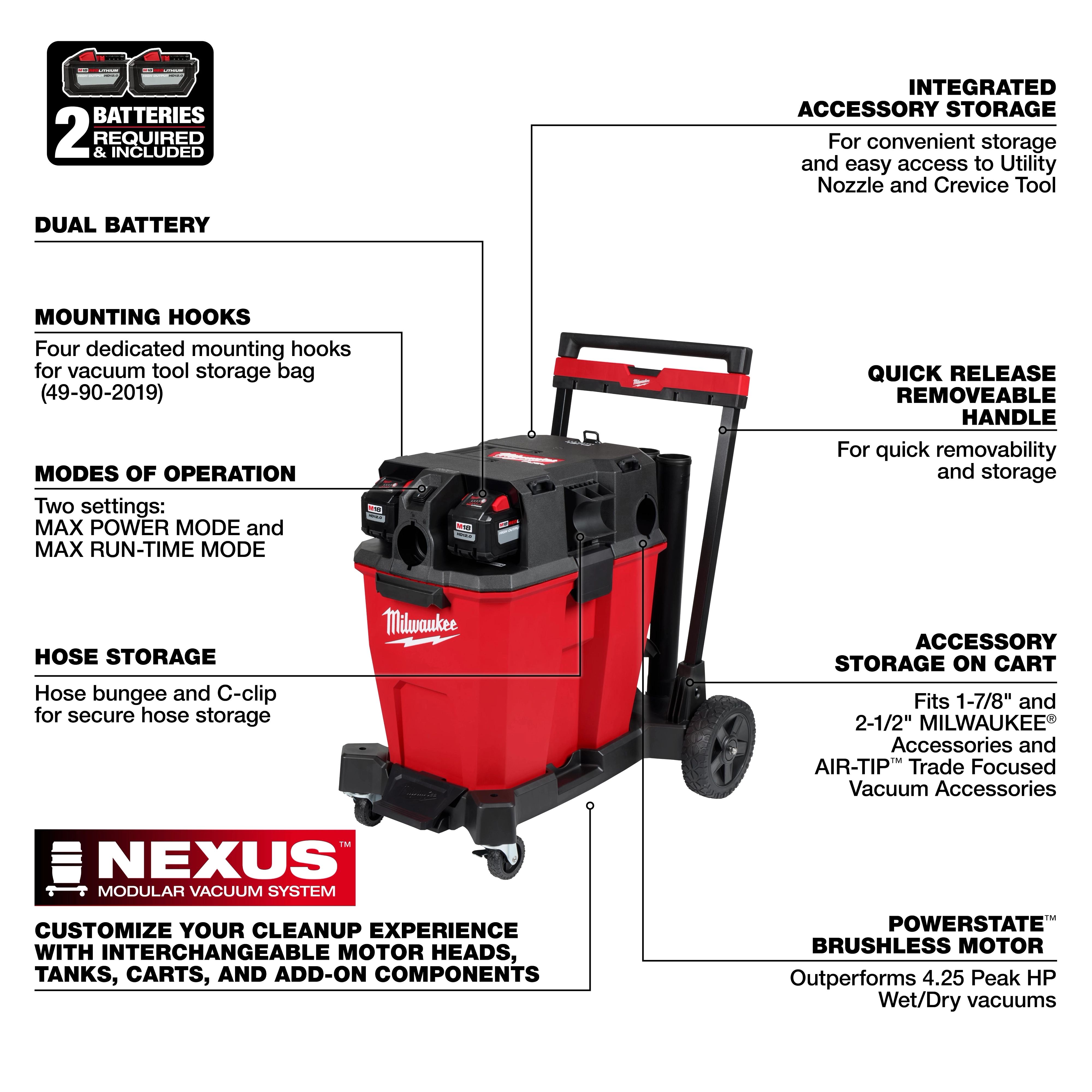

Our M18 FUEL™ 12 Gallon Dual Battery Wet/Dry Vacuum brings unmatched performance, durability, and versatility to jobsite cleanup. The POWERSTATE™ Brushless Motor and optimized components Outperform 4.25 Peak HP Wet/Dry Vacuums, delivering more cleaning power than corded. The MILWAUKEE® Dual Battery Motor Head requires (2) batteries (included) to operate and cleans up more common jobsite debris than 4.25 peak HP wet/dry vacs in the same amount of time. This cordless vac provides you with the Most Durable Wheels and Hoses with reinforced casters and tread design for up to 8X wheel life. The crush and twist-resistant hose construction delivers up to 2X hose life. MAX POWER MODE delivers up to 34 minutes of continuous cleaning time (up to 1,600 ft²) and up to 49 minutes (up to 1,800 ft²) on MAX RUN-TIME MODE per charge on (2) M18™ REDLITHIUM™ FORGE™ HD12.0 Battery Packs. The removable telescoping handle increases mobility with three adjustable heights. Cart accessory storage allows for easy access to accessories when needed. This vac is is part of the NEXUS™ Modular Vacuum System. This system allows users to customize their cleanup experience with interchangeable motor heads for varying power, tanks for holding capacity, carts for mobility, and add-on components to enhance the cleanup experience.

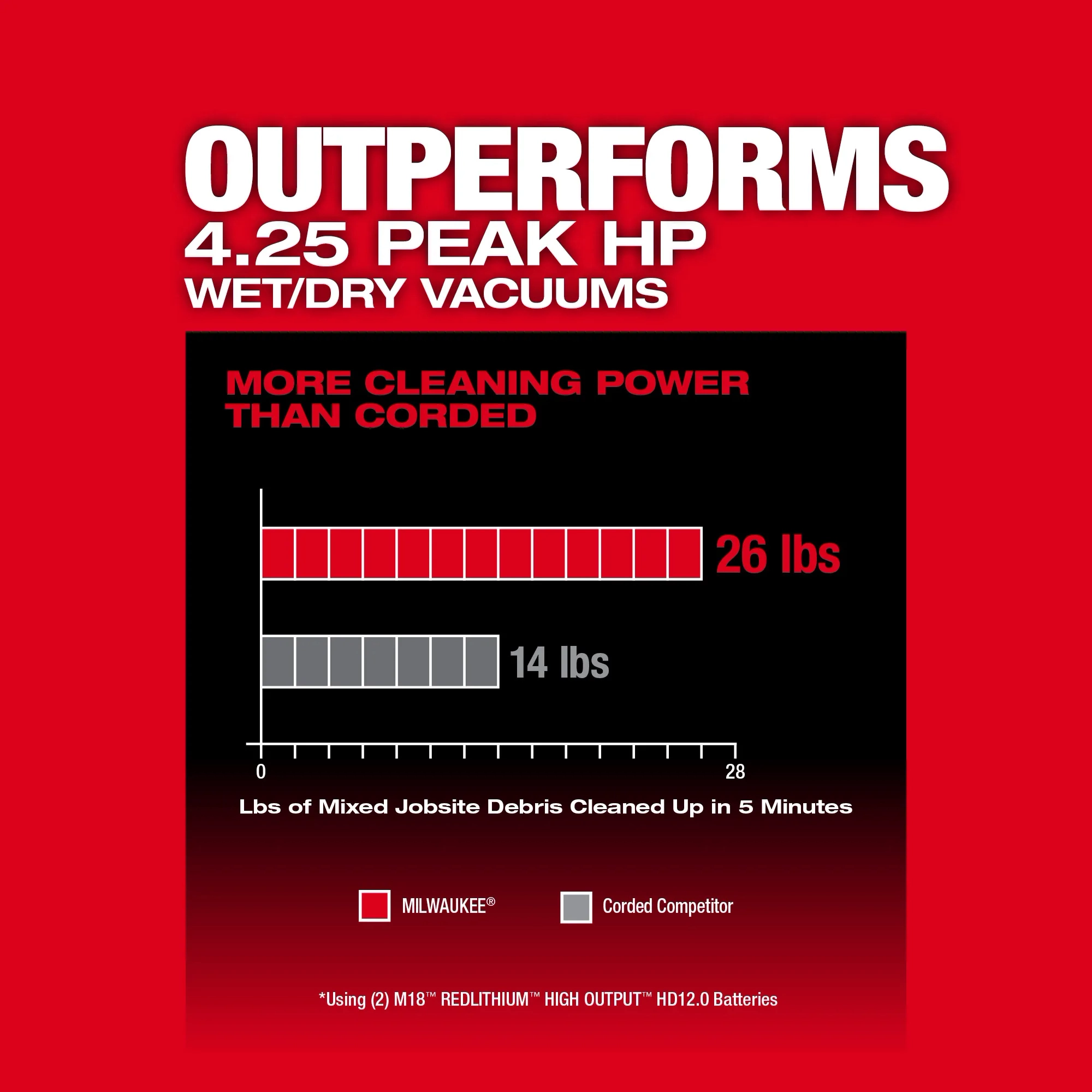

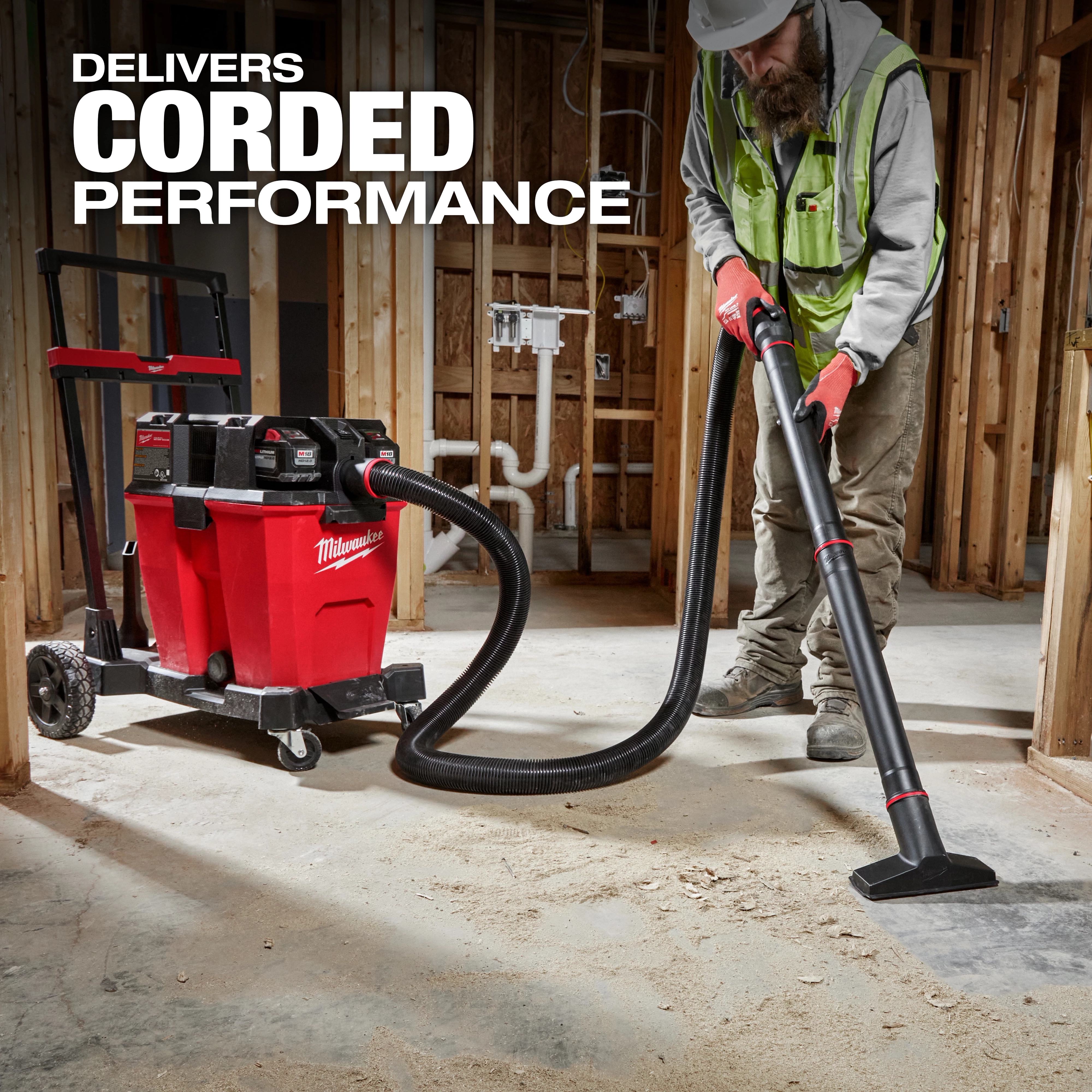

POWERSTATE™ Brushless Motor and optimized components Outperforms 4.25 Peak HP Wet/Dry Vacuums, delivering more cleaning power than corded

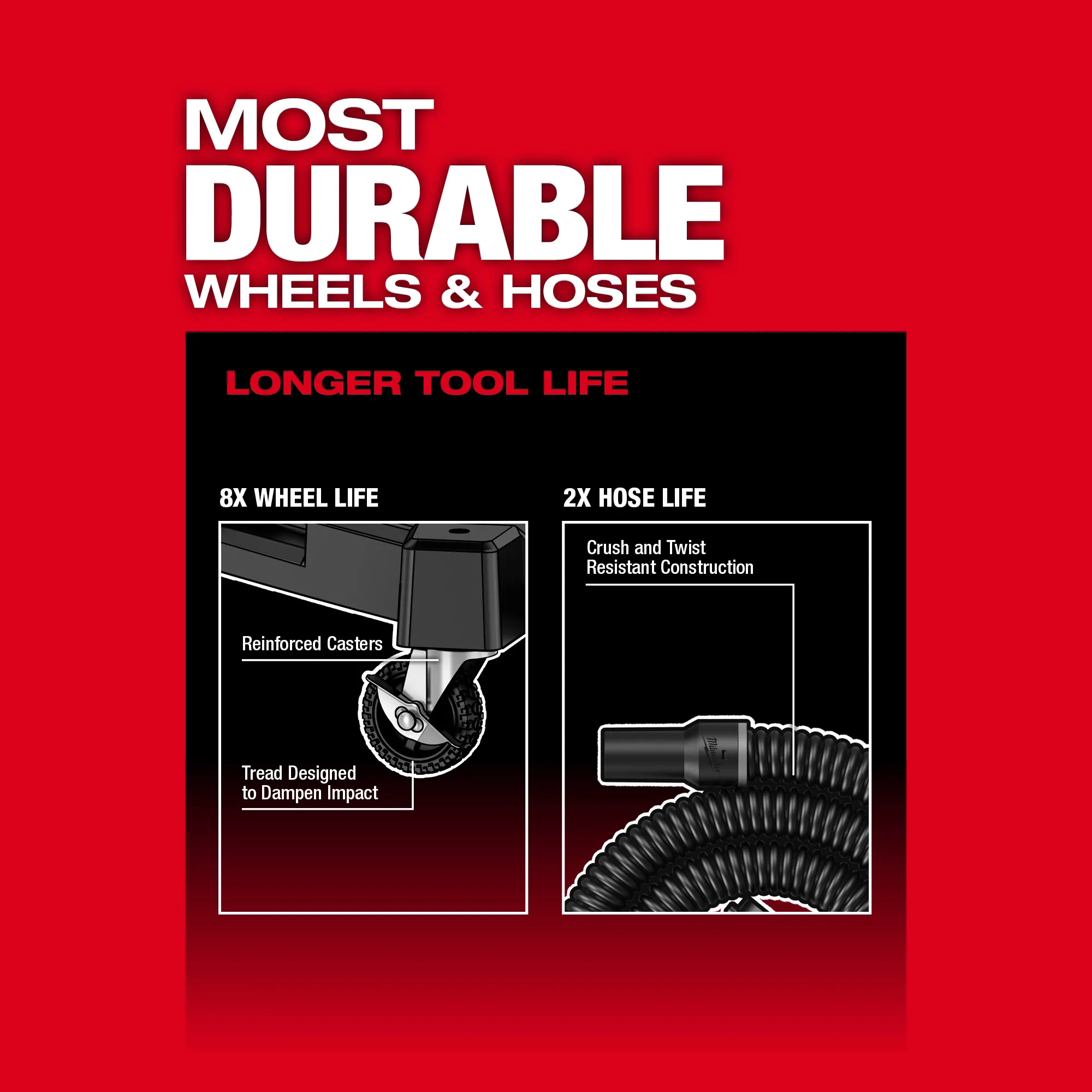

Reinforced casters and tread design deliver up to 8X wheel life
Crush and twist resistant hose construction deliver up to 2X hose life

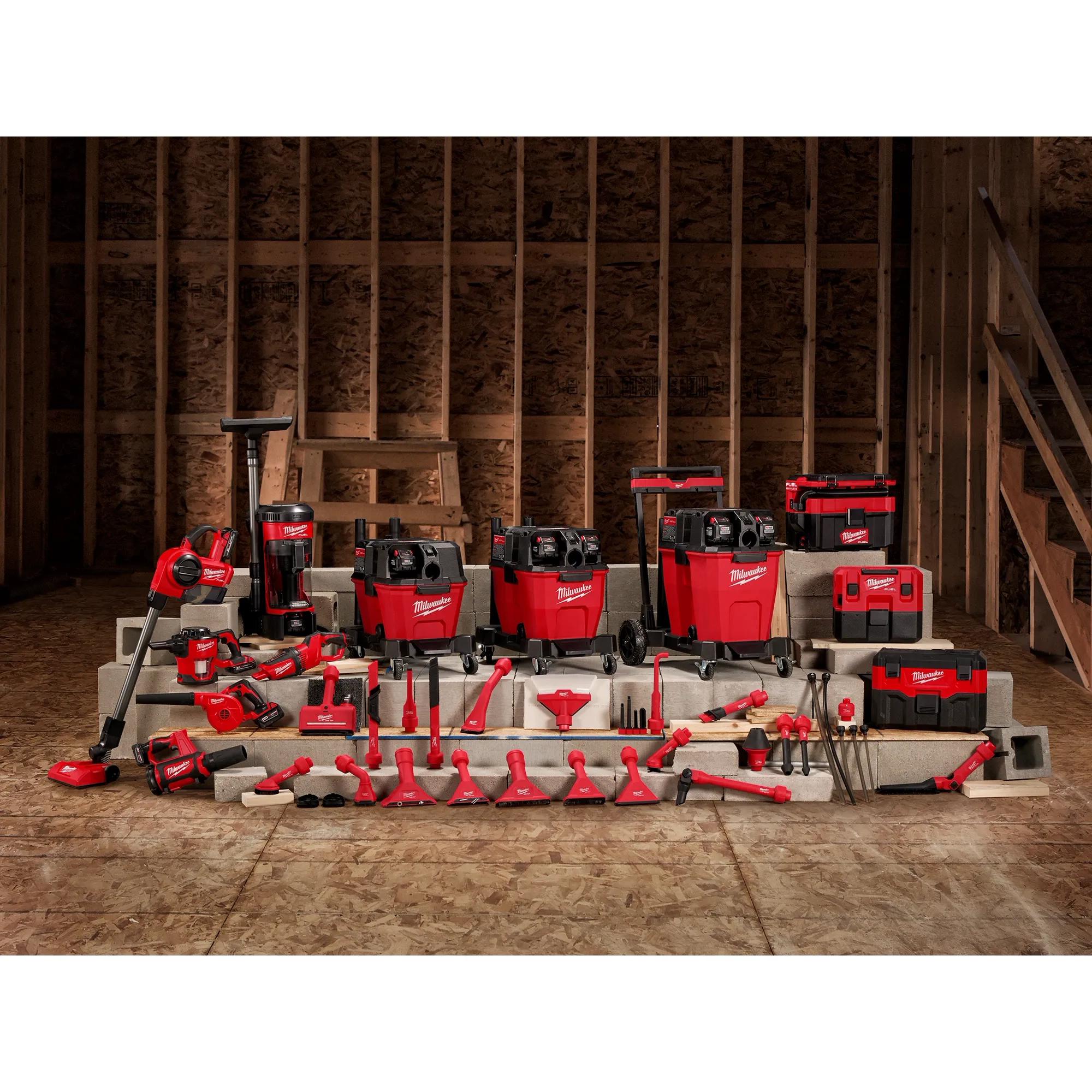

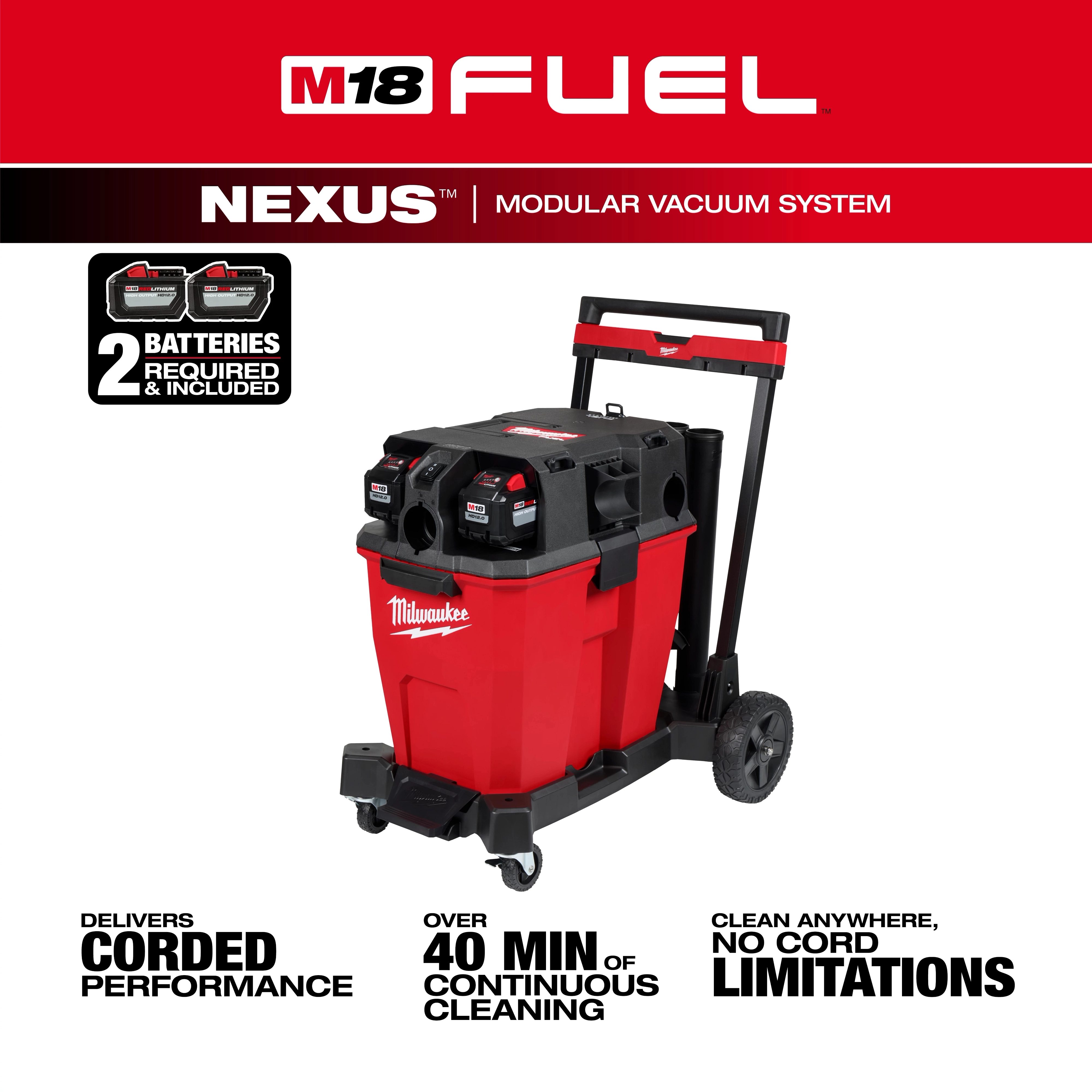

Part of the NEXUS™ Modular Vacuum System: Customize your cleanup experience with interchangeable motor heads for varying power, tanks for holding capacity, carts for mobility, and add-on components to enhance the cleanup experience

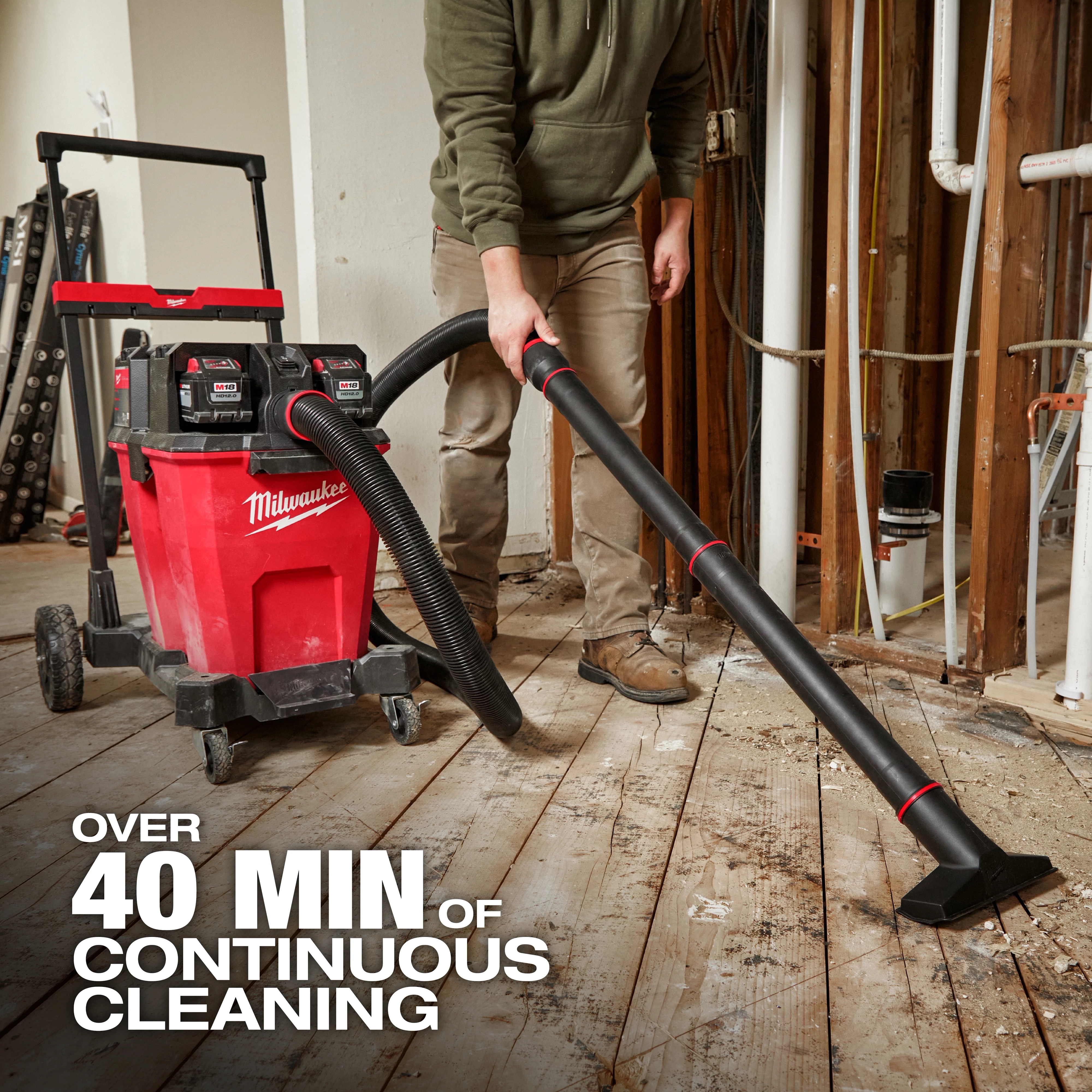

MAX POWER MODE delivers up to 34 minutes of continuous cleaning time, and up to 1,400 ft2 of debris clean up per charge on (2) M18™ REDLITHIUM™ FORGE™ HD12.0 Battery Packs
Requires (2) M18™ REDLITHIUM™ Batteries to operate
Included Premium Wet/Dry Vacuum Cart has large back wheels and a 3 position telescoping/removeable handle
Included Large High Efficiency Filter ensures optimal dust and microparticle collection
Can be used with a MILWAUKEE® Fleece Dust Bag for less debris build up on the filter
(4) latching points on the motor head to store and secure the Vacuum Tool Storage Bag (49-90-2019)
Replacement Large Wet/Dry Vacuum High Efficiency Filter Model Number: 49-90-1978
2-1/2" Hose Diameter

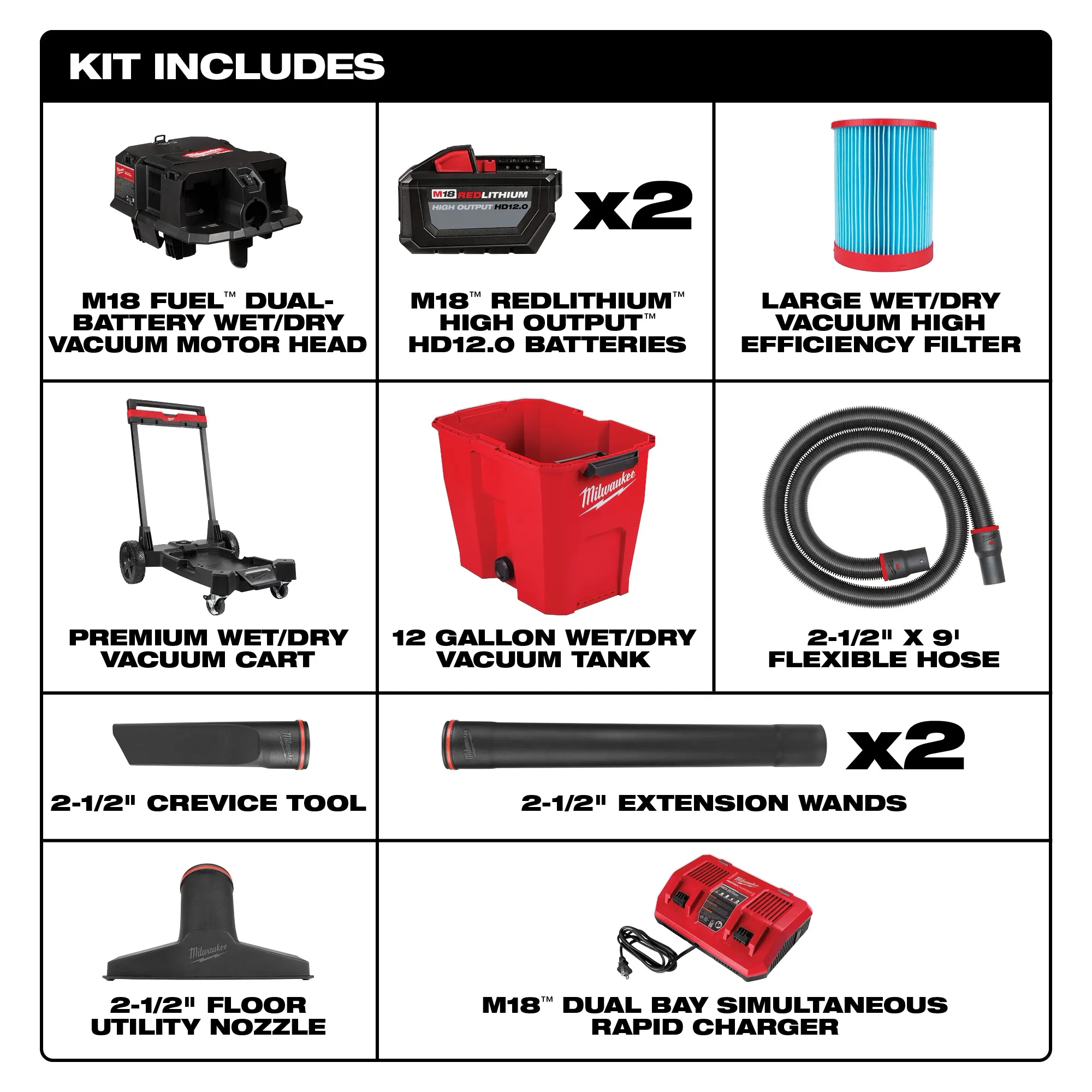

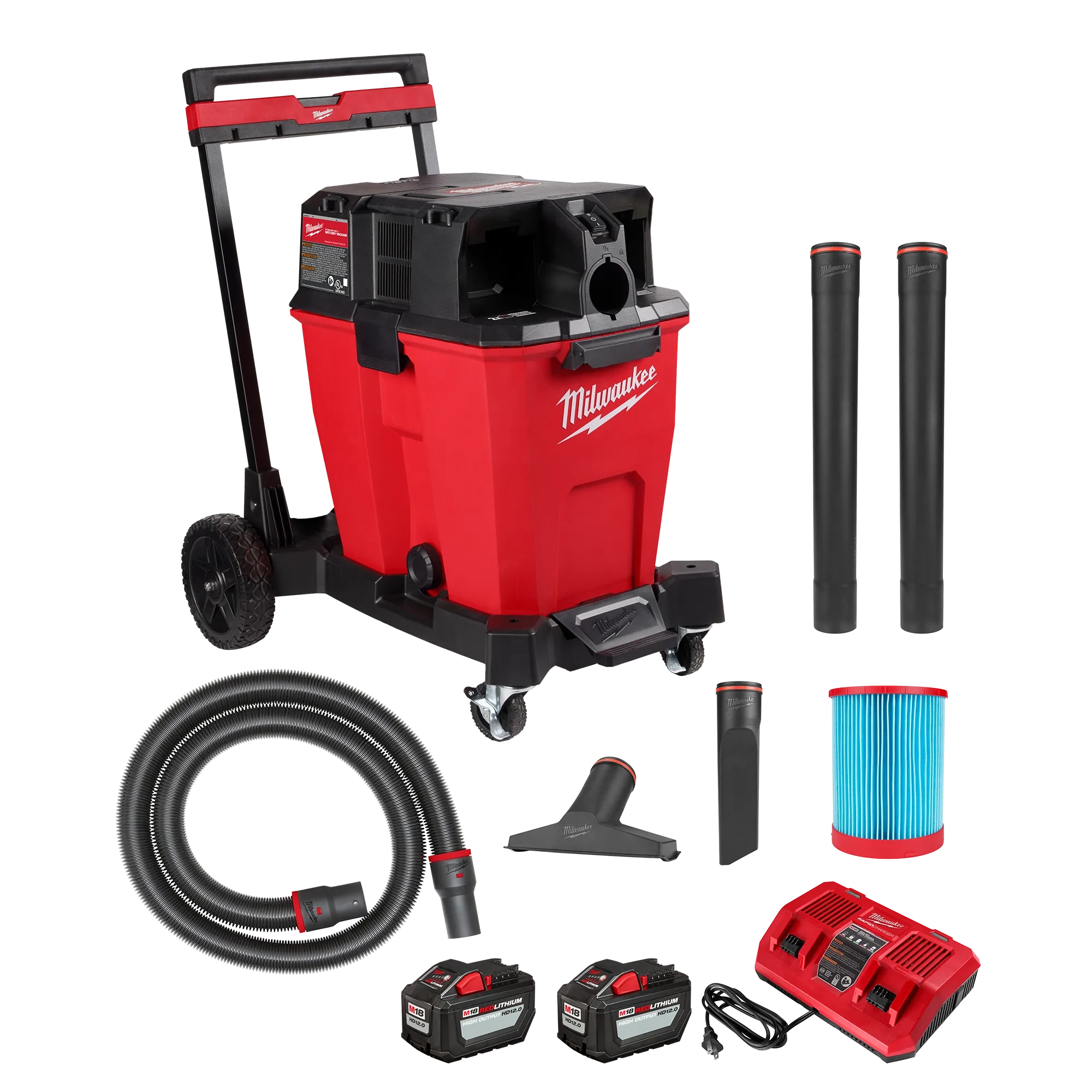

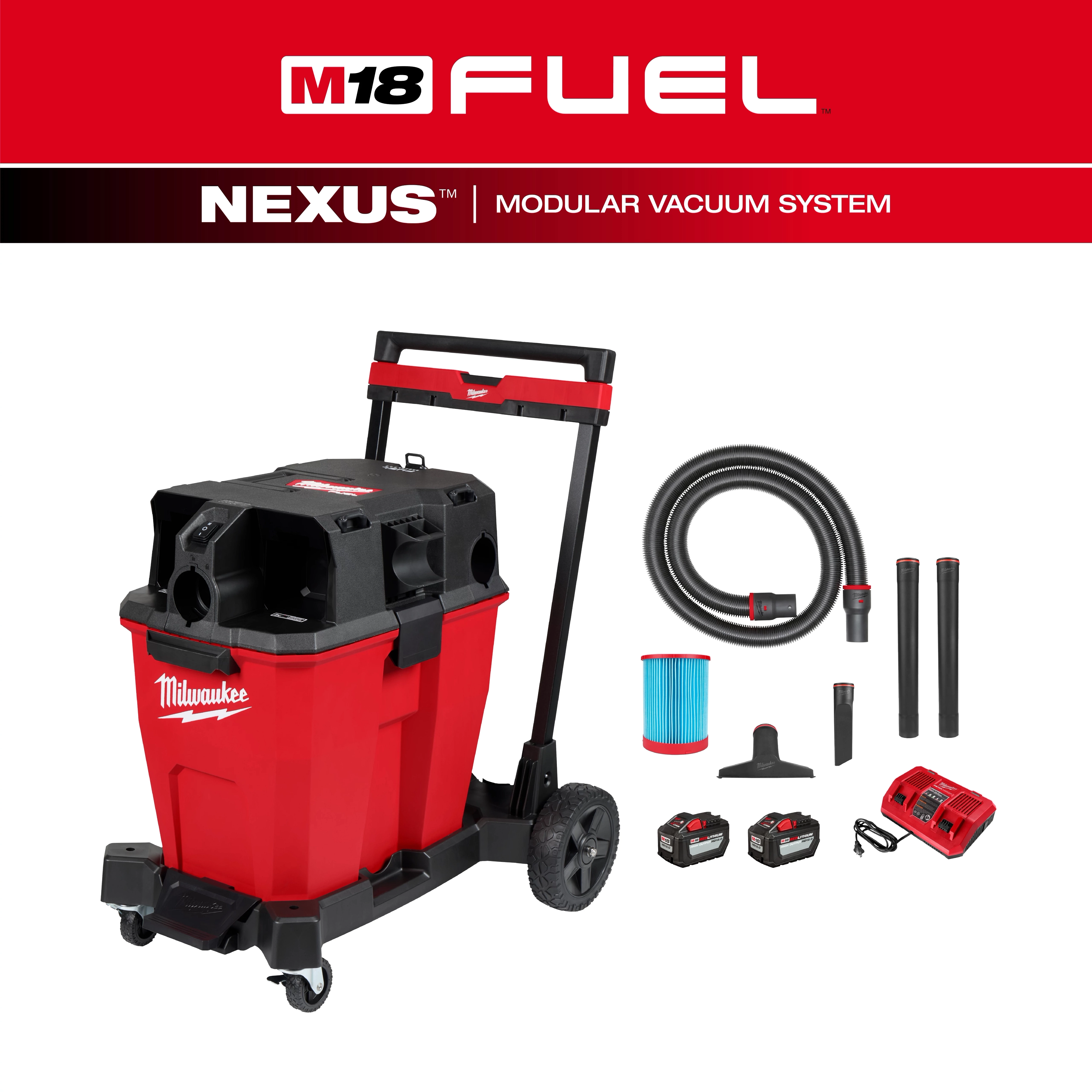

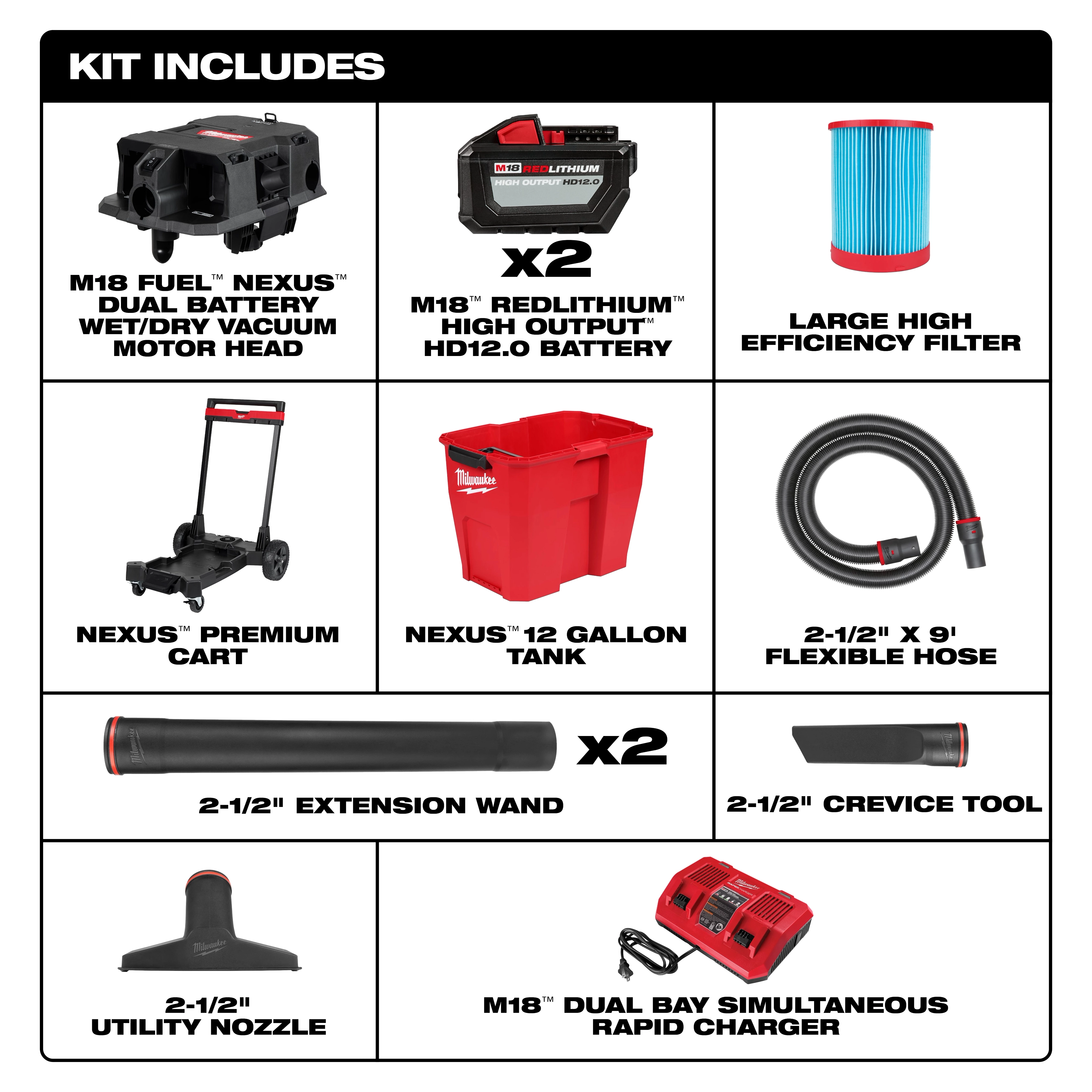

Includes (1) M18 FUEL NEXUS™ Dual-Battery Motor Head, (1) NEXUS™ 12 Gallon Tank, (1) NEXUS™ Premium Cart, (2) M18 XC12.0 Batteries, (1) Charger, (1) High Efficiency Filter, (1) 2-1/2" Hose, (1) Crevice Tool, (1) Utility Nozzle, and (2) Extension Wands
Reviews
Product FAQ
Q:
How do I know if my current wet/dry vacuum is NEXUS™ compatible?
A:
All of our existing medium capacity wet/dry vacuums are compatible, with or without the NEXUS™ branding (0910, 0920, 0930, 0914, 0915, 0926)
Q:
Are the vacuum filters washable?
A:
Yes. They can be rinsed and cleaned with water. This should be a secondary method of cleaning after normal dry-cleaning methods, like tapping it out into a trash can.
Q:
What filter do I use when picking up water?
A:
There are two options during wet applications. You can either remove the filter or use the 49-90-1990 Large Wet/Dry Vacuum Foam Wet Filter. The Foam Wet Filter provides increased protection for the vacuum, allowing water to access the ball float while preventing debris from getting into the motor.
Q:
Does this vacuum have the option for dust bags? Can the dust bags handle water?
A:
Yes, each vacuum is compatible with our fleece dust bags. They should be used with their associated 6, 9, or 12- gallon capacity (49-90-1979, 49-90-1989, 49-90-1999). They are made for dry clean-up applications only, and not for use during water pick up. These dust bags are also not intended to be reusable. When the dust bags get full, they should be disposed in the trash.
Q:
Is the vacuum OSHA compliant in regard to the respirable crystalline silica standard?
A:
Yes, the vacuum is a compliant solution for the OSHA regulation on crystalline silica dust (29 CFR 1926.1153) through objective data only for select applications and durations. Please reference the product webpage for objective data documents and details. Additionally, the NEXUS™ Dedicated Filter Cleaner (0991-20) offers compliance in light concrete applications when used with any of the NEXUS™ Wet/Dry Vacuums.
Q:
What is the hose length?
A:
Each hose is 9FT in length.
Q:
What are the vacuum hose diameters?
A:
0910, 0920, 0914, 0915, 0926 all have 1-7/8” hose diameters and 0930 has a 2-1/2” hose diameter. All hoses can be swapped to each vacuum head.
Q:
Can you use different sized batteries in the Dual-Battery Wet/Dry Vacuums?
A:
Yes, you can. The run-time is dictated by the lowest capacity battery pack.
Q:
What makes the NEXUS™ Modular Vacuum System unique?
A:
The NEXUS Modular Vacuum System allows you to customize your cleanup experience with interchangeable motor heads for varying power, tanks for holding capacity, carts for mobility, and add-on components to enhance the cleanup experience.
