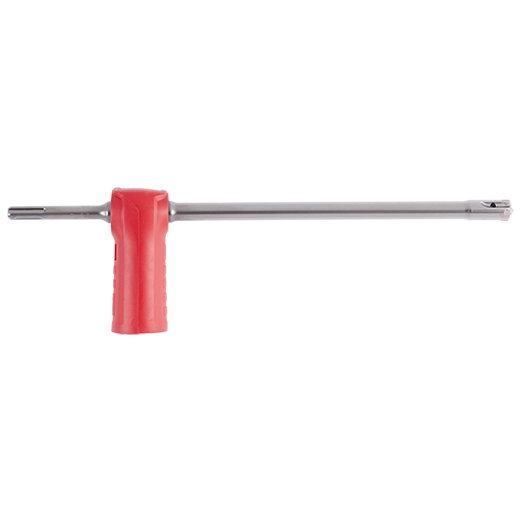

SDS MAX Vacuum Bits

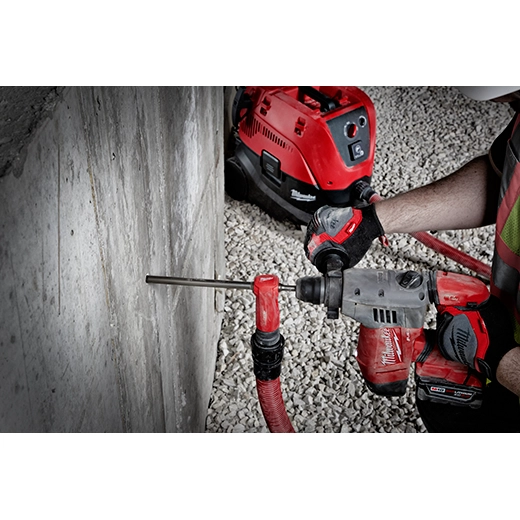

The MILWAUKEE® Vacuum Drill Bits reduce airborne silica dust and provide increased productivity during the chemical anchor preparation process. The combination of dust extraction holes at the bit tip and the hollow shaft design allow dust to be removed through the bit while drilling holes, reducing airborne silica dust in the process. MILWAUKEE® Vacuum Drill Bits are an OSHA® Table 1 compliant solution when used with dust extraction vacuums. Additionally, Vacuum Drill Bits leave clean holes which are ready for the chemical anchor installation, removing the need to use standard drill bits with the “blow-brush-blow” cleaning method, delivering up to 2x faster chemical anchor preparation. The 4-Cutter tip design delivers durability in concrete and concrete with rebar applications. The universal adapter fits most common dust extractor attachments.
8960-20 - SDS Vacuum Bit

SDS MAX Vacuum Bits

Features / SpecsRefine OptionsReviews
OSHA Table 1 compliant drilling solution for the regulation on respirable crystalline silica dust (29 CFR 1926.1153)
Dust extraction holes remove dust from the hole while drilling
Up to 2x faster chemical anchor preparation due creating a clean hole while drilling
4-cutter carbide tip for long life in concrete and concrete with rebar applications
Universal adapter fits most common dust extractor vacuums
Replacement adapter available (48-20-2100)
ANSI specificed to fit common anchors

Product Specifications

Length
1



You May Also Like...

Diameter

1"

1-1/8"

1-3/8"

3/4"

5/8"

7/8"

Useable Length

15-3/4"

17-1/2"

27-1/2"

Length

23-1/2"

25-1/4"

35"

6.25"

SKU
Group
Diameter
Useable Length
Length
48-20-2150
SDS MAX Vacuum Bits Adapter
6.25"
48-20-2152
SDS MAX Vacuum Bits
5/8"
15-3/4"
23-1/2"
48-20-2156
SDS MAX Vacuum Bits
3/4"
15-3/4"
23-1/2"
48-20-2160
SDS MAX Vacuum Bits
7/8"
15-3/4"
23-1/2"
48-20-2164
SDS MAX Vacuum Bits
1"
17-1/2"
25-1/4"
48-20-2168
SDS MAX Vacuum Bits
1-1/8"
27-1/2"
35"
48-20-2172
SDS MAX Vacuum Bits
1-3/8"
27-1/2"
35"
