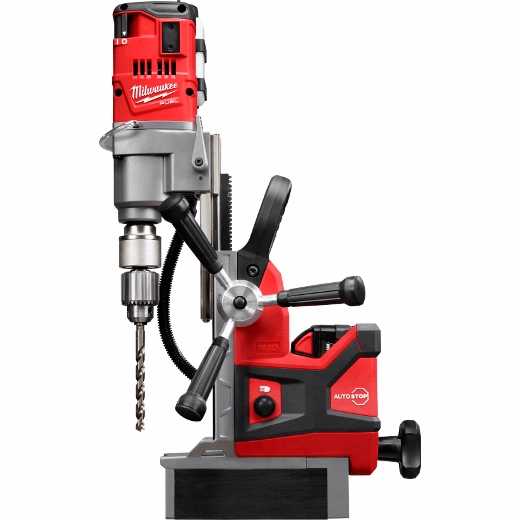

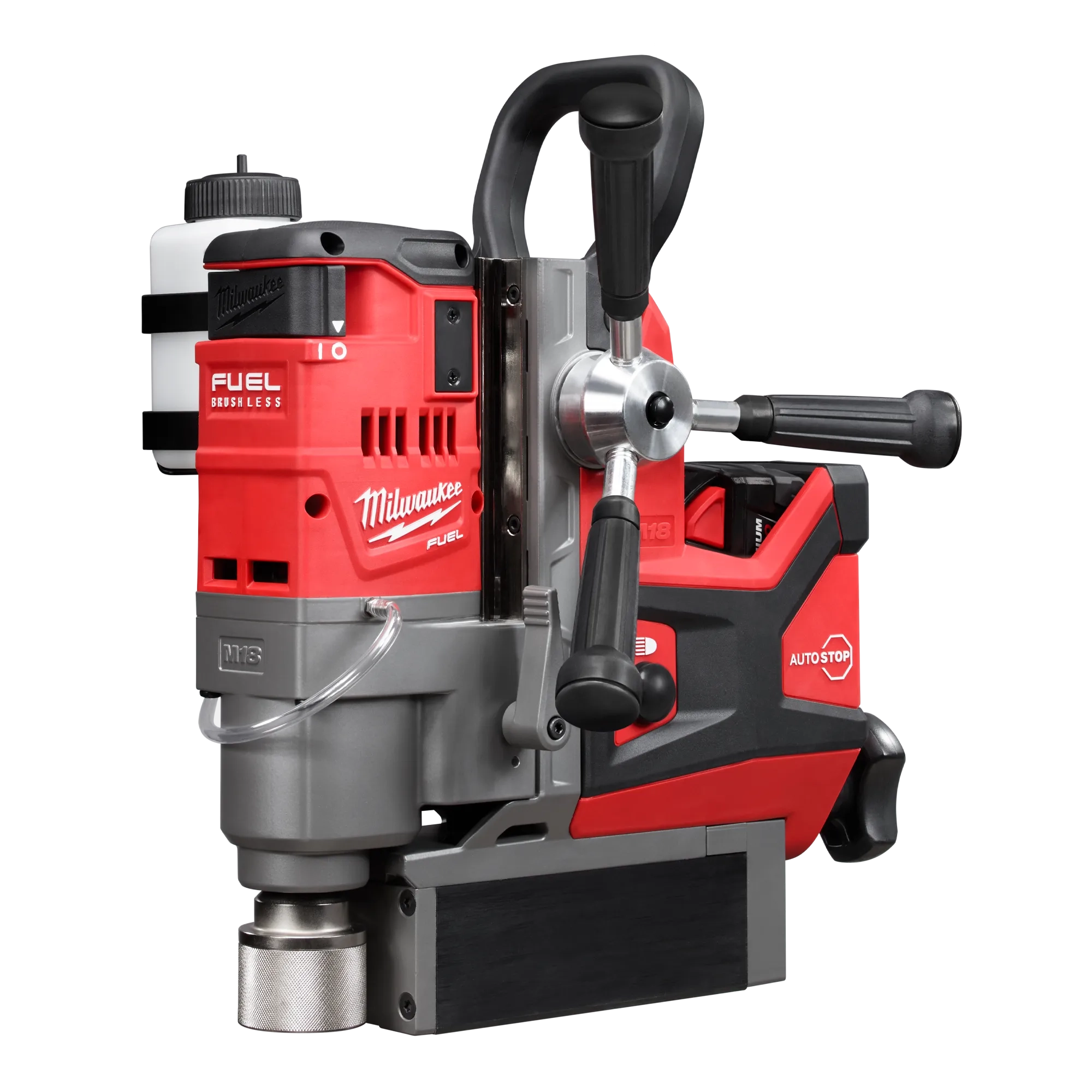

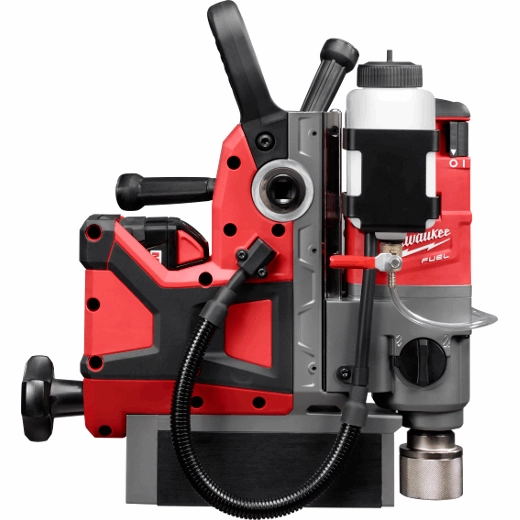

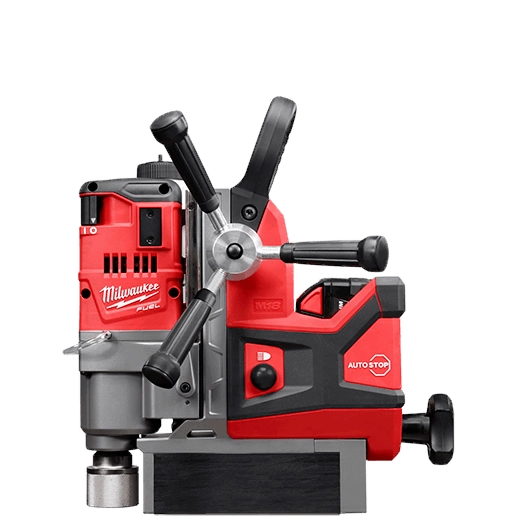

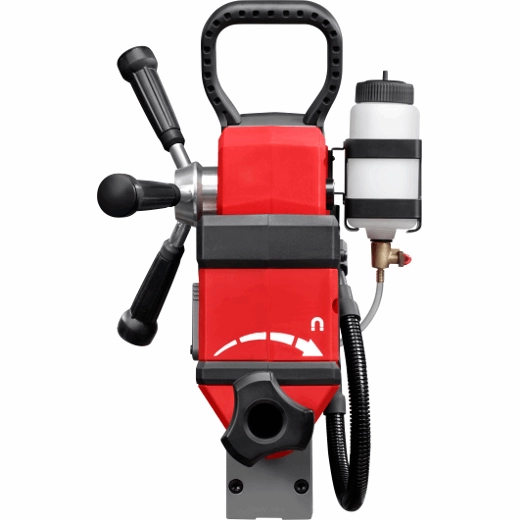

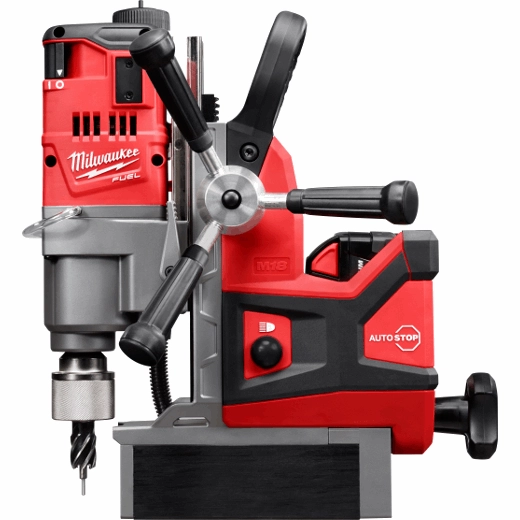

M18 FUEL™ 1-1/2" Magnetic Drill Kit

The M18 FUEL™ 1-1/2” Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4” steel providing a safer drilling environment in this material, and drills over (40) 13/16” holes per charge.The M18 FUEL™ 1-1/2” Magnetic Drill delivers safer drilling on ¼” steel by providing the industry’s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling.Powered by a Milwaukee POWERSTATE™ Brushless Motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2” annular cutter capacity. REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. REDLITHIUM™ XC5.0 batteries provide over (40) 13/16” holes in ¼” steel, while delivering the most durable pack construction on the market, and over 2X more recharges than the leading competitor.
This product is no longer available. Feel free to contact us for suggestions of other products that may fit your needs. Contact Us

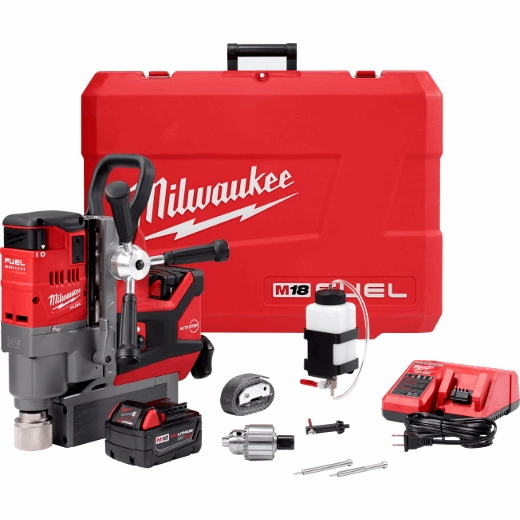

M18 FUEL™ 1-1/2" Magnetic Drill Kit

Key FeaturesSpecifications
POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
REDLINK PLUS™ Intelligence Provides optimized performance and overload protection using total system communication between tool, battery and charger.
REDLITHIUM™ XC5.0 Battery Pack: Provides superior pack construction, more work per charge and more work over the life of the pack than competitive batteries.
Self-Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force
1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity
2 Speed Gear Box: 400/690 RPM
Stroke Length: 5-3/4"
Motor Head Adjustment: 5-1/8"

You May Also Like...

Product Specifications

Chuck Type
All Metal
Hammer Function
No
Chuck Size
1-1/2"
Tool Warranty
5 Year Limited Warranty
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Length
13.8 in
Weight
30.9 lbs
Height
15.5 in
Width
7-1/2"
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
Maximum RPM
690
RPM Range
400 / 690
