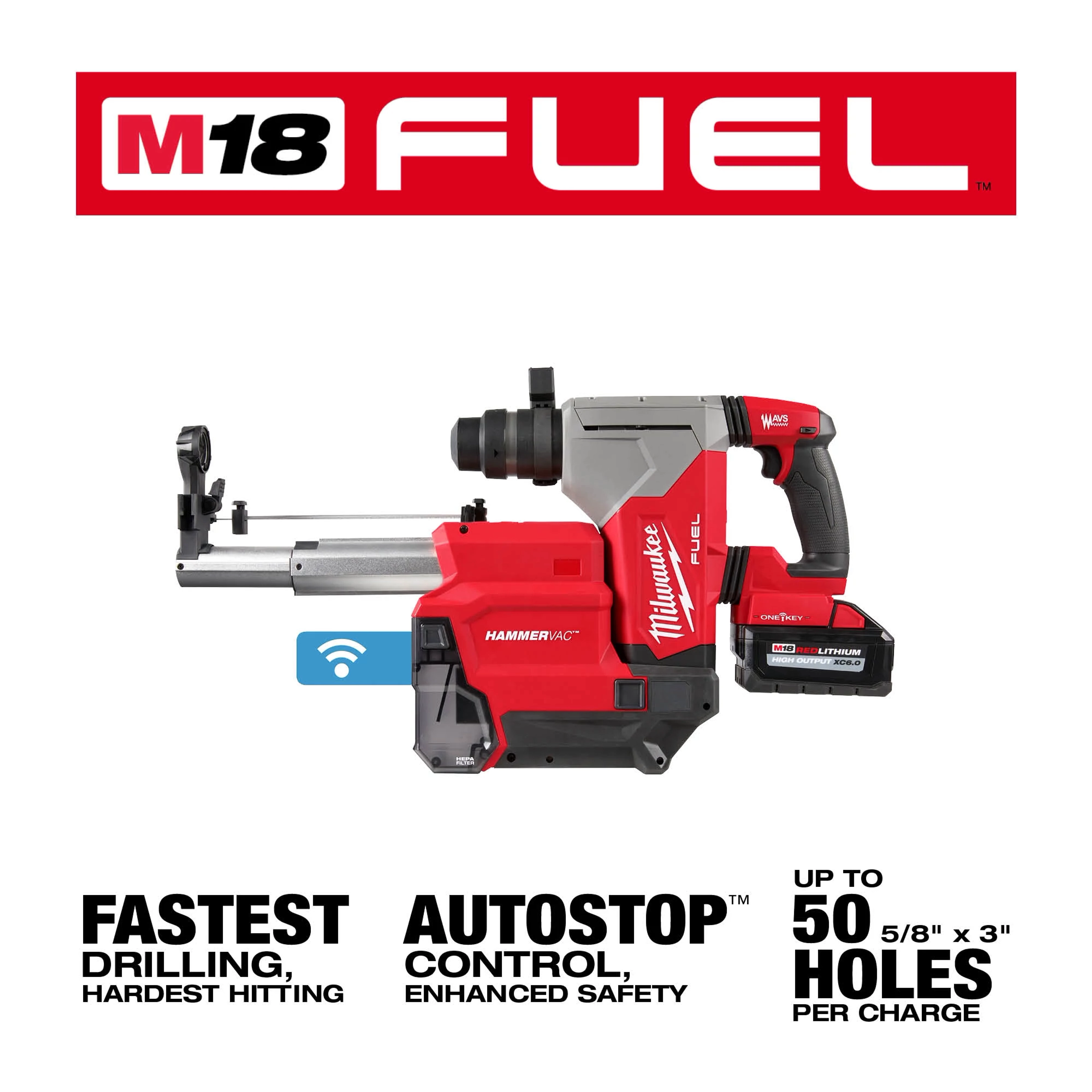

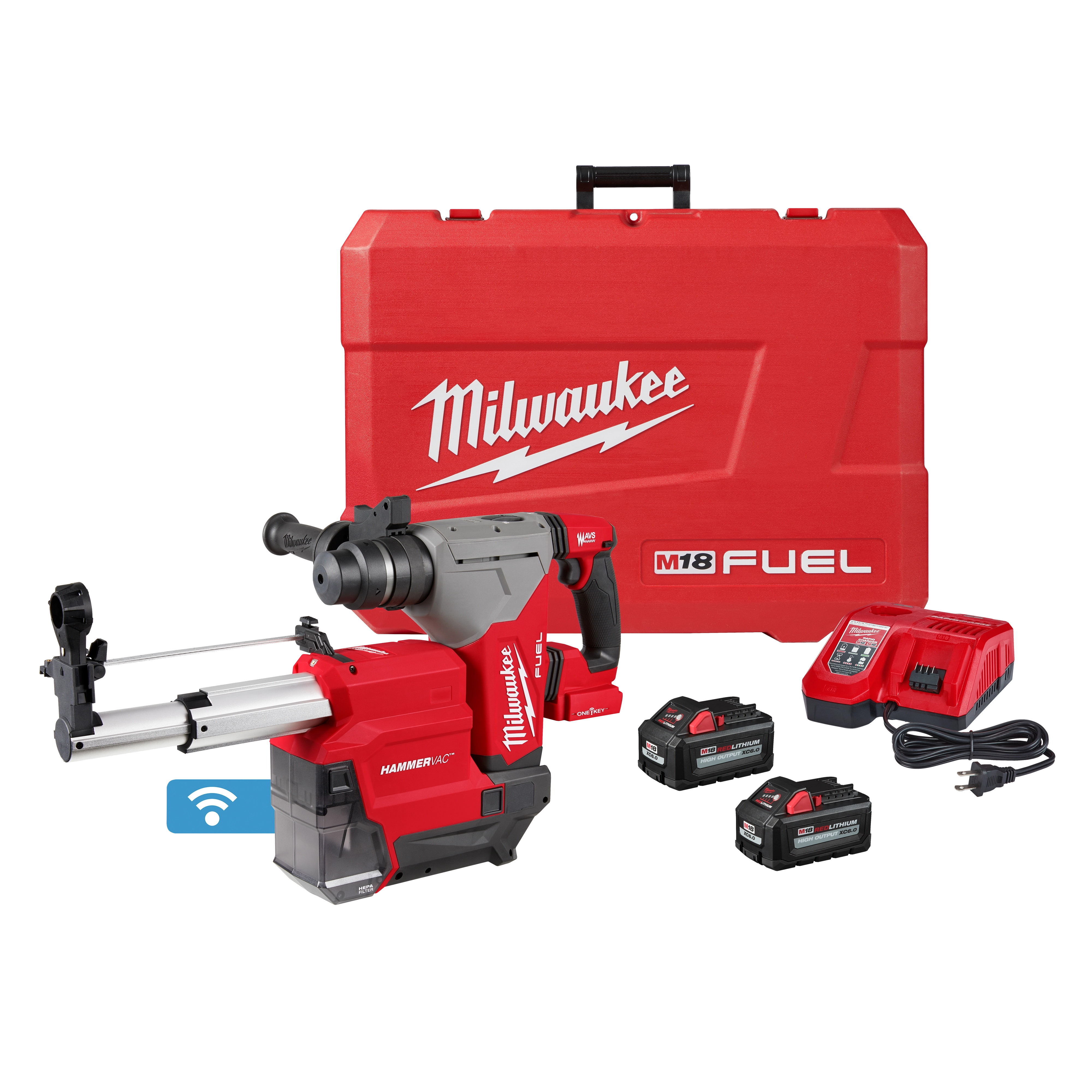

M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit

Our M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit is the next generation of cordless rotary hammers, delivering you ultimate jobsite performance and productivity. The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer is the fastest drilling and hardest-hitting rotary hammer in its class with AUTOSTOP™ Control for enhanced safety, drilling up to 50 5/8" x 3" holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. This cordless hammer drill provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. The MILWAUKEE® M18 FUEL™ HAMMERVAC™ 1-1/8" Dedicated Dust Extractor features an inline design engineered to connect directly to and be power by the M18 FUEL™ 1-1/8” SDS Plus Rotary Hammer. Utilizing the same replaceable certified HEPA filter as other HAMMERVACS™, which filters 99.97% of all particles greater than 0.3µm, means more compatibility on the jobsite. The built-in adjustable depth stop and ruler offer easy and precise adjustments. This dust extractor has OSHA Table One Compliance for respirable crystalline silica when drilling up to 1-1/8" in diameter and 8" in depth. This extractor features AUTOPULSE™ Filter Cleaning Mechanism that automatically cleans the filter after each use. The dust box comes equipped with a vacuum port for suctioning out the dust with a large vacuum or dust extractor instead of dumping the dust out into a trash receptacle.

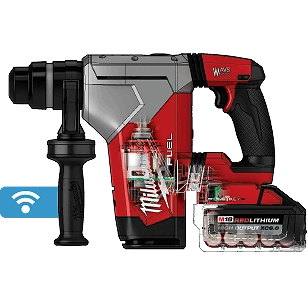

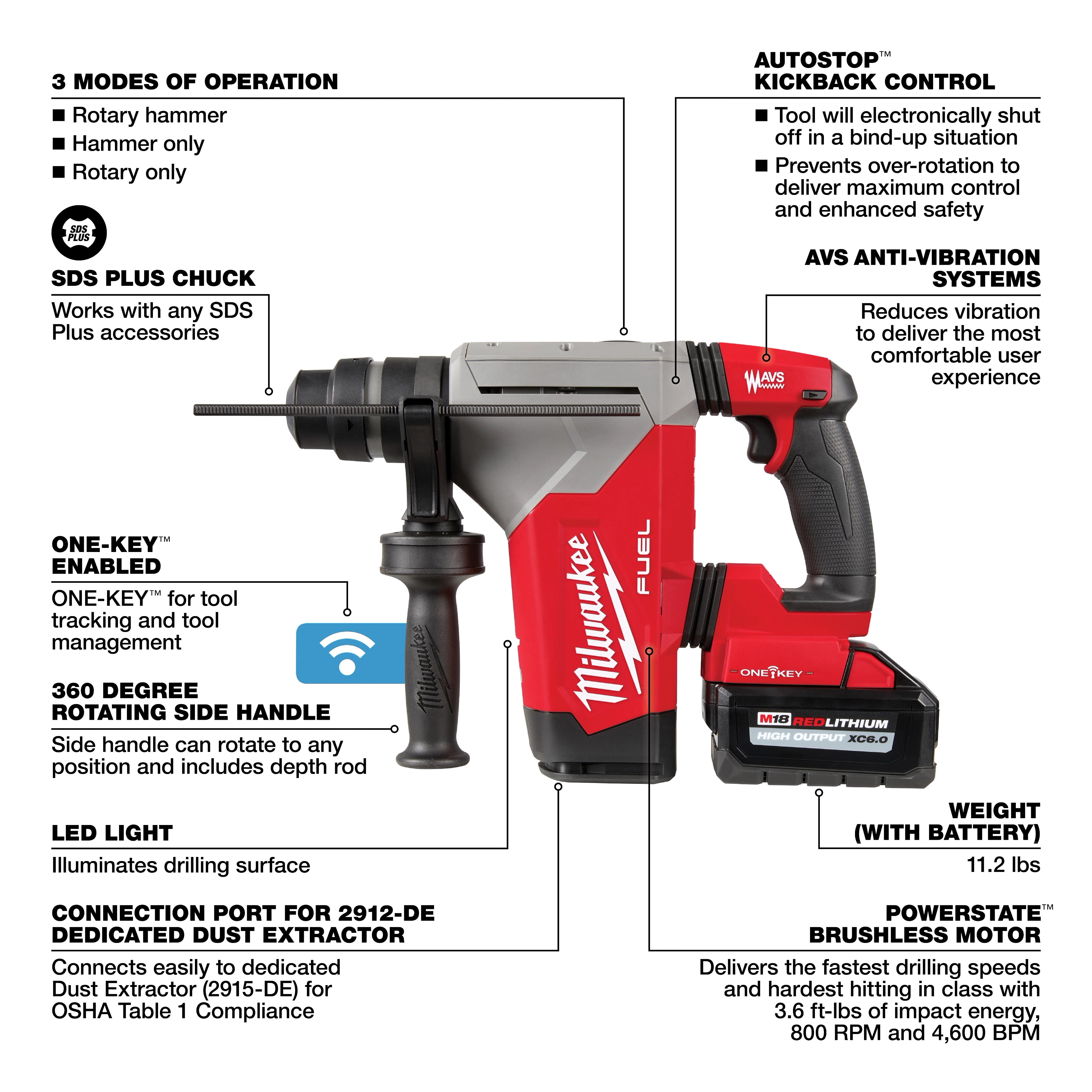

M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer Primary Image

M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit

Key FeaturesSpecificationsReviews

1-1/8" SDS PLUS ROTARY HAMMER
W/ ONE-KEY™

FASTESTDRILLING,HARDEST HITTING
AUTOSTOP™CONTROL,ENHANCED SAFETY
UP TO50 5/8" x 3"HOLESPER CHARGE
Cycle Arrow
3
1
2

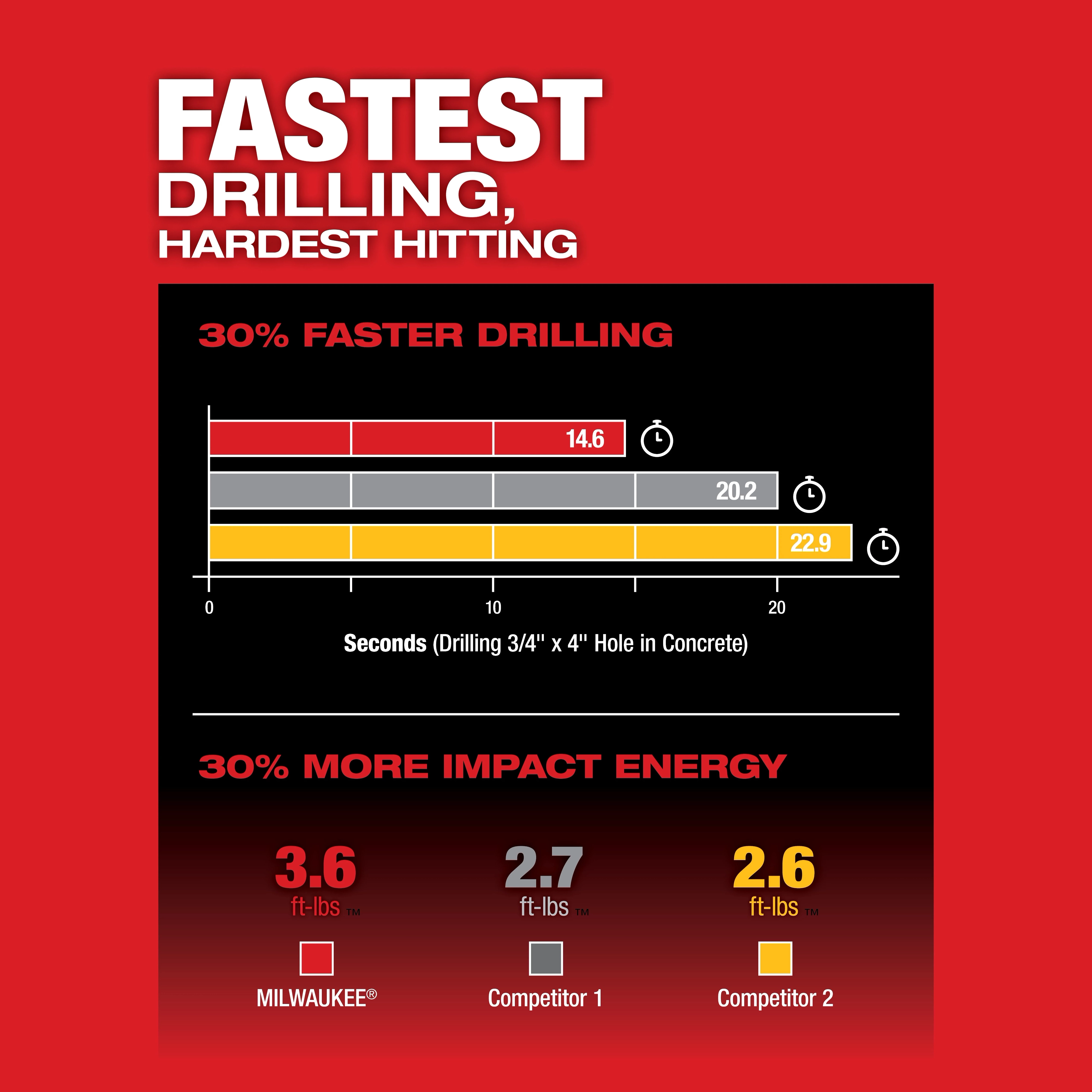

FASTEST DRILLING, HARDEST HITTING

  • The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ is faster drilling and harder hitting than both corded and cordless 1-1/8" rotary hammers leading to increased productivity.

AUTOSTOP™ CONTROL, ENHANCED SAFETY

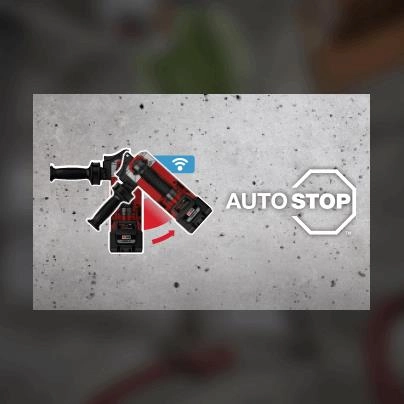

  • AUTOSTOP™ Kickback Control prevents over-rotation by stopping the hammer if it binds up during drilling when hitting rebar or hard aggregate.

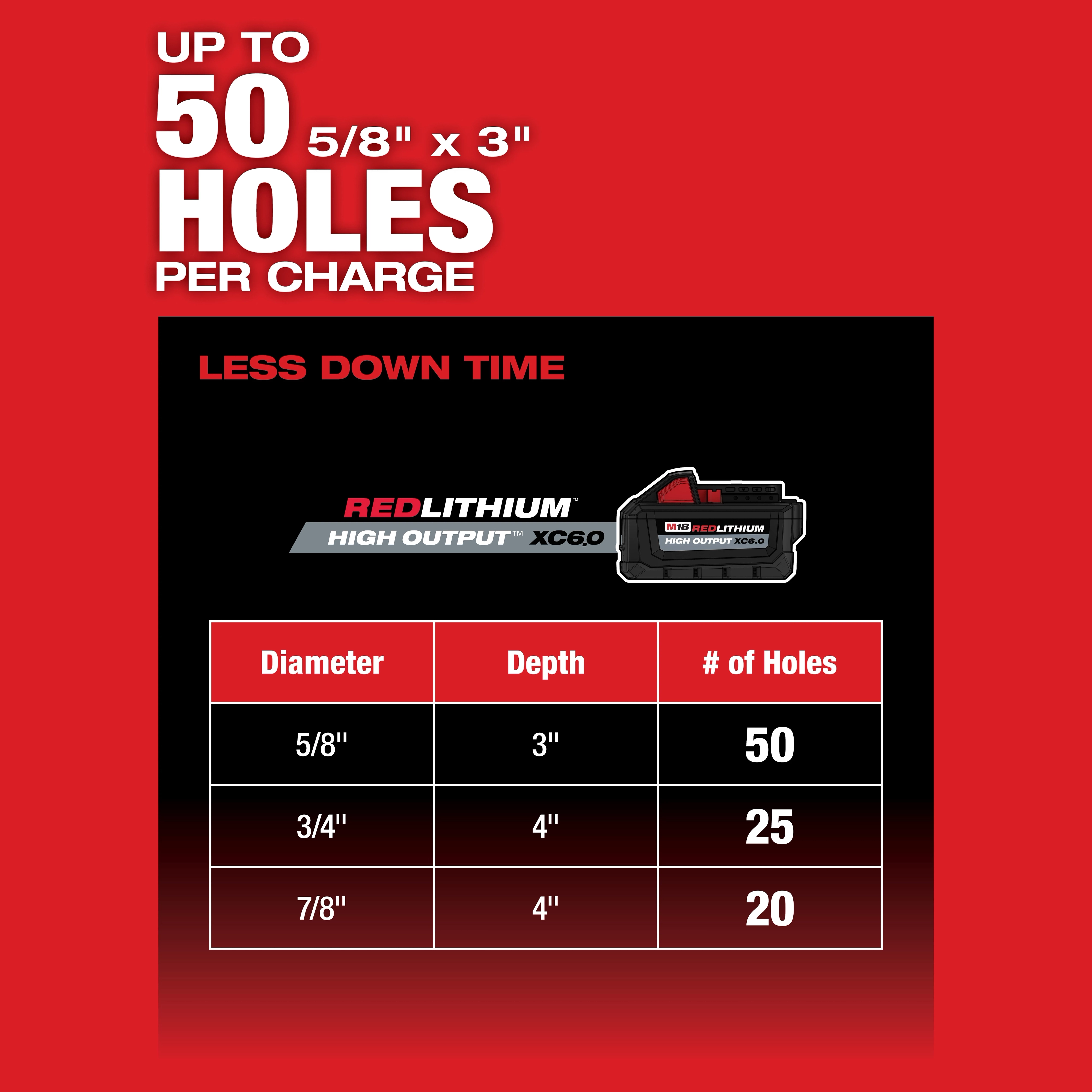

UP TO 50 5/8” X 3” HOLES PER CHARGE

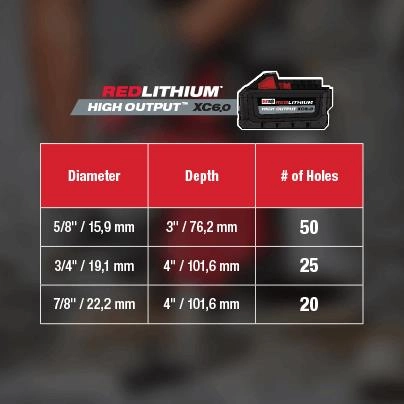

  • With the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery this hammer can deliver up to (50) 5/8" x 3" holes per charge.
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
3.6 ft-lbs Impact Energy
ONE-KEY™ technology allows for tracking, tool security, and inventory management
AVS Anti-Vibration System: Minimizes vibration for maximum comfort
3 Mode: Rotary Hammer, Hammer Only, Rotary Only

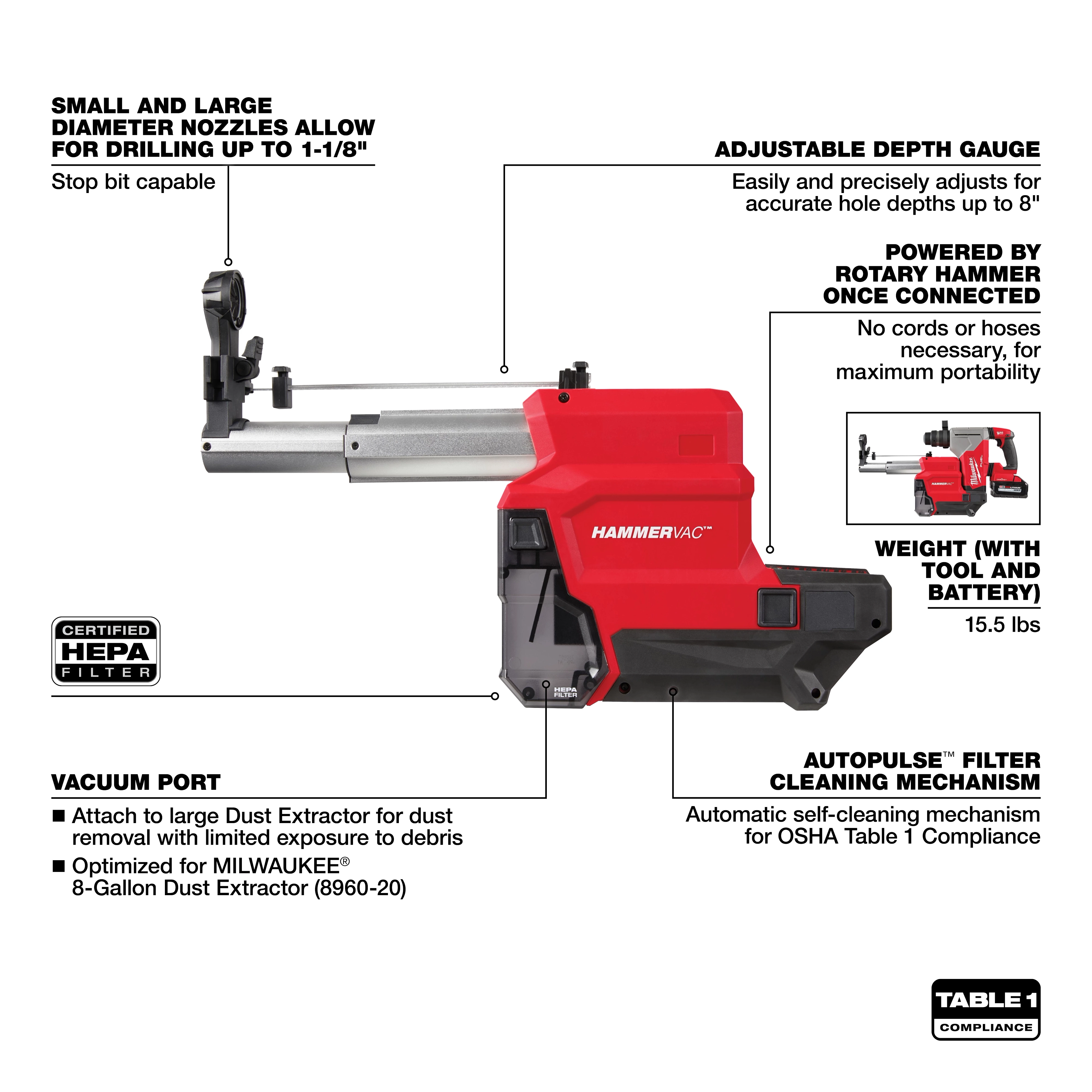

Includes M18 HAMMERVAC 1-1/8" Dedicated Dust Extractor
AUTOPULSE Filter Cleaning Mechanism cleans the dust extractor filter automatically after use
OSHA Table 1 Compliant Solution
Dust Extractor Capacity: Up to 1-1/8" in Diameter and Up to 8" in Depth
800 RPM and 4,600 BPM

You May Also Like...

Product Specifications

Rotary Hammer Size
1-1/8
Tool Warranty
5 Year (Tool), 3 Years (Battery)
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Handle Type
Drop Motor
Material Composition
Metal
Length
15.2 in
Weight
15.5 lb
Height
10.2 in
Width
3.4 in
Badge Branding
FUEL™
No Load Speed
800 RPM
Blow Energy
3.6 ft-lbs
BPM
0-4600
Solid Bit Capacity
1-1/8"
Thin Wall Core Bit Capacity
3"
Drilling Mode
3-Mode: Rotary Hammer, Hammer Only, Rotation Only`
Vibration
AVS™ Anti-Vibration System
OneKey Compatible
Yes
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
Chuck Type
SDS Plus
Chuck Size
1-1/8
Dust Extractor Included
Yes
Maximum RPM
800 rpm
