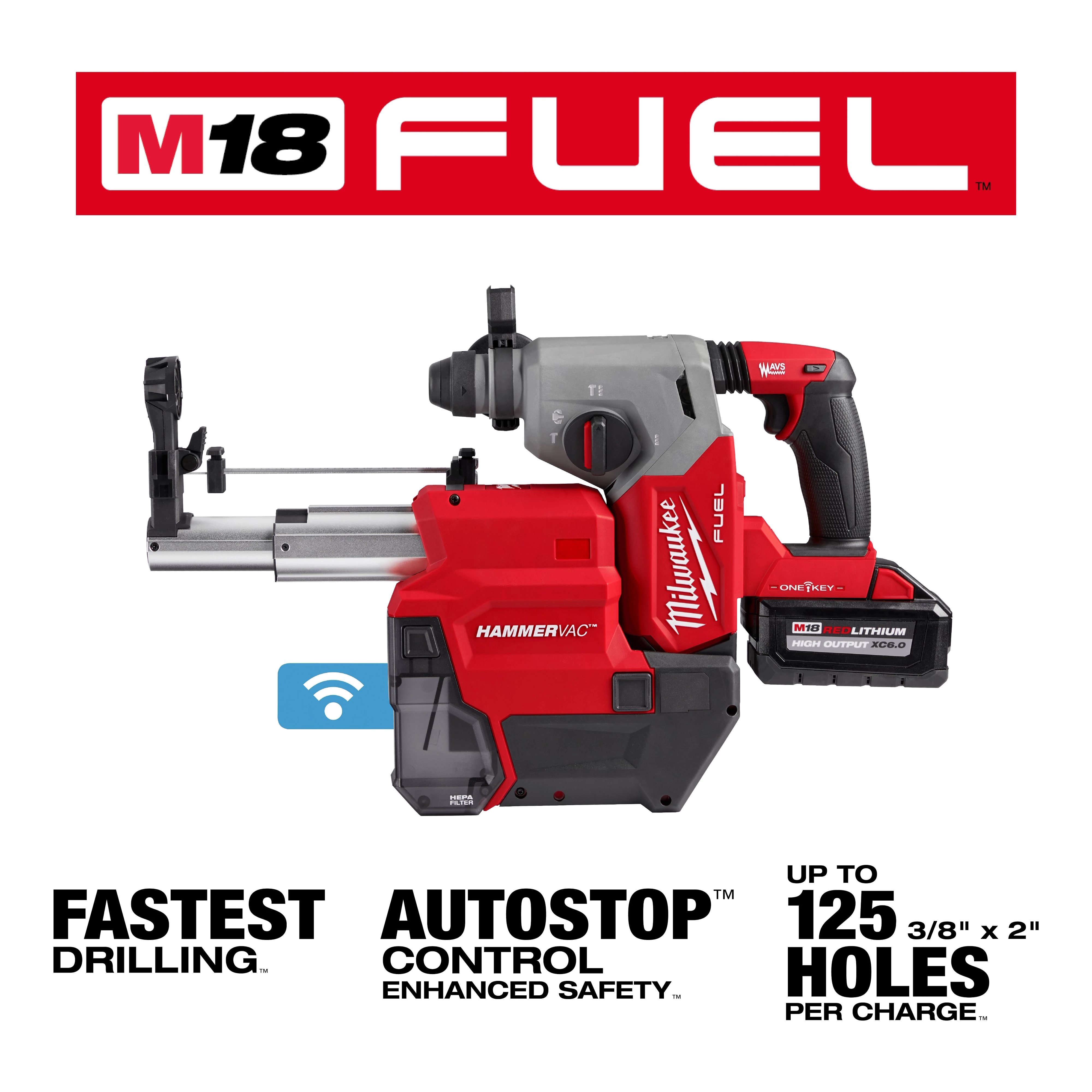

M18 FUEL™ 1" SDS Plus Rotary Hammer w/ ONE-KEY™ Dust Extractor Kit

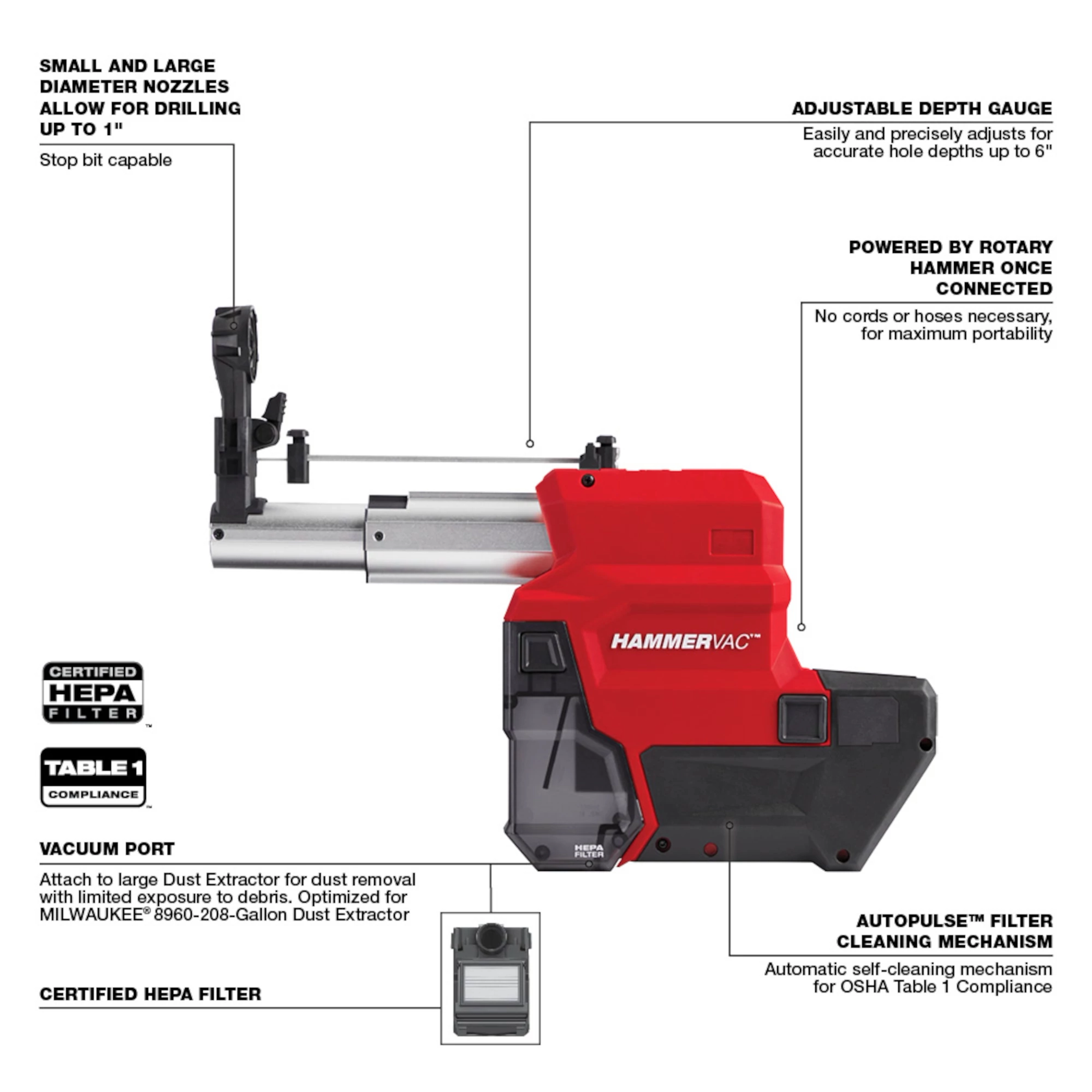

Our M18 FUEL™ 1" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit is the next generation of cordless rotary hammer drills, delivering ultimate jobsite performance. The M18 FUEL™ 1” SDS Plus Rotary Hammer is the fastest drilling rotary hammer in its class, includes AUTOSTOP™ Control for enhanced safety and drills up to (125) 3/8” x 2” holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. The POWERSTATE™ Brushless Motor delivers 2 ft-lbs of impact energy, 1,330 RPM and 4,800 BPM, providing speed and power in the most demanding applications. It has enhanced safety with the AUTOSTOP™ Kickback Control preventing over-rotation. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s performance and location. Our M18 FUEL™ HAMMERVAC™ 1” Dedicated Dust Extractor is engineered to connect directly and powered by the M18 FUEL™ 1” SDS Plus Rotary Hammer. Utilizing the same replaceable certified HEPA filter as other HAMMERVACS™, which filters 99.97% of all particles greater than 0.3µm, means more compatibility on the jobsite. The built-in adjustable depth stop and ruler offer easy and precise adjustments. The dust extractor allows full OSHA Table One Compliance when drilling up to 1” in diameter and 6” in depth. This extractor features AUTOPULSE™ Filter Cleaning Mechanism that automatically cleans the filter after each use. The dust box comes with a vacuum port to suction out dust with a large vacuum or dust extractor.

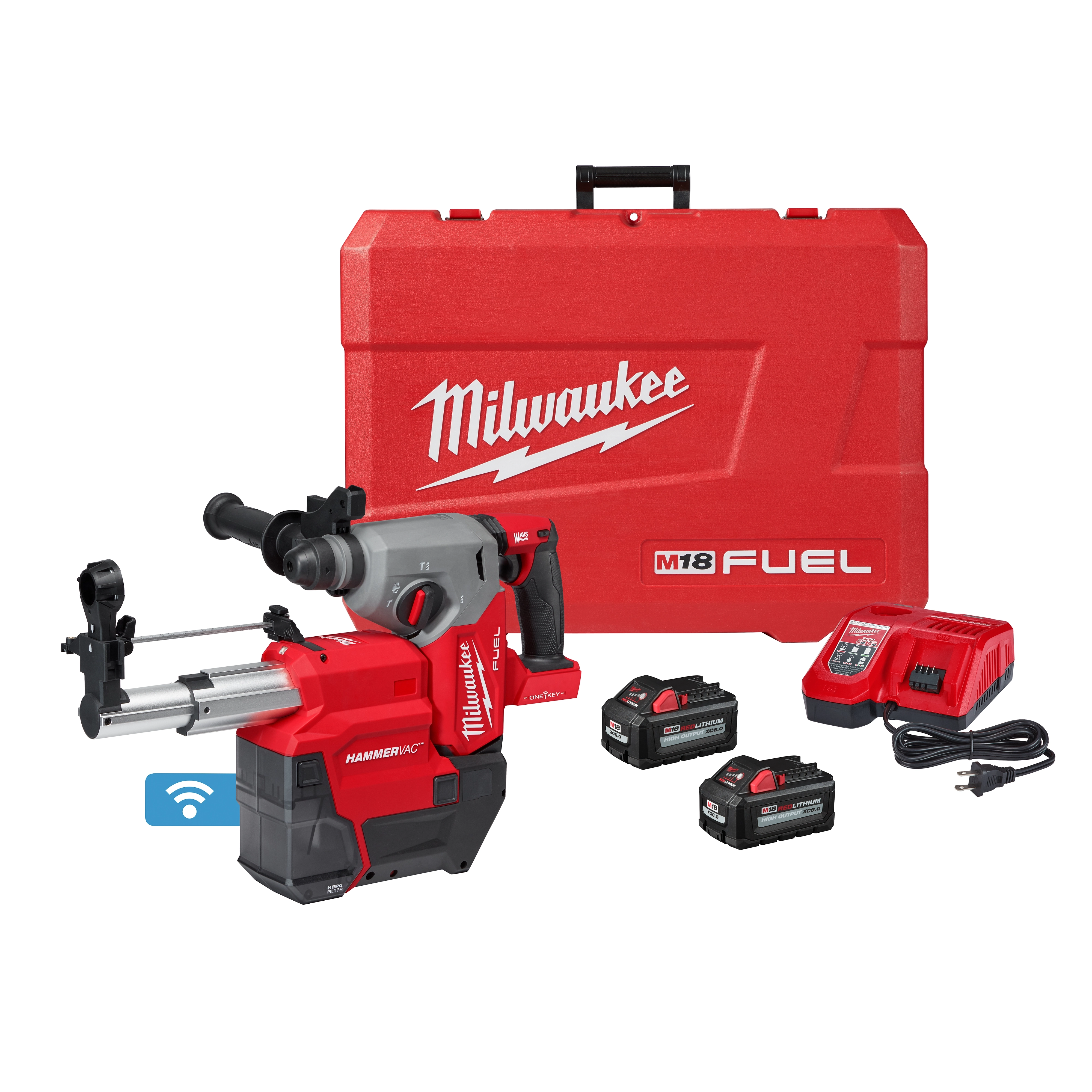

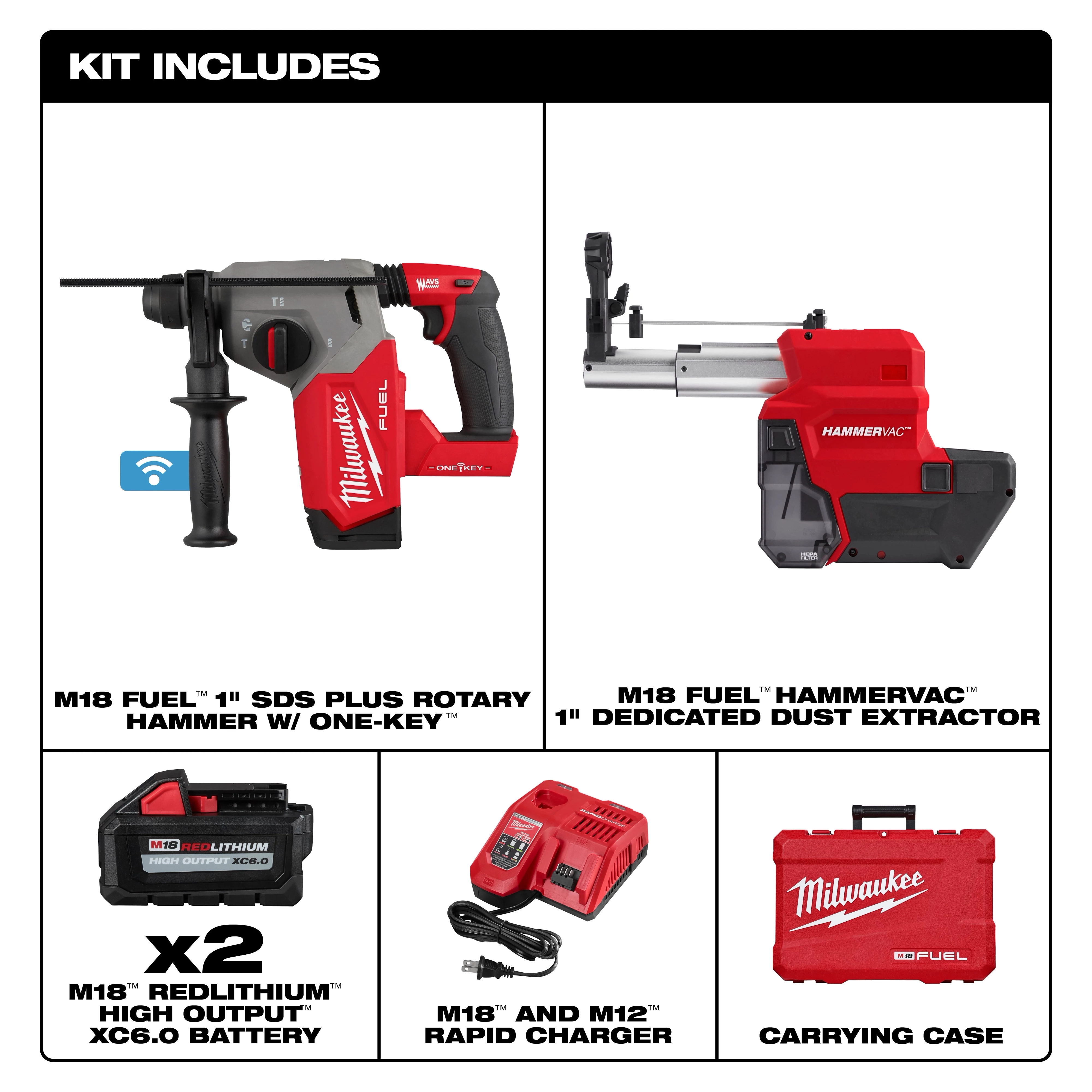

Includes

(1) M18 FUEL™ 1” SDS Plus Rotary Hammer w/ ONE-KEY™ (2914-20)
(2) M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack(48-11-1865)(1) M18™ & M12™ Rapid Charger(48-59-1808)
(1) Side Handle w/ Depth Gauge
(1) Large Diameter Nozzle
(1) Small Diameter Nozzle
(1) Carrying Case
The Milwaukee M18 FUEL™ 1" SDS Plus Rotary Hammer with ONE-KEY™ Dust Extractor Kit

M18 FUEL™ 1" SDS Plus Rotary Hammer w/ ONE-KEY™ Dust Extractor Kit

Key FeaturesSpecificationsReviews

1” SDS Plus Rotary Hammer
w/ One-Key™

FastestDrilling
Autostop™ControlEnhanced Safety
Up To125 3/8" x 2"HolesPer Charge
Cycle Arrow
1
2
3
Click a Number for Details

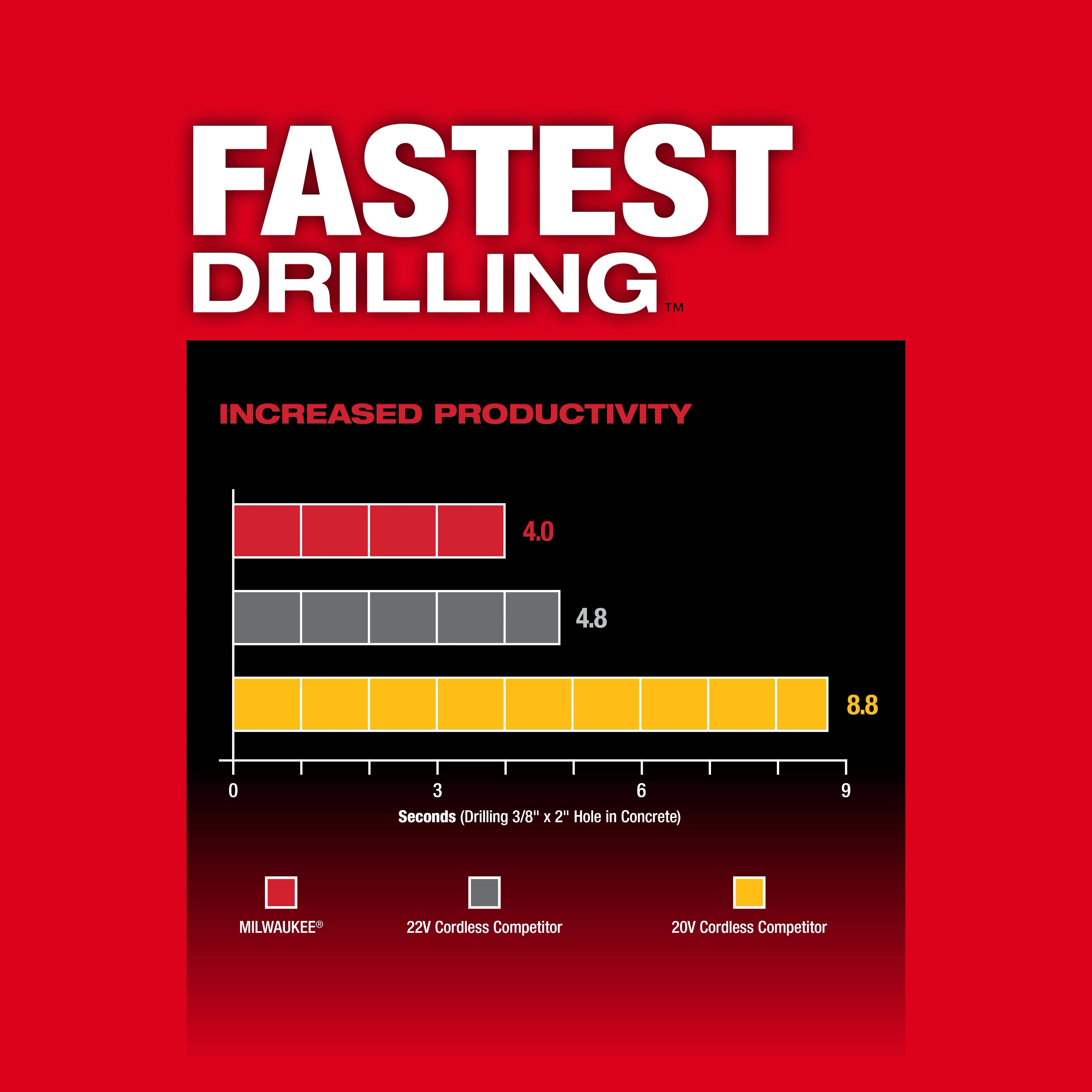

FASTEST DRILLING

  • The M18 FUEL™ 1” SDS Plus Rotary Hammer w/ ONE-KEY™ is faster drilling than both corded and cordless 1" rotary hammers leading to increased productivity.

AUTOSTOP™ CONTROL, ENHANCED SAFETY

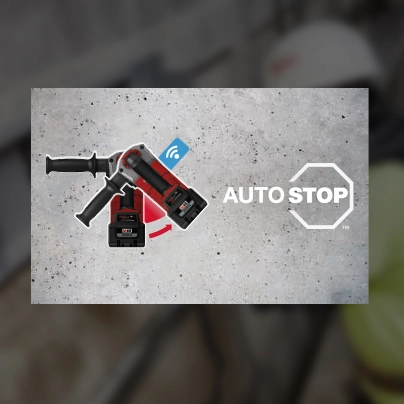

  • AUTOSTOP™ Kickback Control prevents over-rotation by stopping the hammer if it binds up during drilling when hitting rebar or hard aggregate.

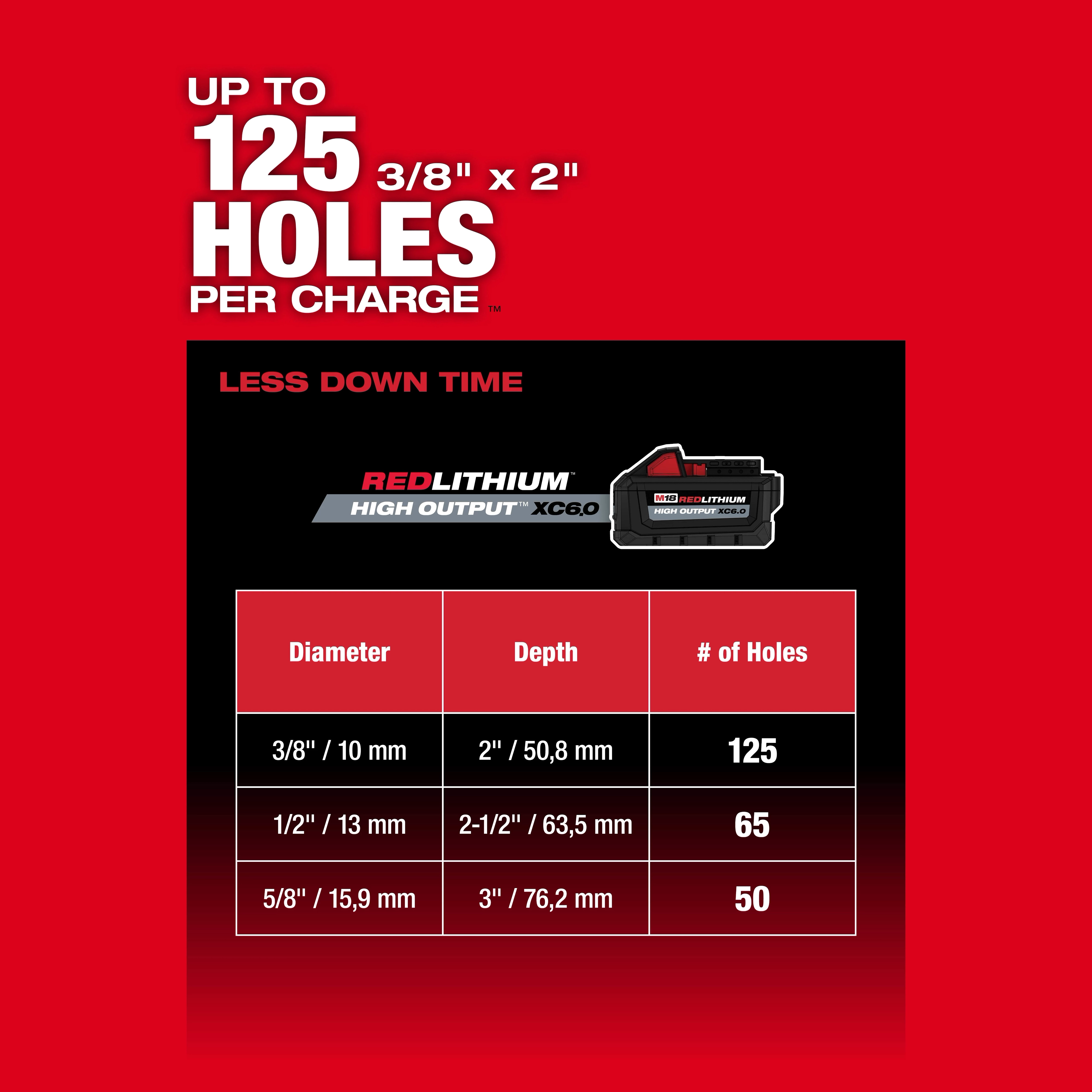

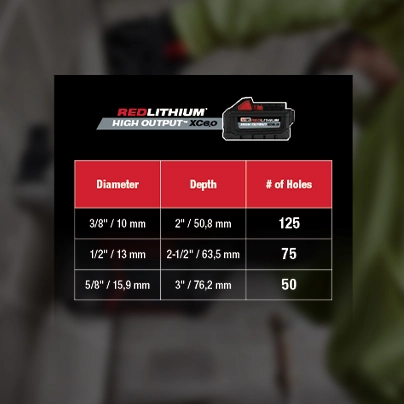

UP TO (125) 3/8" X 2" HOLES PER CHARGE

  • With the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery this hammer can deliver up to (125) 3/8" x 2" holes per charge.
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

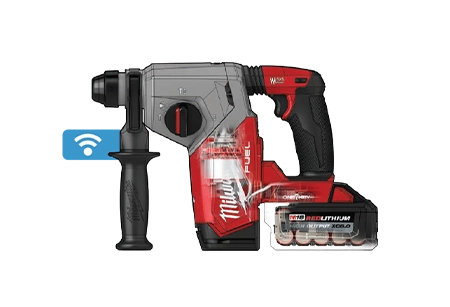

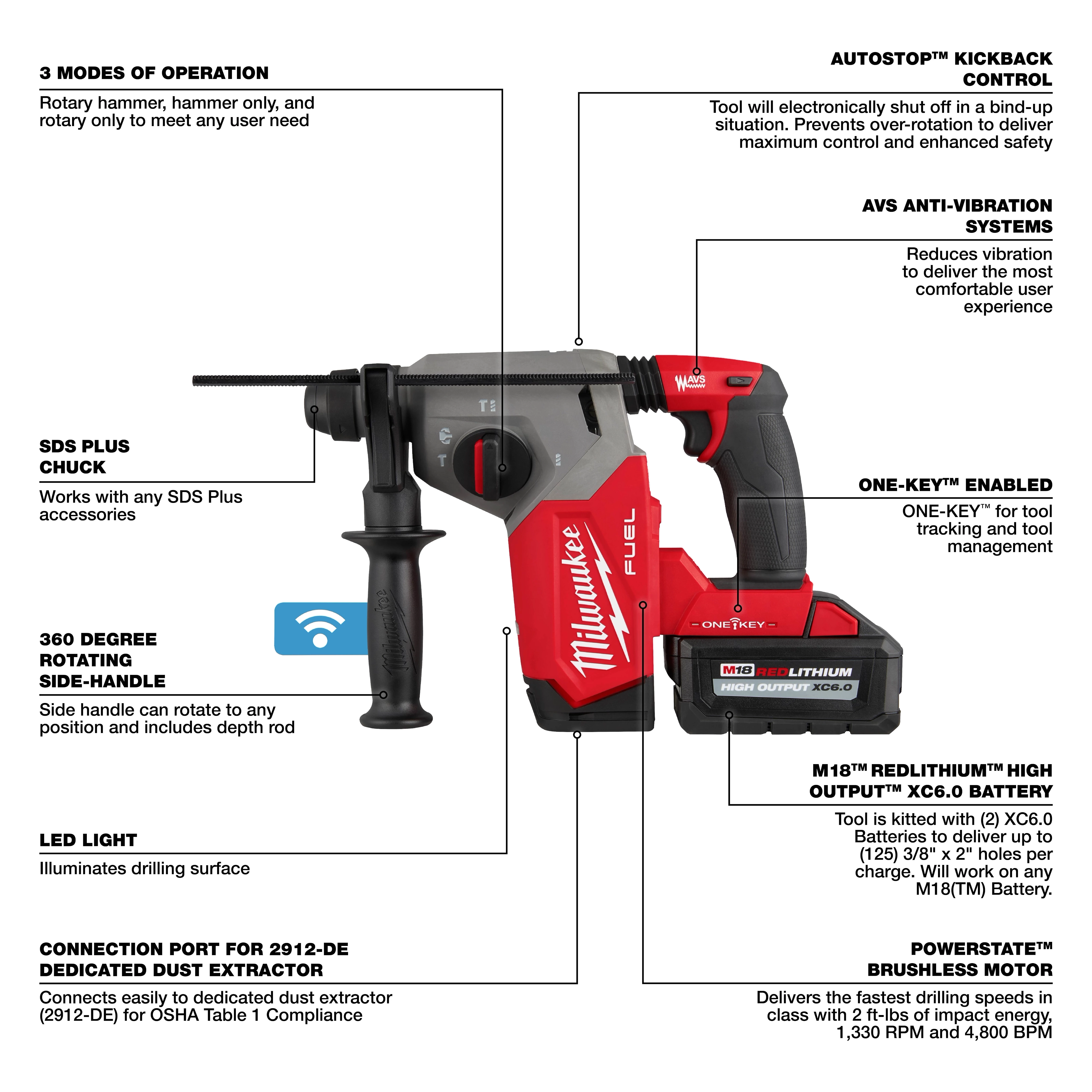

POWERSTATE™ Brushless Motor: Provides 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM
With the M18 REDLITHIUM HIGHOUTPUT 6.0 Battery, the M18 FUEL 1" SDS Plus Rotary Hammer can deliver up to 125 holes of runtime of 3/8" x 2" holes
REDLINK PLUS intelligence: integrates full-circle communication between tool, battery and charger
Fastest drilling rotary hammer in class
AUTOSTOP Kickback Control enhances safety by electronically sensing a tool bind-up and shutting the tool off
AVS Anti-Vibration System: Minimizes vibration for maximum comfort
3 Mode: Rotary Hammer, Hammer Only, Rotary Only
Compatible with ONE-KEY™ to Track and Manage

You May Also Like...

Product Specifications

Rotary Hammer Size
1
Tool Warranty
5 Year (Tool), 3 Years (Battery)
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Handle Type
Drop Motor
Material Composition
Metal
Length
18.7 in
Weight
13.3 lb
Height
13.6 in
Width
3.6 in
Badge Branding
FUEL™
OneKey Compatible
Yes
Fuel
Yes
Brushless
Yes
Battery System
M18
Chuck Type
SDS Plus
Chuck Size
1
Dust Extractor Included
Yes
Maximum RPM
1330 rpm
