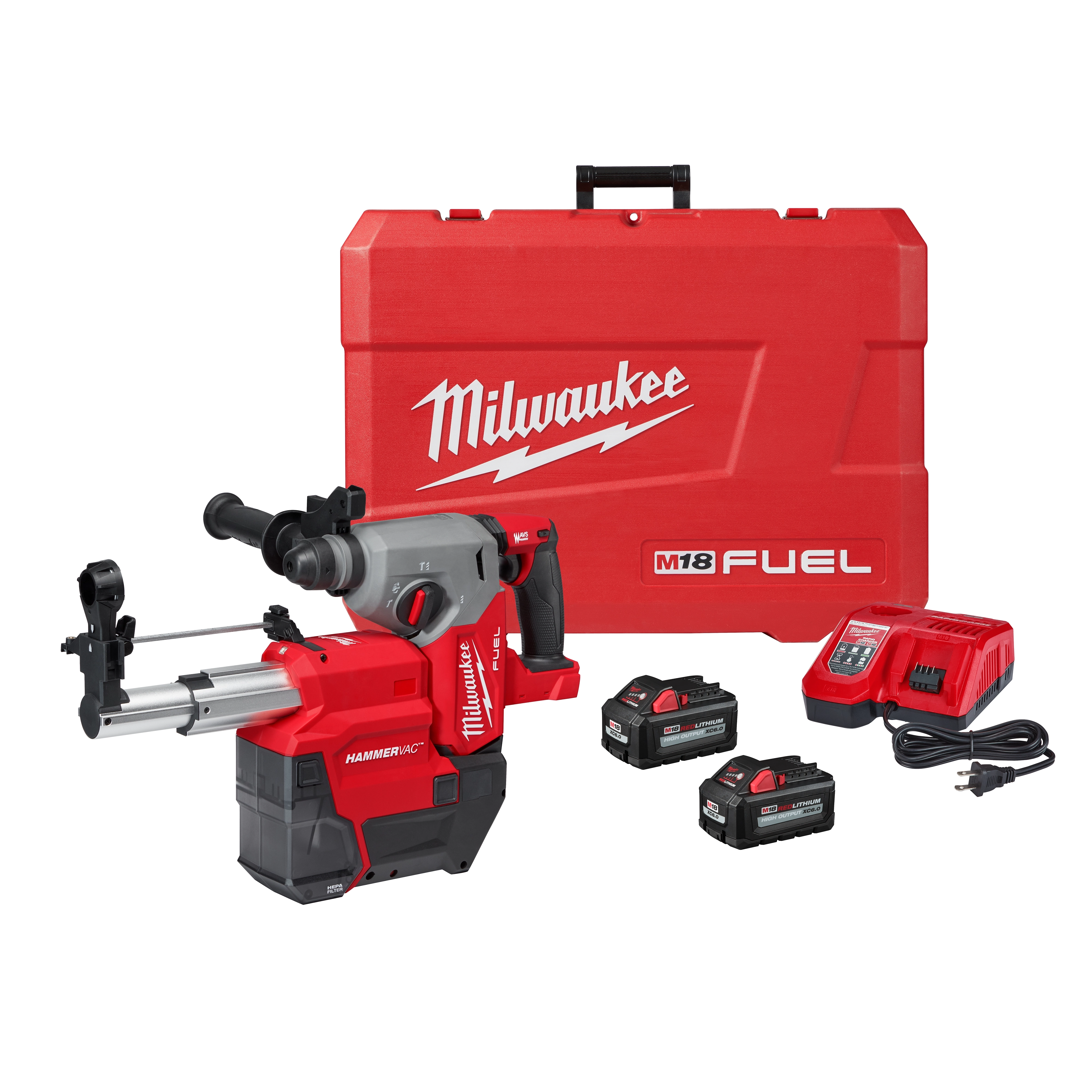

M18 FUEL™ 1” SDS Plus Rotary Hammer w/ Dust Extractor Kit

Our M18 FUEL™ 1" SDS Plus Rotary Hammer with Dust Extractor Kit is the next generation of cordless rotary hammer drills delivering you ultimate jobsite performance and productivity. The MILWAUKEE® M18 FUEL™ 1” SDS Plus Rotary Hammer is the fastest drilling rotary hammer in its class, includes AUTOSTOP™ Control for enhanced safety and can drill up to (125) 3/8” x 2” holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. The POWERSTATE™ Brushless Motor delivers 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM, providing speed and power in the most demanding applications. REDLINK PLUS™ Intelligence tool technology ensures maximum rotary drill performance and protects it from overload, overheating, and over-discharge. Our M18 REDLITHIUM™ ™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than our M18™ REDLITHIUM™ XC batteries. This hammer drill provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. Our AVS Anti-Vibration System minimizes vibration for maximum comfort. The Milwaukee HAMMERVAC™ 1” Dedicated Dust Extractor (2912-DE) features an inline design engineered to connect directly to and be powered by the M18 FUEL™ 1” SDS Plus Rotary Hammer (2912-20 and 2914-20). Utilizing the same replaceable certified HEPA filter as other HAMMERVACS™, which filters 99.97% of all particles greater than 0.3µm, means more compatibility on the jobsite. The built-in adjustable depth stop and ruler offer easy and precise adjustments. The dust extractor allows full OSHA Table One Compliance when drilling up to 1” in diameter and 6” in depth. This extractor features our AUTOPULSE™ Filter Cleaning Mechanism that automatically cleans the filter after each use, ensuring you can drill more effectively and for longer before needing to empty the dust box. The dust box comes equipped with a vacuum port that allows you to suction out the dust with a large vacuum or dust extractor instead of dumping the dust out into a trash receptacle, ensuring minimal possible exposure.
M18 FUEL™ HAMMERVAC™ 1" Dedicated Dust Extractor Primary Image

M18 FUEL™ 1” SDS Plus Rotary Hammer w/ Dust Extractor Kit

Key FeaturesSpecificationsReviews

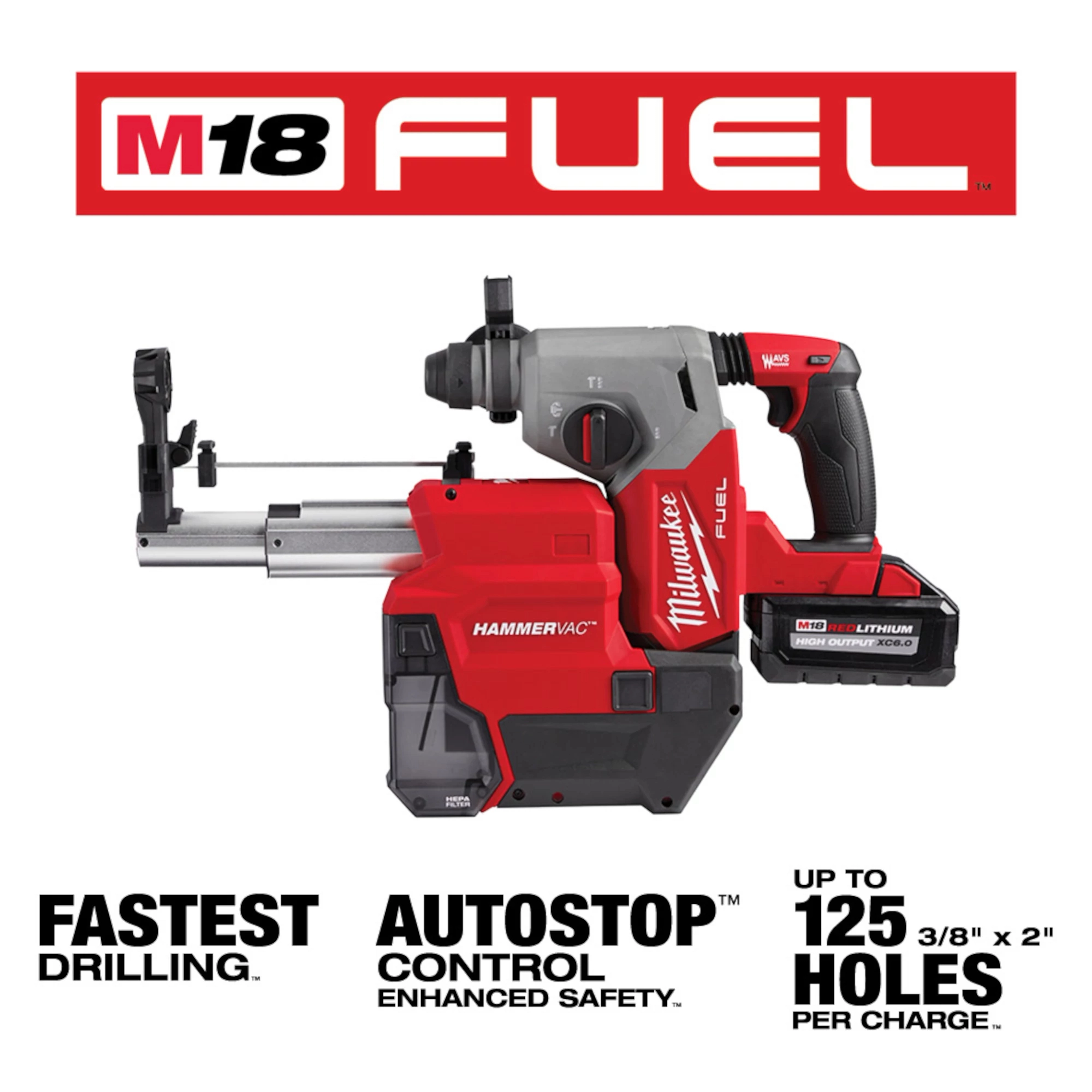

1” SDS Plus Rotary Hammer

FastestDrilling
Autostop™ControlEnhanced Safety
Up To125 3/8" x 2"HolesPer Charge
Cycle Arrow
1
2
3
Click a Number for Details

FASTEST DRILLING

  • The M18 FUEL™ 1" SDS Plus Rotary hammer is faster drilling than both corded and cordless 1" rotary hammers leading to increased productivity.

AUTOSTOP™ CONTROL, ENHANCED SAFETY

  • AUTOSTOP™ Kickback Control prevents over-rotation by stopping the hammer if it binds up during drilling when hitting rebar or hard aggregate.

UP TO (125) 3/8" X 2" HOLES PER CHARGE

  • With the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery this hammer can deliver up to (125) 3/8" x 2" holes per charge.
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

Fastest drilling rotary hammer in class
AUTOSTOP Kickback Control enhances safety by electronically sensing a tool bind-up and shutting the tool off
With the M18™ REDLITHIUM™ HIGH OUTPUT™ 6.0 Battery, the M18 FUEL 1" SDS Plus Rotary Hammer can deliver up to 125 holes of runtime of 3/8" x 2" holes

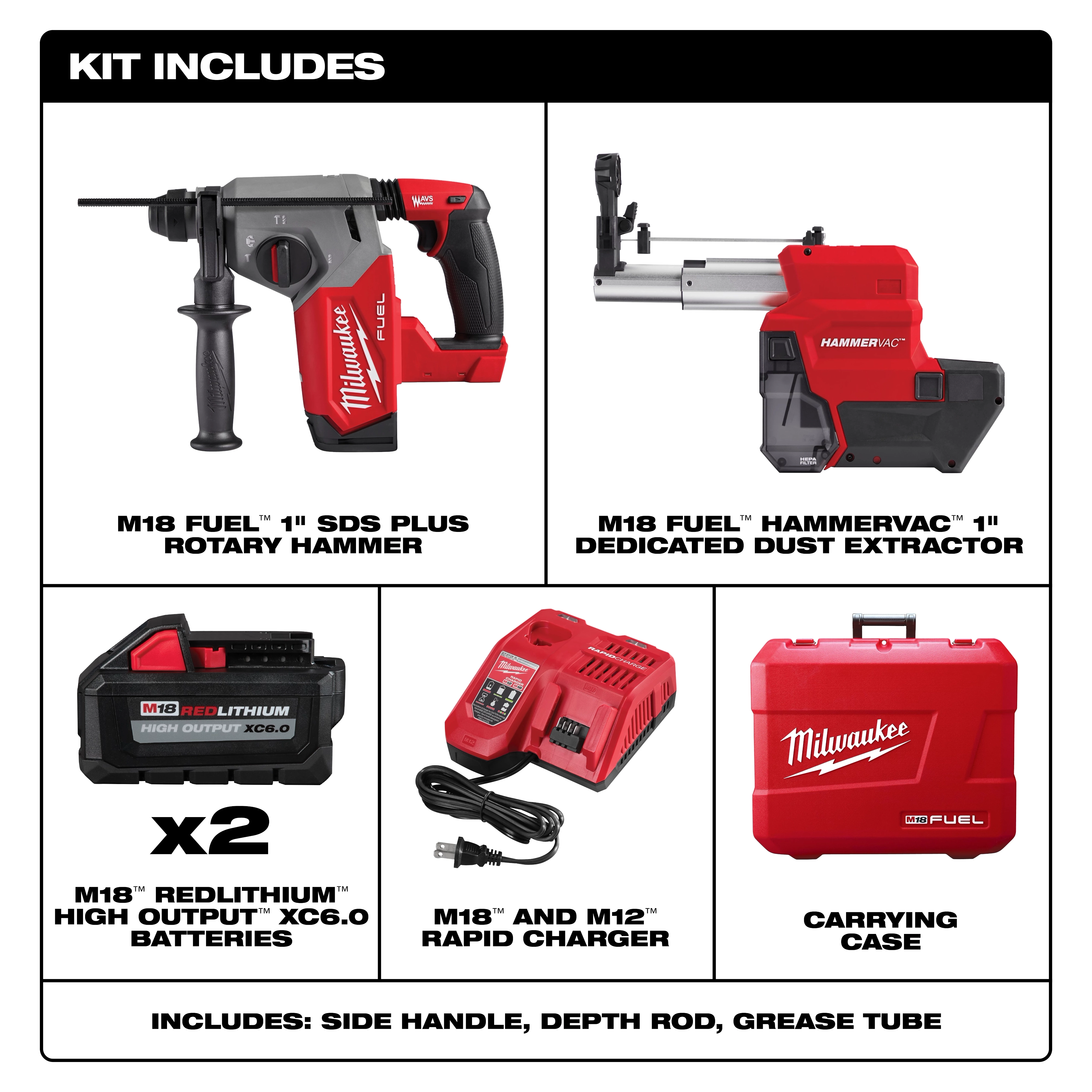

Includes M18™HAMMERVAC 1" Dedicated Dust Extractor

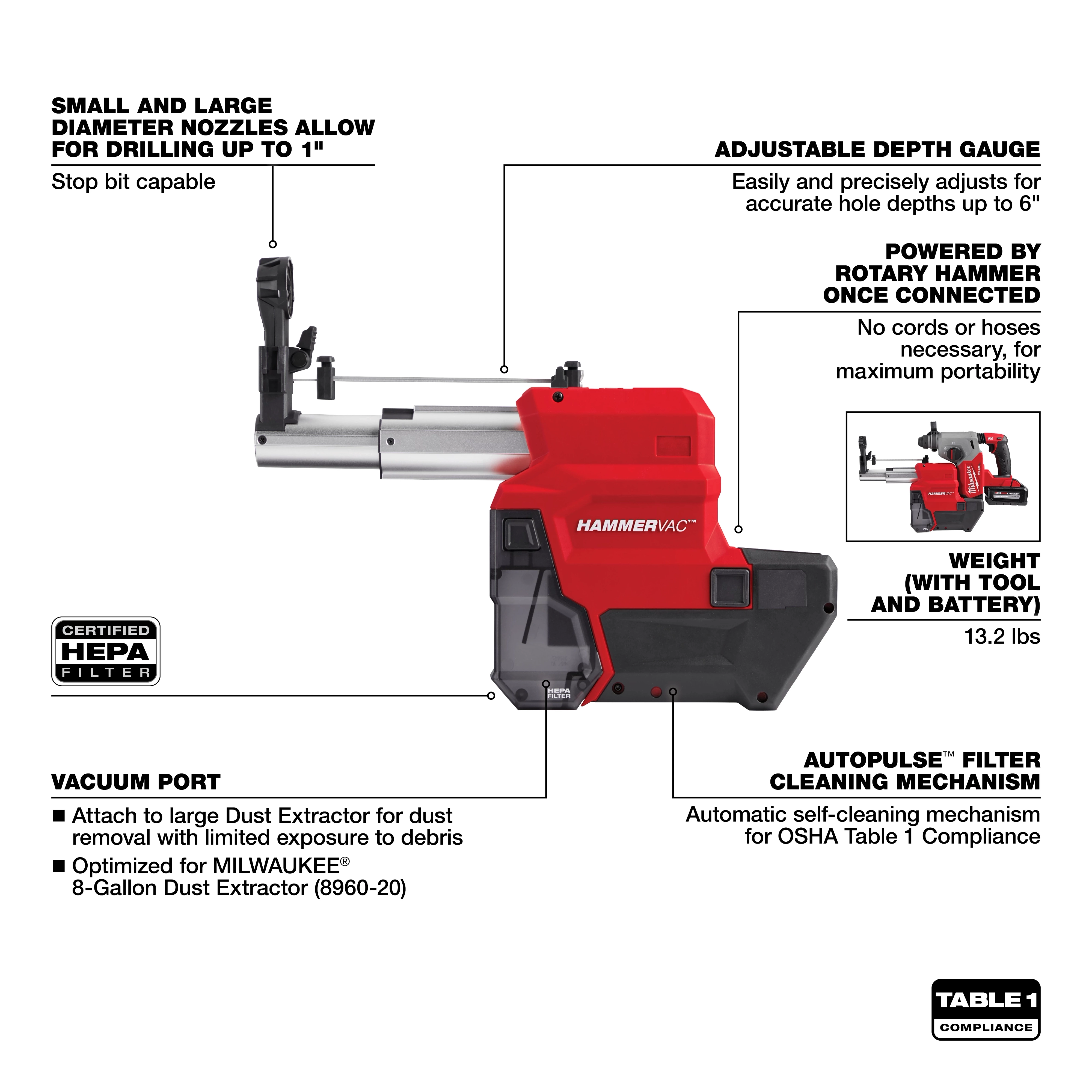

AUTOPULSE Filter Cleaning Mechanism cleans the dust extractor filter automatically after use
OSHA Table 1 Compliant Solution
Dust Extractor Capacity: Up to 1" in diameter and up to 6" in depth
Dust Box Vacuum Port

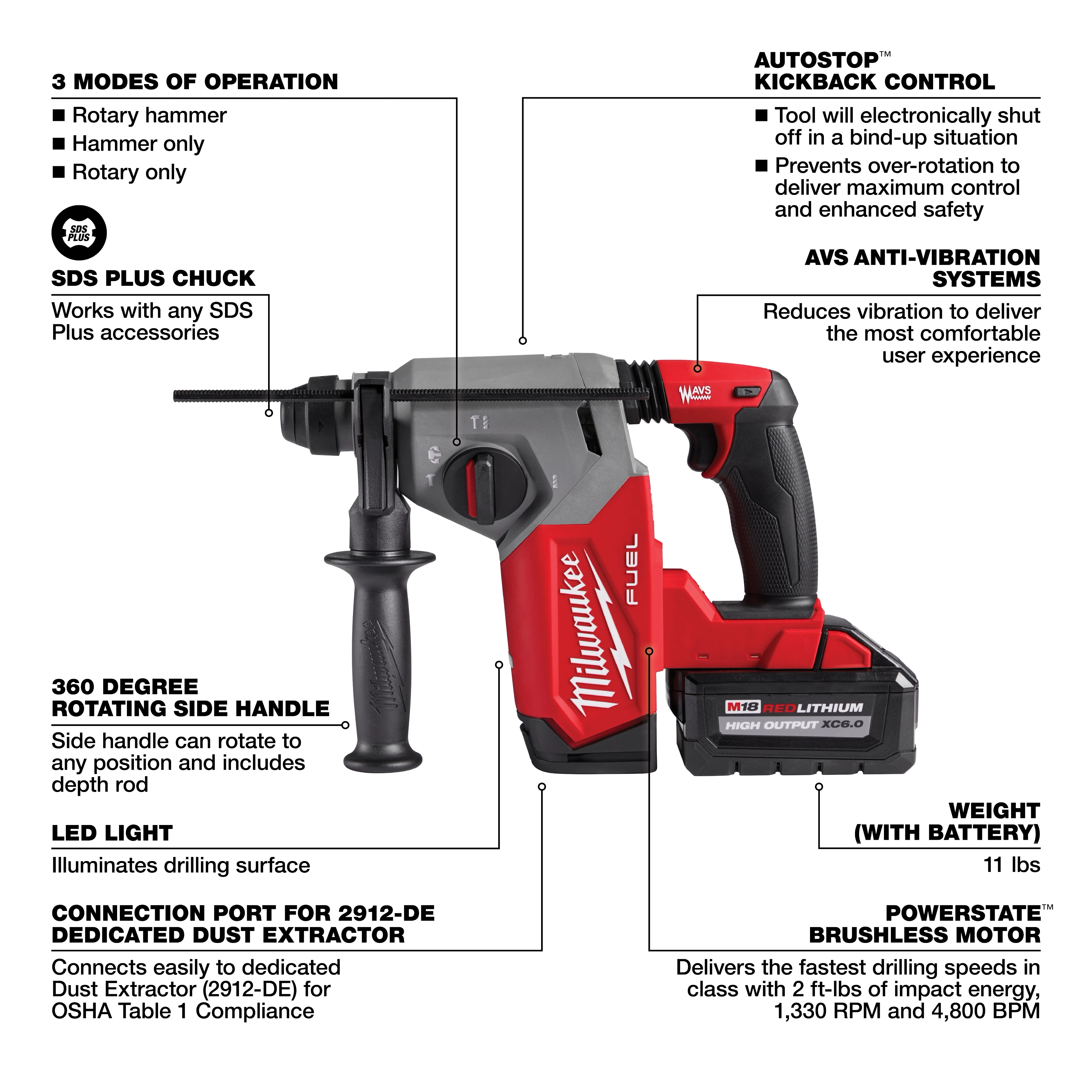

AVS Anti-Vibration System: Minimizes vibration for maximum comfort
3 Mode: Rotary Hammer, Hammer Only, Rotary Only
POWERSTATE Brushless Motor: Provides 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM
REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs

You May Also Like...

Product Specifications

Rotary Hammer Size
1
Tool Warranty
5 Year (Tool), 3 Years (Battery)
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Handle Type
Drop Motor
Material Composition
Metal
Length
18.7 in
Weight
13.3 lb
Height
13.6 in
Width
3.6 in
Badge Branding
FUEL™
No Load Speed
1330 RPM
Blow Energy
2 ft-lbs
BPM
4800
Drilling Mode
3-Mode: Rotary Hammer, Hammer Only, Rotation Only
Vibration
AVS™ Anti-Vibration System
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
Chuck Type
SDS Plus
Chuck Size
1
Dust Extractor Included
Yes
Maximum RPM
1330 rpm
