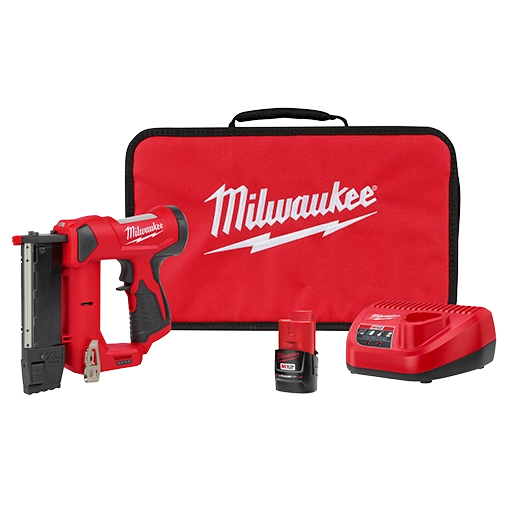

M12™ 23 Gauge Pin Nailer Kit

Our M12™ 23 Gauge Pin Nailer Kit features the most compact cordless pin nailer, combining precision and power to deliver the performance that professional carpenters and remodelers demand, without the hassle of a compressor hose or gas cartridge. The MILWAUKEE® 23 Gauge Pin Nailer provides you with unmatched productivity and accessibility in tight spaces and confined corners with a lightweight, ergonomic design. The nitrogen air spring mechanism allows the nailer to consistently sink pin nails at proper depth into hard or softwoods while leaving small, clean nail holes. The double-action trigger and non-marring precision point tip allow you to perform sequential driving and accurate pin placement into delicate trim pieces. The dry-fire lockout feature prevents misfires and workpiece damage. The M12™ Pin Nailer drives 23-gauge headless pin nails ranging in length from 1/2” to 1-3/8” and features all-day run time with up to 750 pin nails per charge when paired with our M12™ REDLITHIUM™ CP1.5 battery pack. This battery-powered pin nailer also features a magazine reload indicator, tool-free drive depth adjustment, reversible belt clip, LED light, battery fuel gauge, secondary work contact tip, and carries our industry-leading 3-year limited power tool warranty. This 23-gauge pin nailer kit includes (1) M12™ 23GA Pin Nailer, (1) M12™ Charger, (1) M12™ REDLITHIUM CP1.5Ah Battery Pack, and a Contractor Bag.

23 GAUGE PIN NAILER

MOST COMPACT CORDLESS PIN NAILER

FULL PNEUMATIC REPLACEMENT

  • All Day Run-Time For Heavy Users
  • 750 Pin Nails Per Charge (M12™ REDLITHIUM™ CP1.5 Battery)
  • No Compressor Hoses or Gas Cartridges

CONSISTENT, CLEAN PIN NAIL HOLES

  • Best-In-Class Nail Hole Size
  • Tool-Free Drive Depth Adjustment
  • Non-Marring Precision Point Tip

POWER TO NAIL HARDWOODS

  • Power to Sink Pins Sub-Flush in Hardwoods
  • Pneumatic-Like Driving Power
  • Pin Length Compatibility from 1/2" – 1-3/8"
M12

PORTABLE PRODUCTIVITY
TRADE FOCUSED
SYSTEM WIDE

  • Double-Action Trigger for Sequential Driving
  • No Pneumatic Hose or Gas Cartridge
  • Compatible with 1/2" to 1-3/8" 23 Gauge Headless Pin Nails
  • Up to 750 Pin Nails Per Charge
  • Tool Free Drive Depth Adjustment
  • (2) Interchangeable, Non-Marring, Precision Point Tips Included
  • Magazine Reload Indicator and Dry Fire Lockout Mechanism
  • LED Light for Increased Visibility
  • Reversible Belt Clip
  • Fits all M12™ Batteries
You May Also Like...

Battery Specifications

Voltage 12V
Battery Type 12 Volt Lithium Ion

Product Specifications

Nailer Type Finishing
Tool Warranty 3 Year Limited Warranty
Power Source Cordless
Length 8.7 in
Weight 3.3 lb
Height 7.7 in
Width 2.6 in
Magazine Capacity 120 Pin Nails
Pin Length 1/2" to 1-3/8"
Battery System M12
