325' Stiff Pipeline Inspection Reel

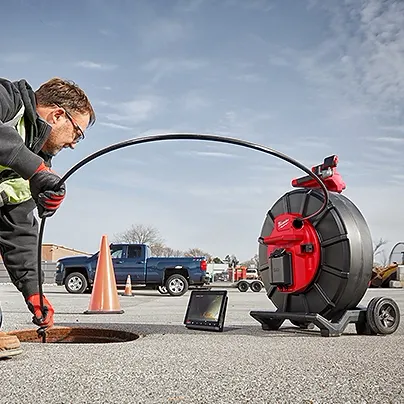

Our 325’ Stiff Pipeline Inspection Reel is perfect for long runs with few turns. Designed for 3”-10” sewer lines it’s powered by the M18™ 500 GB Control Hub and is part of the MILWAUKEE® M18™ Modular Pipeline Inspection System. Featuring the industry’s shortest 34 mm 1080p HD self-leveling camera head, and the ability to digitally zoom up to 4X and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. The sewer line camera has a telescoping handle and wide wheelbase making transportation on and off the job easier than ever. The 325’ Pipeline Inspection Reel includes a camera head sleeve to protect the camera from impact and skids designed to center the camera in pipes.

Includes

(1)
325' Stiff Pipeline Inspection Reel (2976-20)
(1) Small Camera Skid (1) Medium Camera Skids (4) Star Skids

325' STIFF PIPELINE
INSPECTION SYSTEM

CLEAREST IMAGE.
EASIEST INSPECTIONS.

HD CAMERA DELIVERS 4X DIGITAL ZOOM

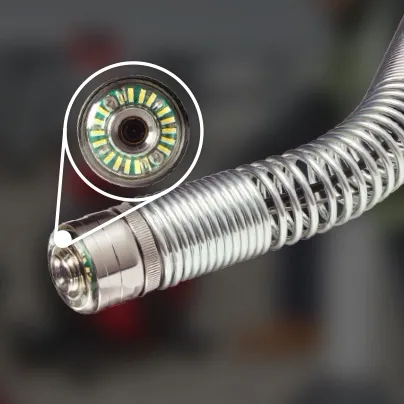

  • 34 mm Self-Leveling Camera Head
  • Highest Resolution during live streaming, picture, and video
  • CAPTURE, CREATE AND SHARE TO MOBILE DEVICES

  • Save HD images and video recordings to M18™ 500 GB Control Hub
  • Send saved recordings faster directly from mobile devices
  • EXTENSION HANDLE AND WIDE WHEELBASE PROVIDE MAXIMUM STABILITY

  • Six inch all-terrain wheels for better navigation on uneven surfaces
  • 19" Extendable handle provides comfortable transport to and from job
  • M18

    PERFORMANCE DRIVEN
    TRADE FOCUSED
    SYSTEM WIDE

    • 1080p camera resolution providing the industry's clearest image inside of drain lines
    • 34 mm self-leveling HD camera head with Sapphire lens
    • 325’ 12 mm Push Cable provides stiffness to push maximum distance
    • Powered by the M18™ 500GB Control Hub

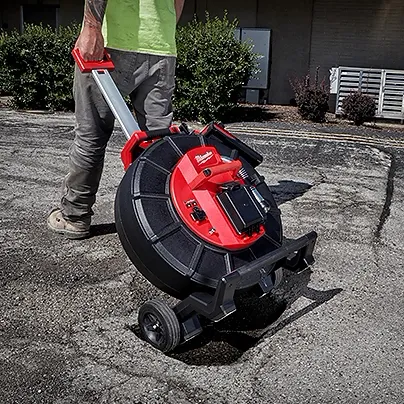

    • Telescoping handle and wide wheelbase provide maximum stability
    • Onboard monitor mount for viewing and transportation
    • Swap batteries without system shutdown
    You May Also Like...

    Product Specifications

    Tool Warranty 5 Year Limited Warranty
    Length 16.0 in
    Weight 60.0 lb
    Height 30.0 in
    Width 23.5 in
    Push Cable Stiffness Stiff
    Push Cable Length 325'
    Drain Line Capacity 3"-12"
    Push Cable Diameter 12mm
    Camera Resolution 1080p
    Camera Head Ingress Protection IP67
    Sonde Frequency 512Hz, 640Hz, 33kHz
    Line Trade Frequency 33kHz, 83kHz
    Video Display M18™ Wireless Monitor or MILWAUKEE® Pipeline Inspection App
    Camera Head Warranty 1 Year
    Power Source Cordless
    Battery System M18
