M18 FUEL™ 1" SDS Plus Rotary Hammer

Our M18 FUEL™ 1" SDS Plus Rotary Hammer is the next generation of cordless rotary hammers delivering ultimate jobsite performance and productivity. The MILWAUKEE® M18 FUEL™ 1" SDS Plus Rotary Hammer is the fastest drilling rotary hammer in its class, includes AUTOSTOP™ Control for enhanced safety, and can drill up to (125) 3/8 in. x 2 in. holes per charge when paired with the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. The POWERSTATE™ Brushless Motor delivers you 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM, providing speed and power in the most demanding applications. REDLINK PLUS™ intelligence tool technology ensures maximum rotary drill performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while you're drilling in rebar or hard aggregate. Our AVS Anti-Vibration System minimizes vibration for maximum comfort.

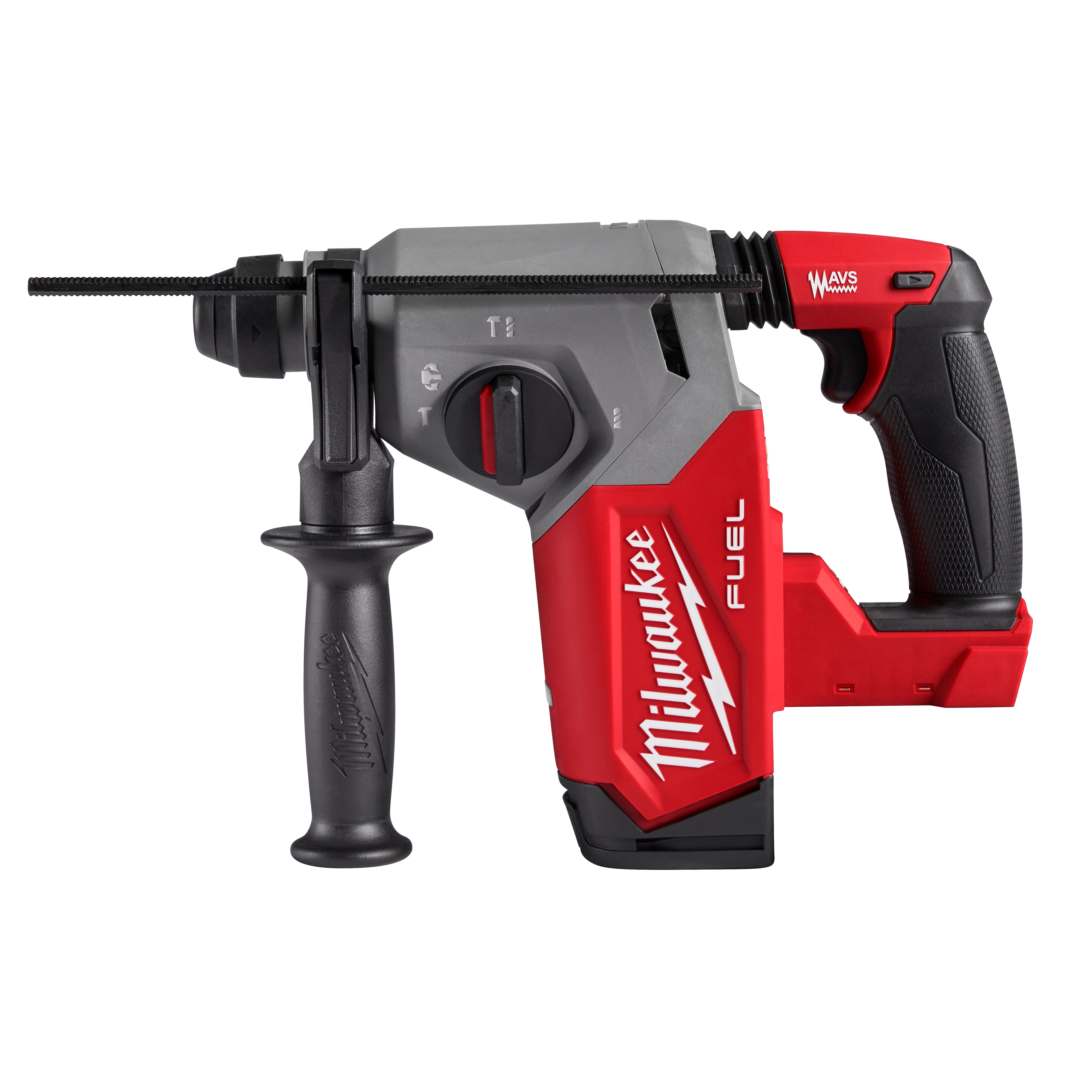

M18 FUEL™ 1" SDS Plus Rotary Hammer Primary Image

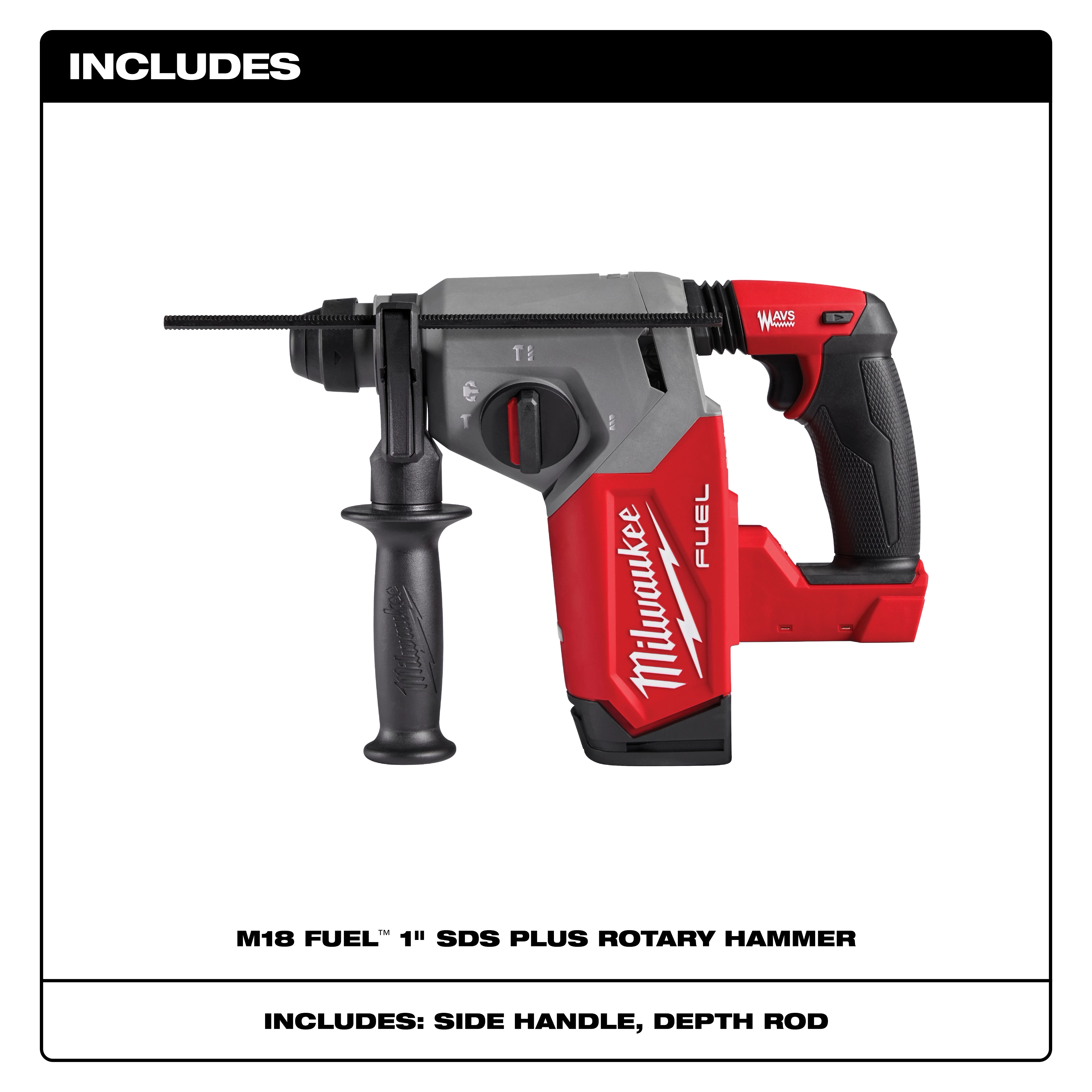

M18 FUEL™ 1" SDS Plus Rotary Hammer

Key FeaturesSpecificationsReviews

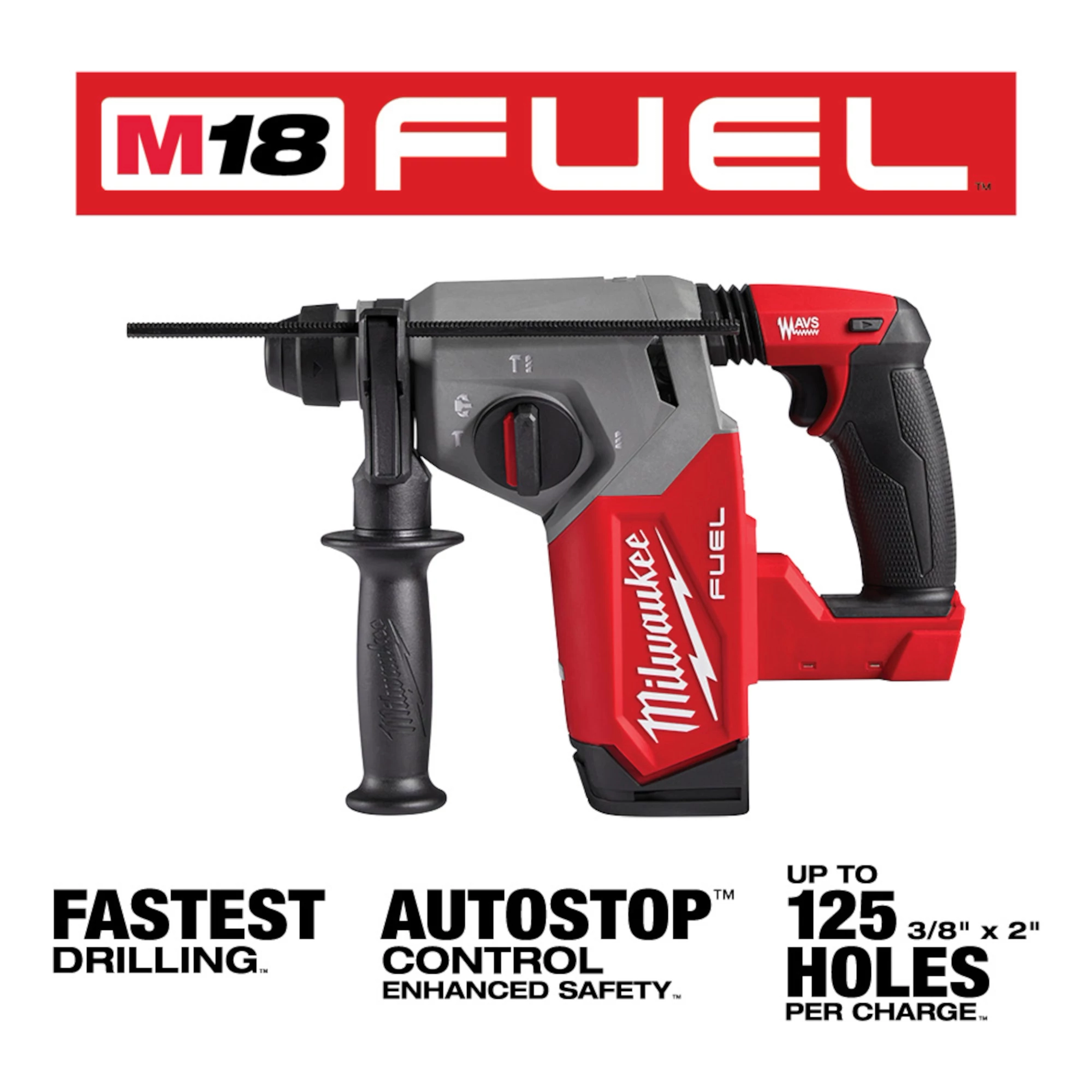

1” SDS Plus Rotary Hammer

FastestDrilling
Autostop™ControlEnhanced Safety
Up To125 3/8" x 2"HolesPer Charge
Cycle Arrow
1
2
3
Click a Number for Details

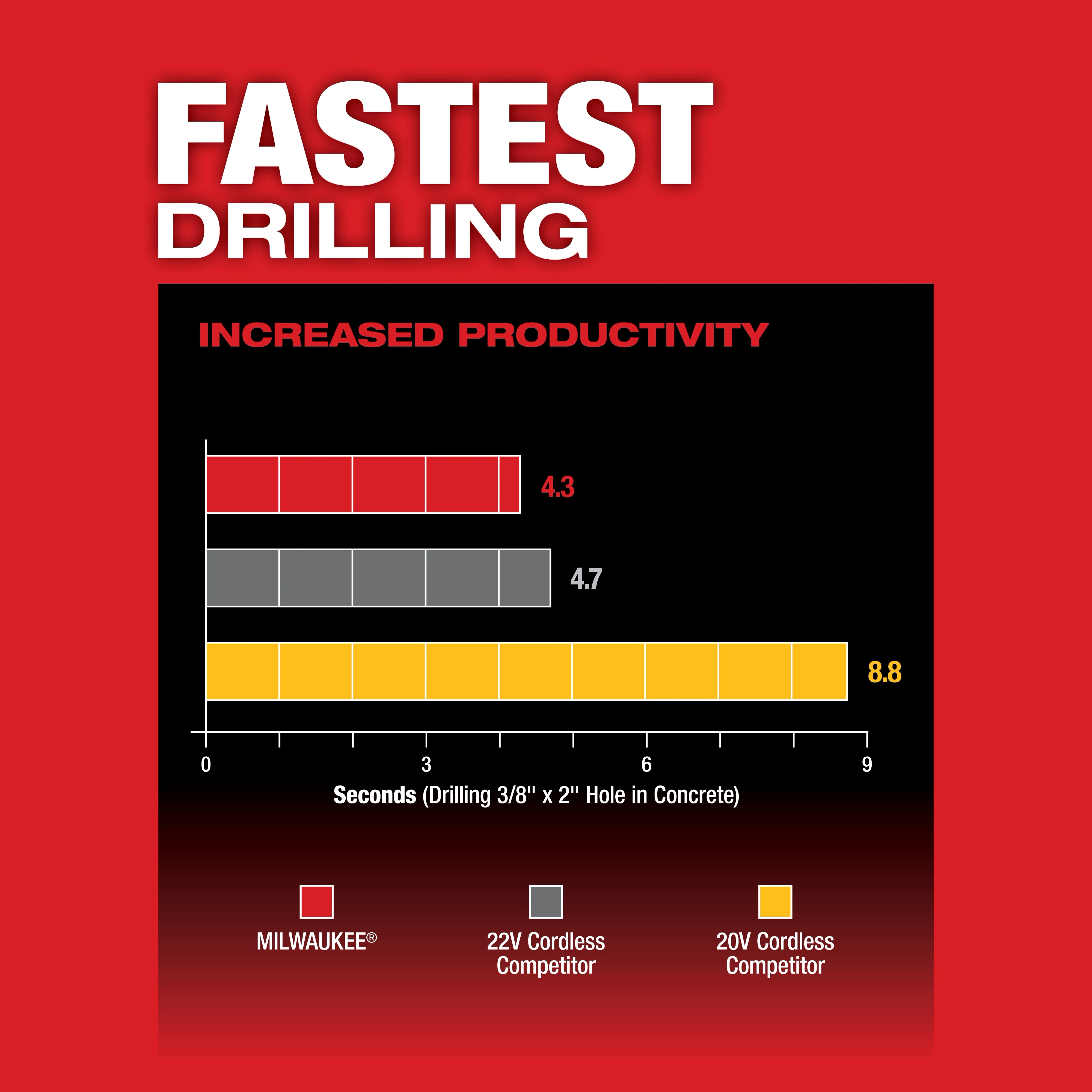

FASTEST DRILLING

  • The M18 FUEL™ 1" SDS Plus Rotary hammer is faster drilling than both corded and cordless 1" rotary hammers leading to increased productivity.

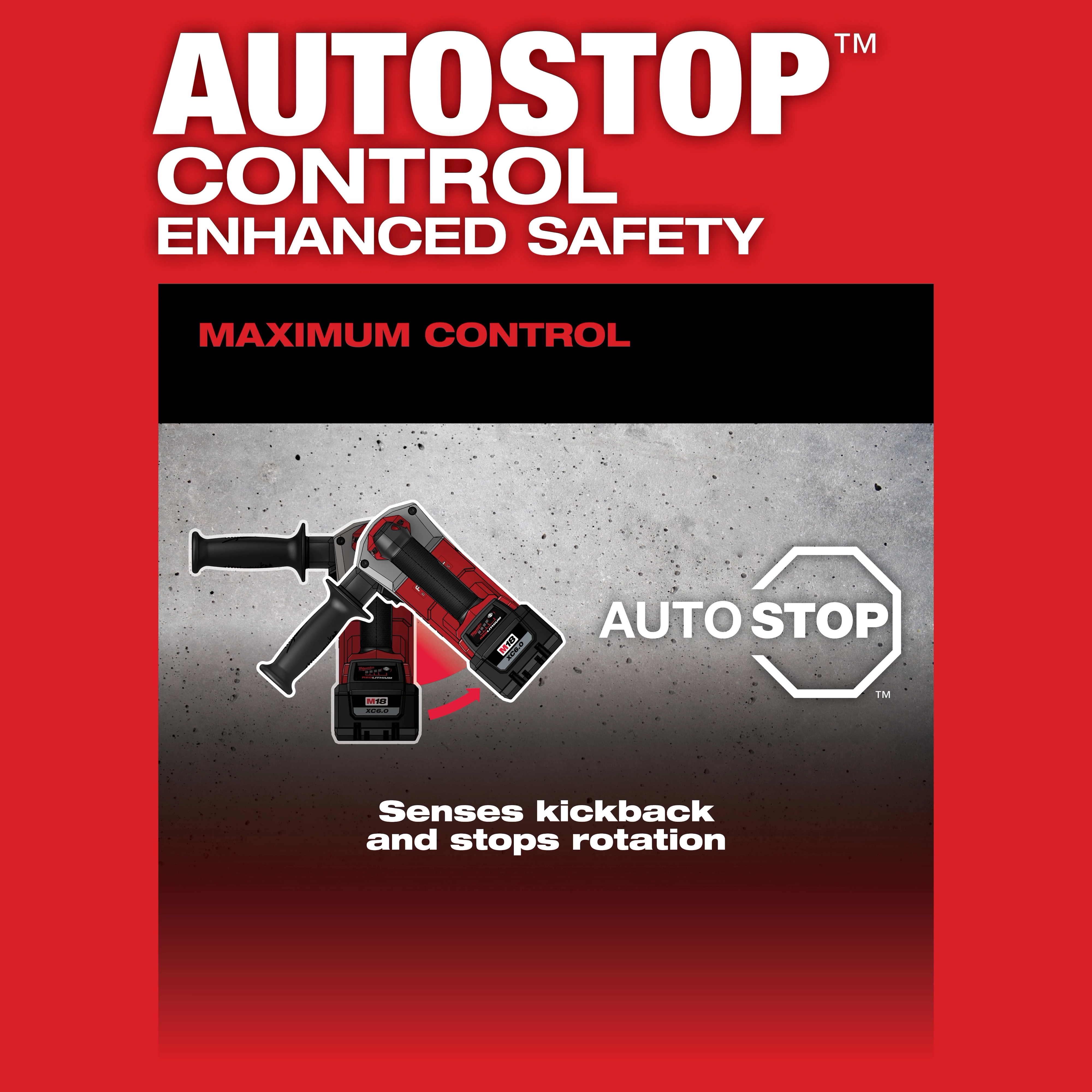

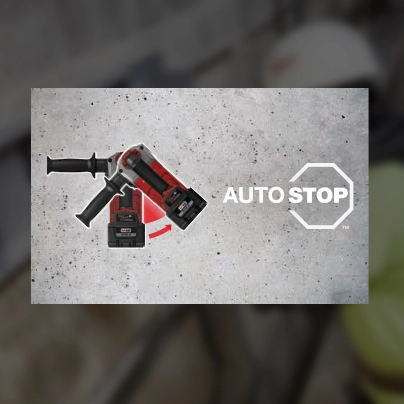

AUTOSTOP™ CONTROL, ENHANCED SAFETY

  • AUTOSTOP™ Kickback Control prevents over-rotation by stopping the hammer if it binds up during drilling when hitting rebar or hard aggregate.

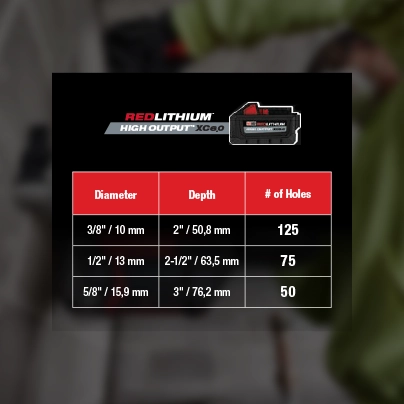

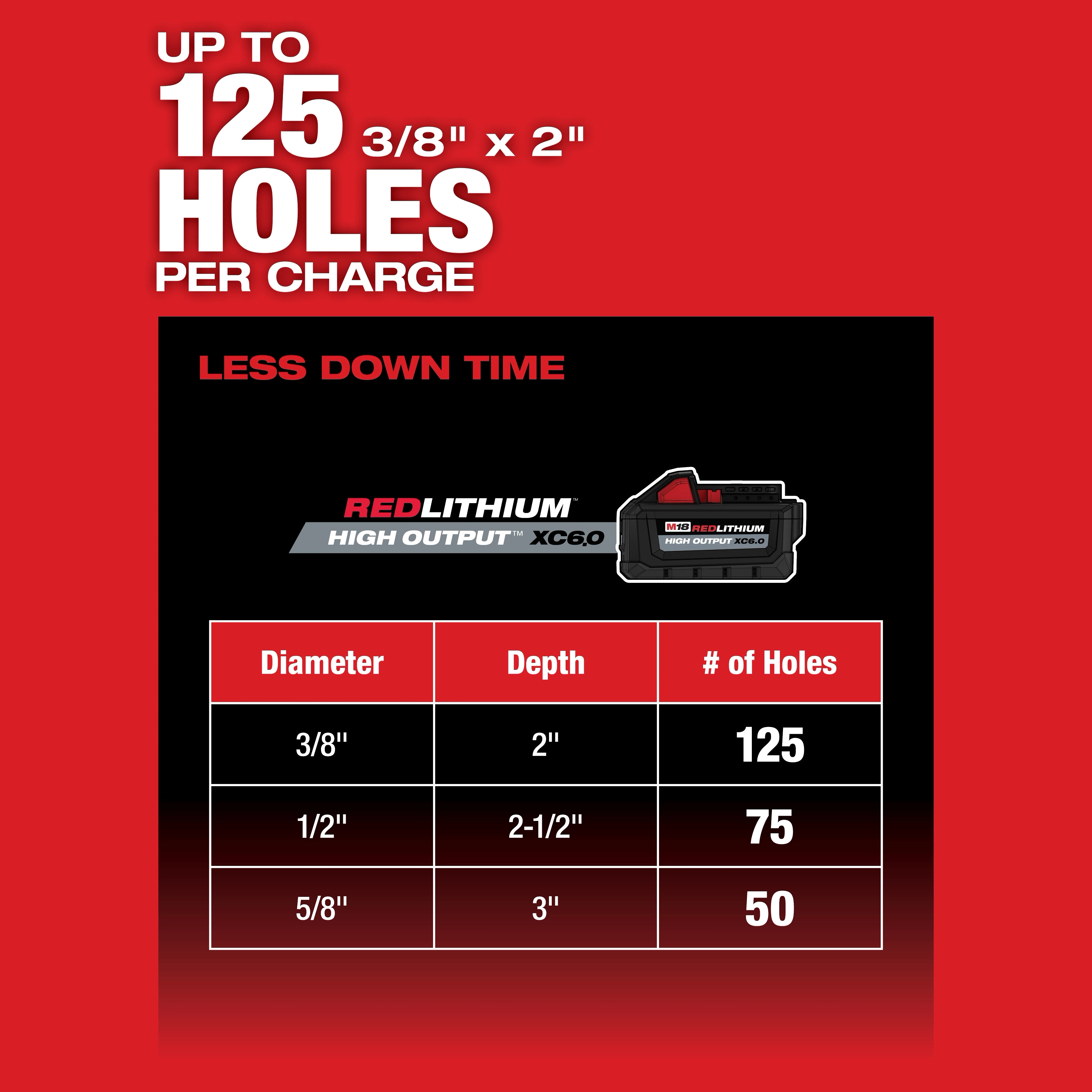

UP TO (125) 3/8" X 2" HOLES PER CHARGE

  • With the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery this hammer can deliver up to (125) 3/8" x 2" holes per charge.
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

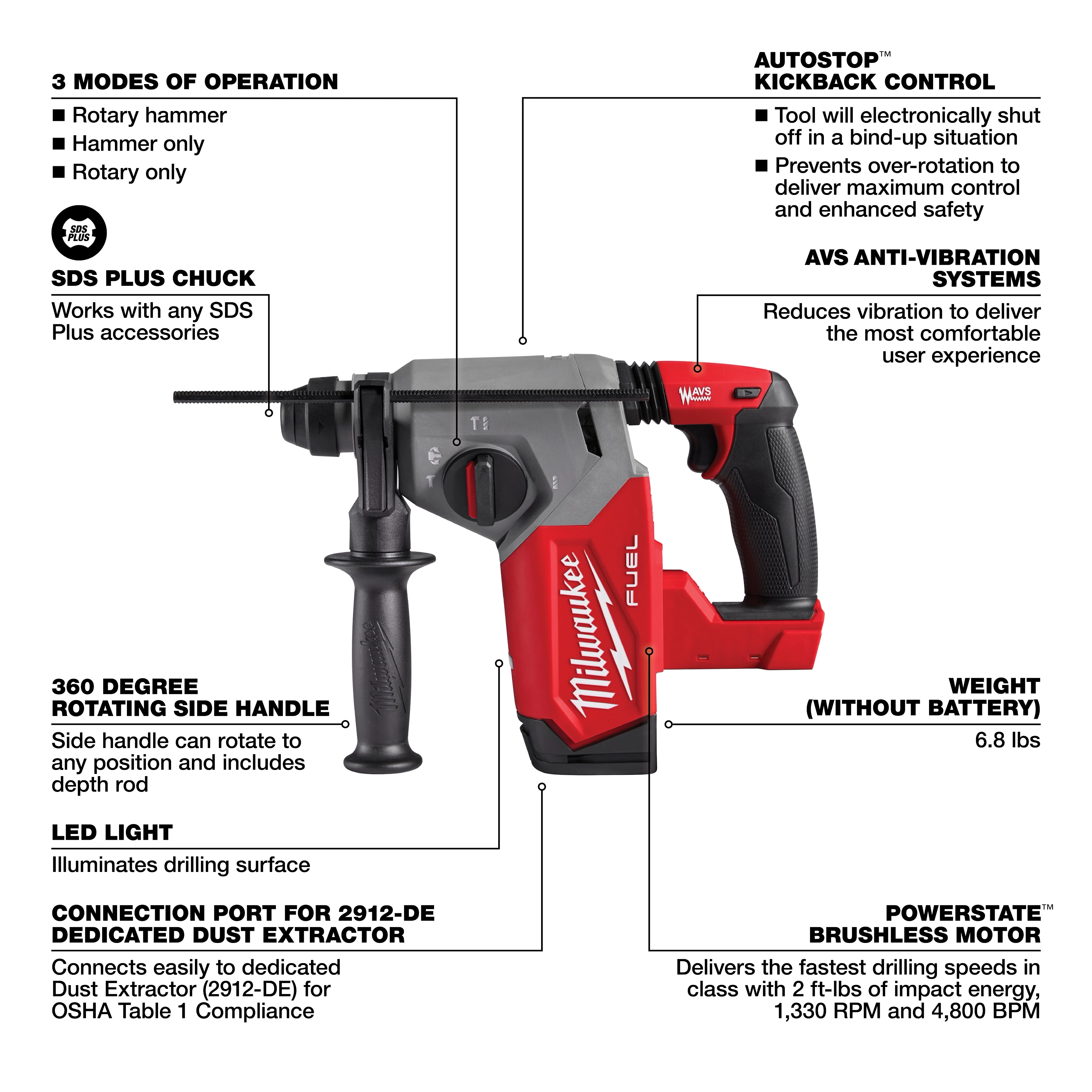

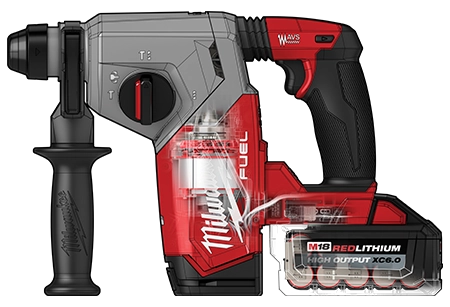

POWERSTATE™ Brushless Motor: Provides 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM
The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
Fastest drilling rotary hammer in class
AUTOSTOP Kickback Control enhances safety by electronically sensing a tool bind-up and shutting the tool off
With the M18 REDLITHIUM HIGHOUTPUT 6.0 Battery, the M18 FUEL 1" SDS Plus Rotary Hammer can deliver up to 125 holes of runtime of 3/8" x 2" holes
AVS Anti-Vibration System: Minimizes vibration for maximum comfort
3 Mode: Rotary Hammer, Hammer Only, Rotary Only

You May Also Like...

Product Specifications

Rotary Hammer Size
1
Tool Warranty
5 Year Limited Warranty
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Handle Type
Drop Motor
Material Composition
Metal
Length
11.5 in
Weight
6.8 lb
Height
9 in
Width
4.25 in
Badge Branding
FUEL™
No Load Speed
1330 RPM
Blow Energy
2 ft-lbs
BPM
4800
Drilling Mode
3-Mode: Rotary Hammer, Hammer Only, Rotation Only
Vibration
AVS™ Anti-Vibration System
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
Chuck Type
SDS Plus
Chuck Size
1
Maximum RPM
1330 rpm
