Key FeaturesSpecificationsReviews

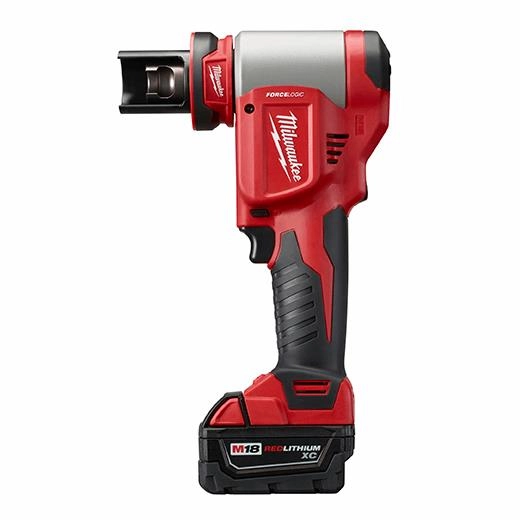

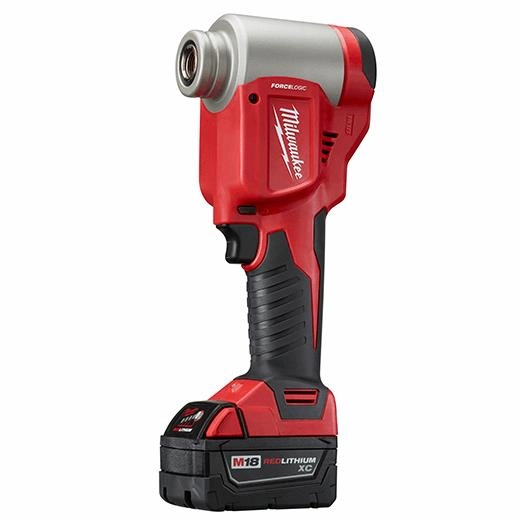

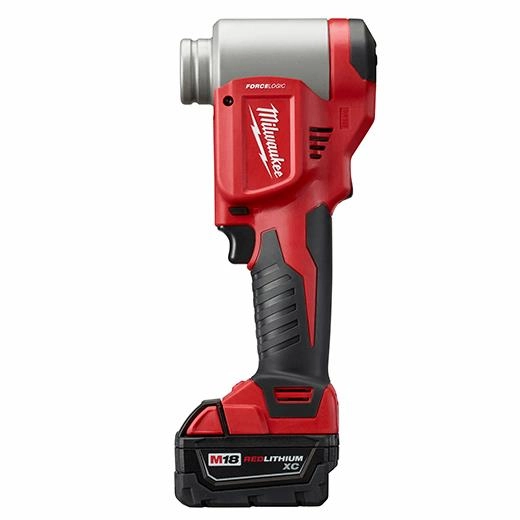

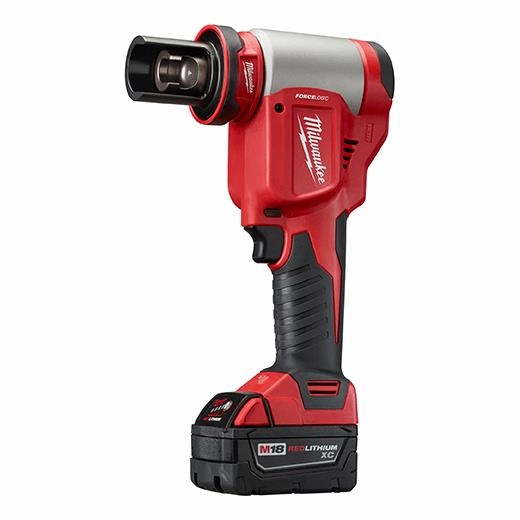

Powerful hydraulic pump delivers up to 10 tons of force
Powerful enough to punch 6" Holes in 12 gauge mild steel, and 14 gauge Stainless Steel
Part of the M18™ System, featuring over 200+ tools

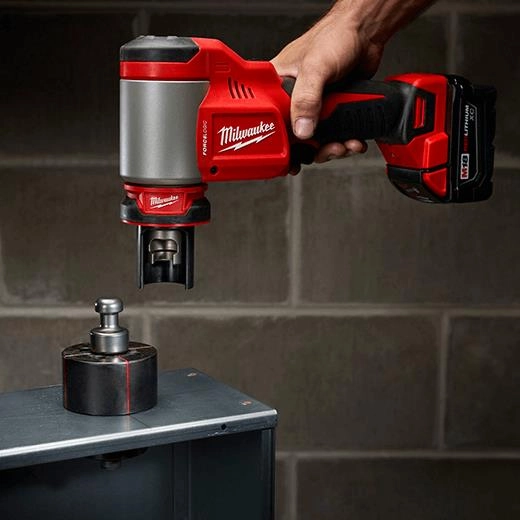

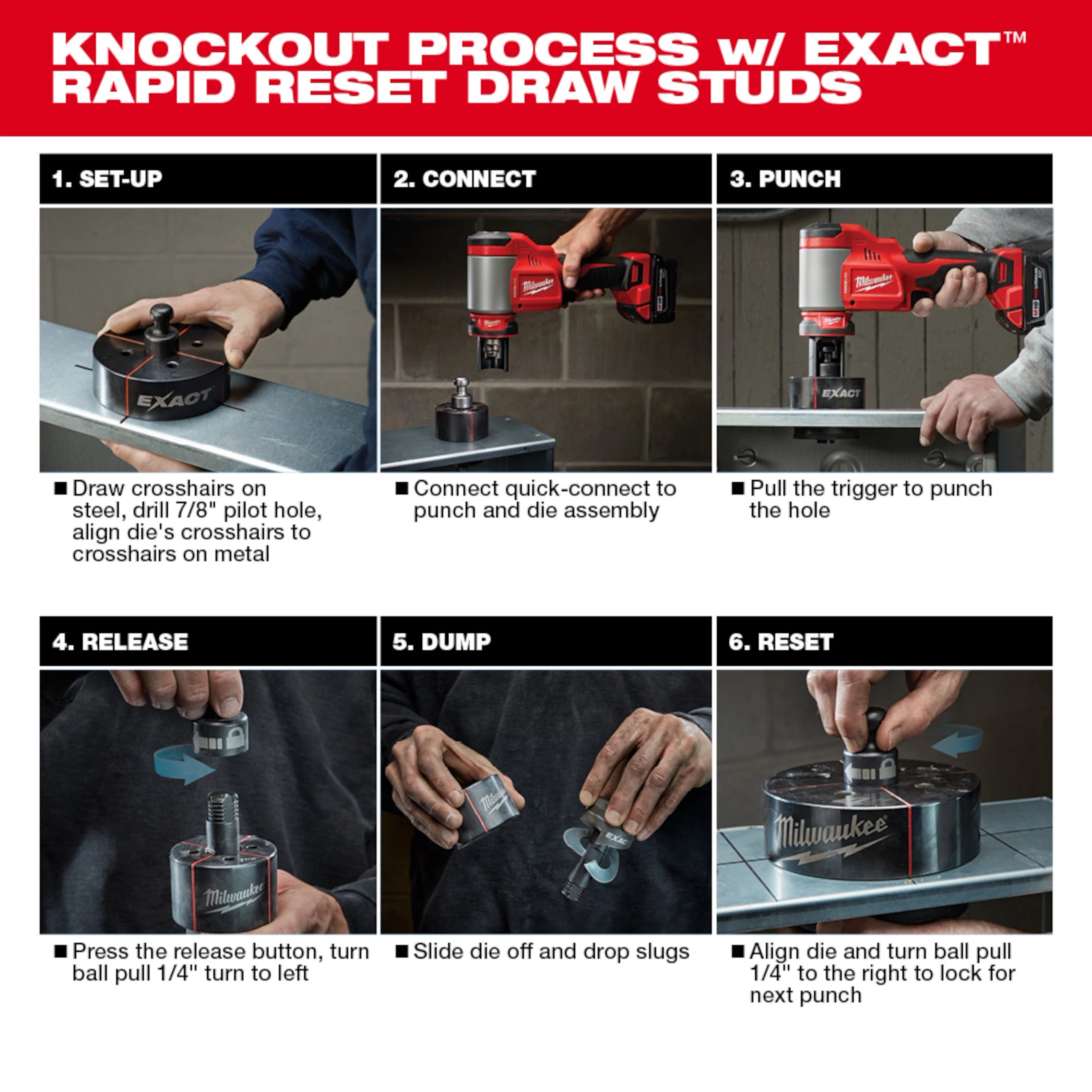

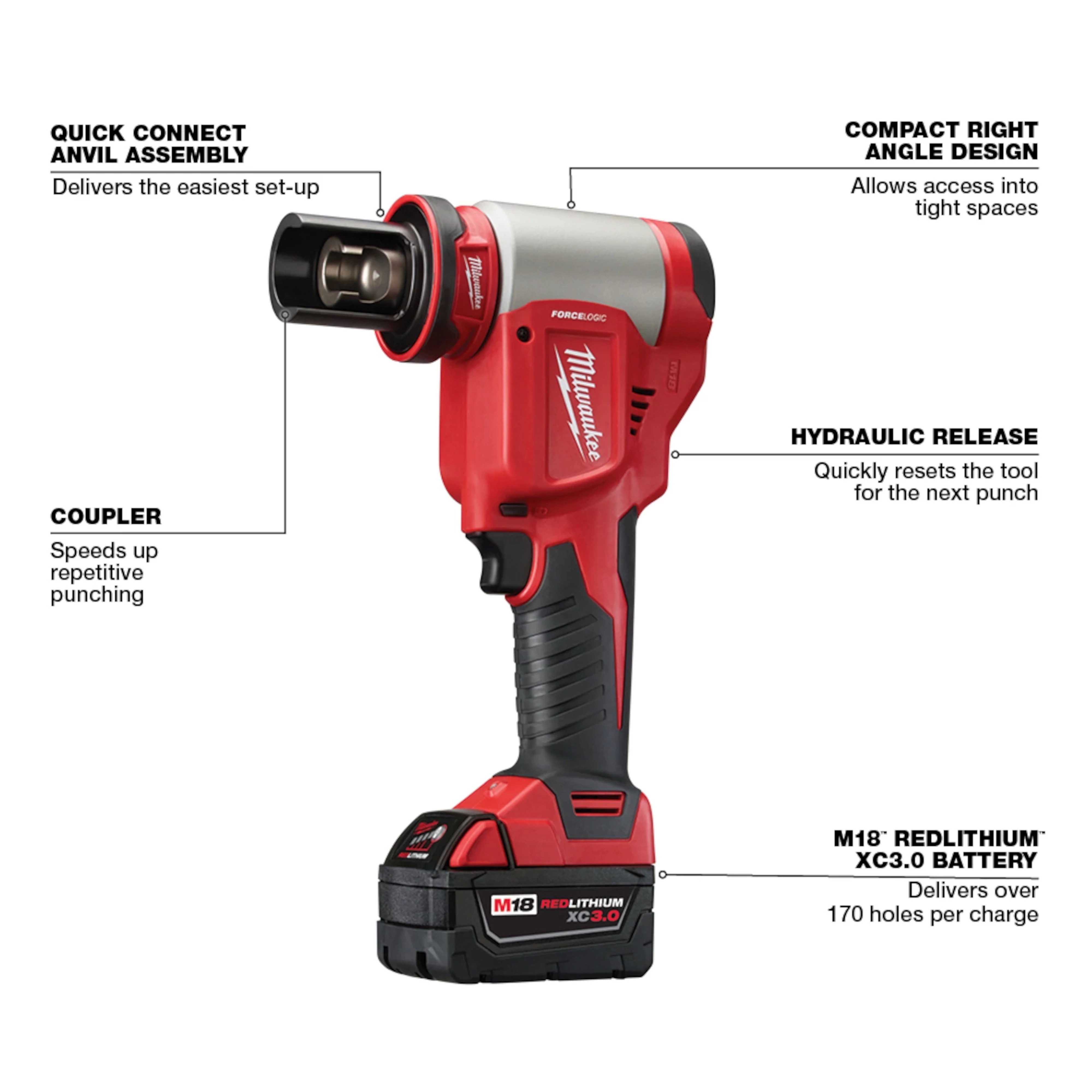

Quick Connect Alignment System speeds up alignment by delivering the easiest set-up, and enabling the clearest view of the work surface

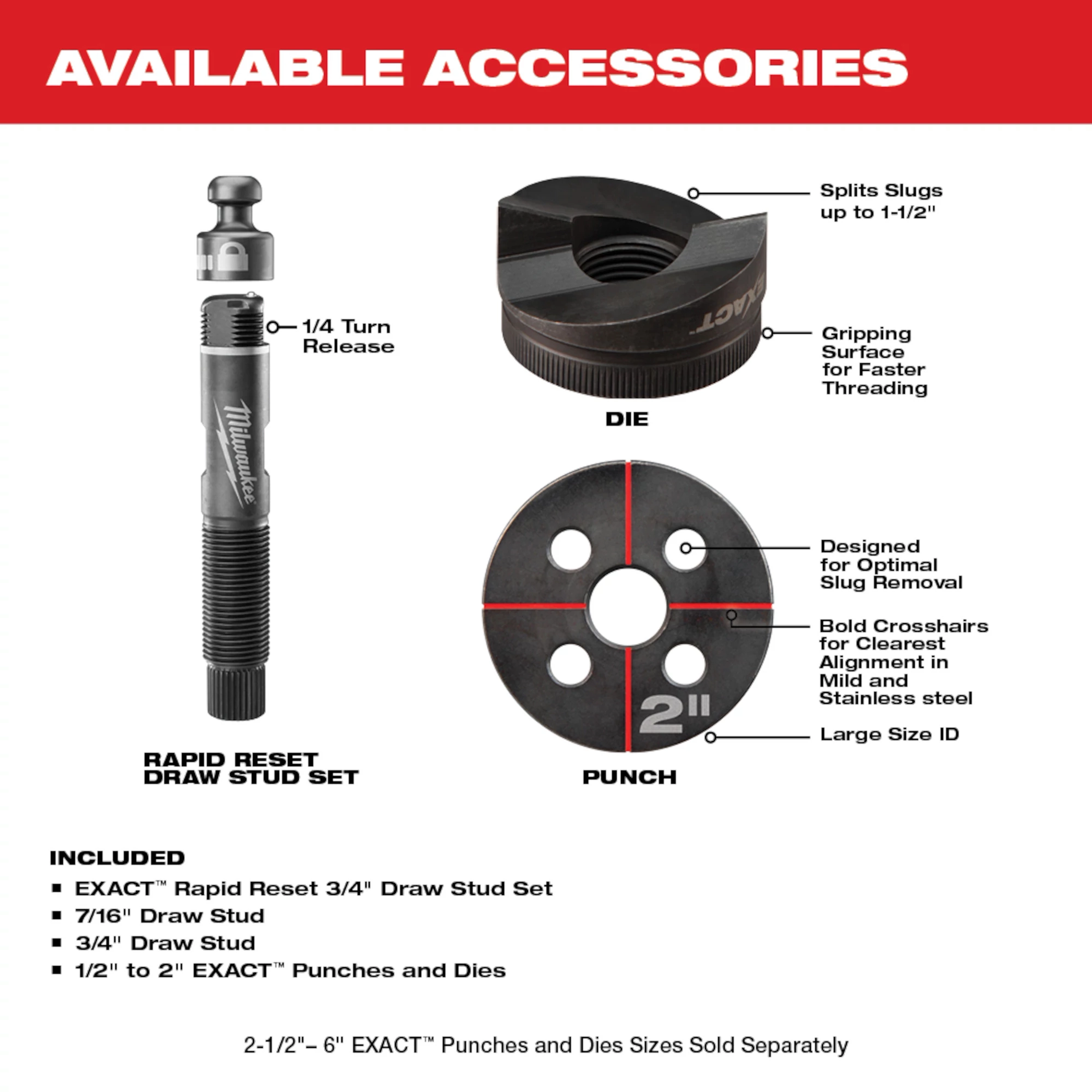

EXACT™ Punches and Dies are rated for both mild and stainless steel punching
EXACT™ Dies feature vivid red cross hairs for clearest alignment
Large size ID markings permit easy punch and die selection
The tooth geometry of EXACT™ Punches, and Slug Removal Ports in EXACT™ Dies, deliver optimal slug removal
Compatible with competitive accessories
You May Also Like...
Product Specifications
Tool Warranty
5 Years
Power Source
Cordless
Material Composition
Polycarbonate|Stainless Steel|Plastic|Rubber|Metal
Length
6 in
Weight
29 lb
Height
17.5 in
Width
23 in
Warranty
5 Year Limited Warranty
Battery
M18™ REDLITHIUM™
Charger
M18™ and M12™ Multi-Voltage Charger
Charge Time
1 hour
Capacity in Mild Steel
1/2" to 4"
Capacity in Stainless Steel
1/2" to 4"
Output Force
10 Tons
Quick Connect Draw Stud
Yes
Battery Warranty
3 Year
Voltage
18V
Battery System
M18
