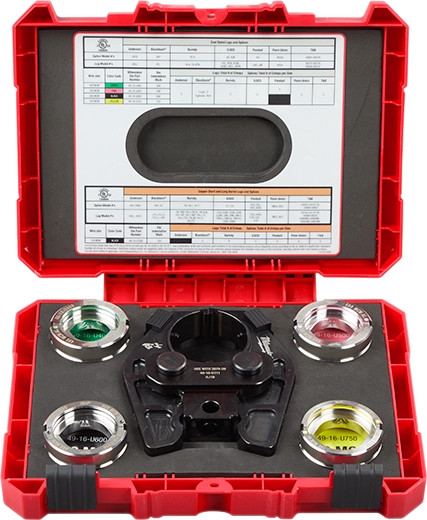

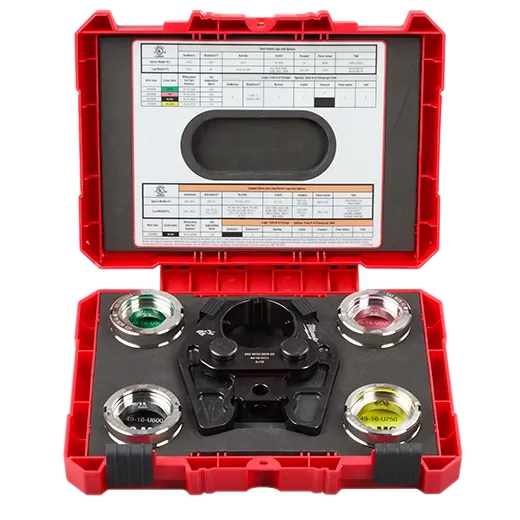

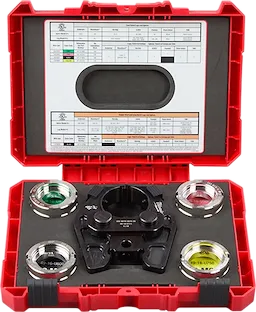

750 MCM Cu/Al Crimping Jaw with 400-750 MCM Al 6T U Style Dies

The 750 MCM Cu/Al Crimping Jaw with 400-750 MCM Al 6T U Style Dies is the Most Accurate Way to Crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 - 750 MCM Copper & Dual Rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. The crimping jaw uses MILWAUKEE® U Style Dies that feature vivid wire size markings and industry-standard color markings. The aluminum crimper dies also imprint wire size onto the connector after crimp completion. The crimper is made for commercial electricians and is designed to provide you with ease of use and easy inspection. For use with our M18™ Force Logic™ 600 MCM Crimper (2679-20).
49-16-750A - 750 MCM Cu/Al Crimping Jaw with 750 MCM Al 6T U Style Dies

750 MCM Cu/Al Crimping Jaw with 400-750 MCM Al 6T U Style Dies

Key FeaturesSpecificationsReviews
100% Inspected for Critical Dimensions & Serialized: Ensures Crimp Quality
Die Size Pressed into Connector matches wire size Eliminating Cross Referencing
Proprietary Jaw: Holds Connector for Instant Alignment
Stainless Steel Finish: Protects against Corrosion
Wire Size Marked on Each Die: Easy Identification

You May Also Like...

Product Specifications

Tool Warranty
No Warranty
Material Composition
Metal
Material Application
Multi-Purpose
Length
2.68 in
Weight
6.31 lb
Height
8.03 in
Width
10.63 in
