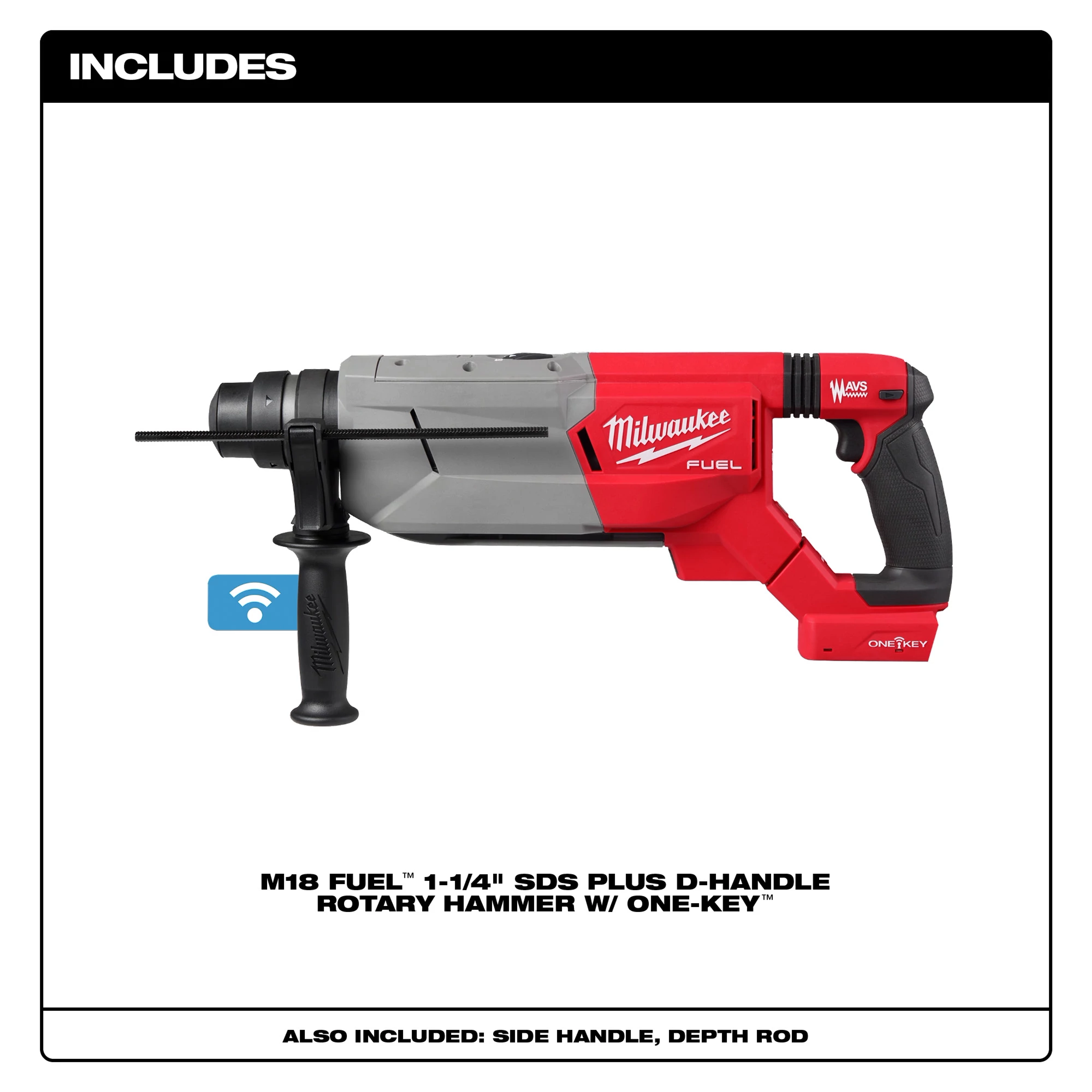

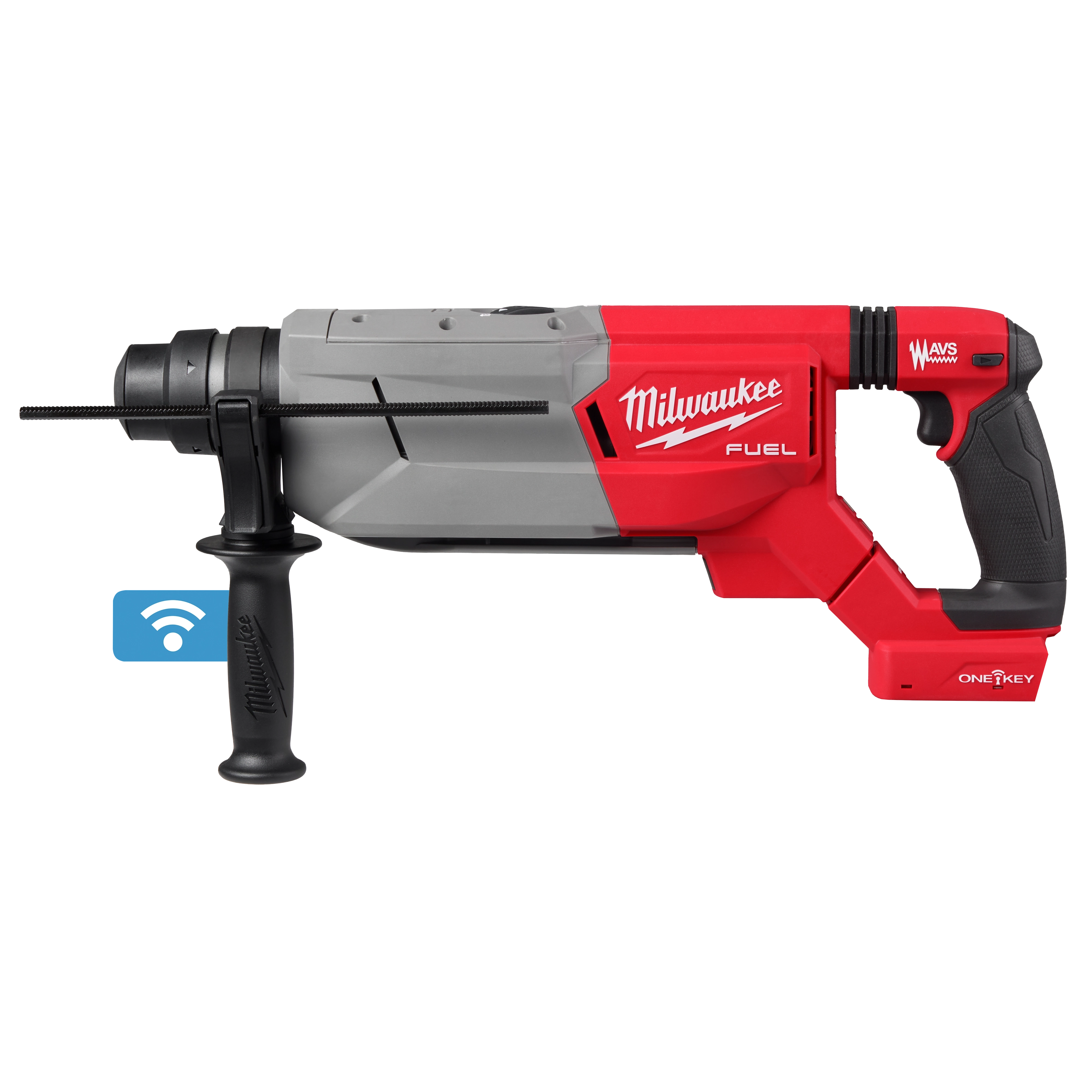

M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™

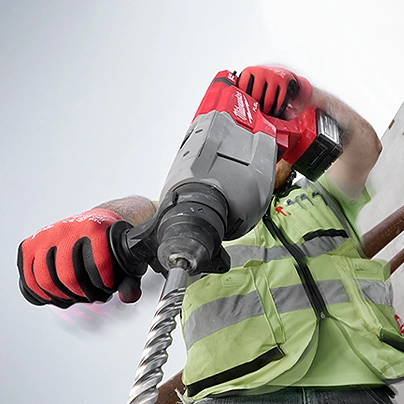

Our M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” Holes and is Lighter Versus 1-9/16" SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) ¾” x 4” Holes per Charge when paired with our M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. Our in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. Our POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with our M18 FUEL™ HAMMERVAC™ 1-1/4” Dedicated Dust Extractor providing on-board OSHA Table One compliance. Our AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge. Our M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than our M18™ REDLITHIUM™ XC batteries (not included).

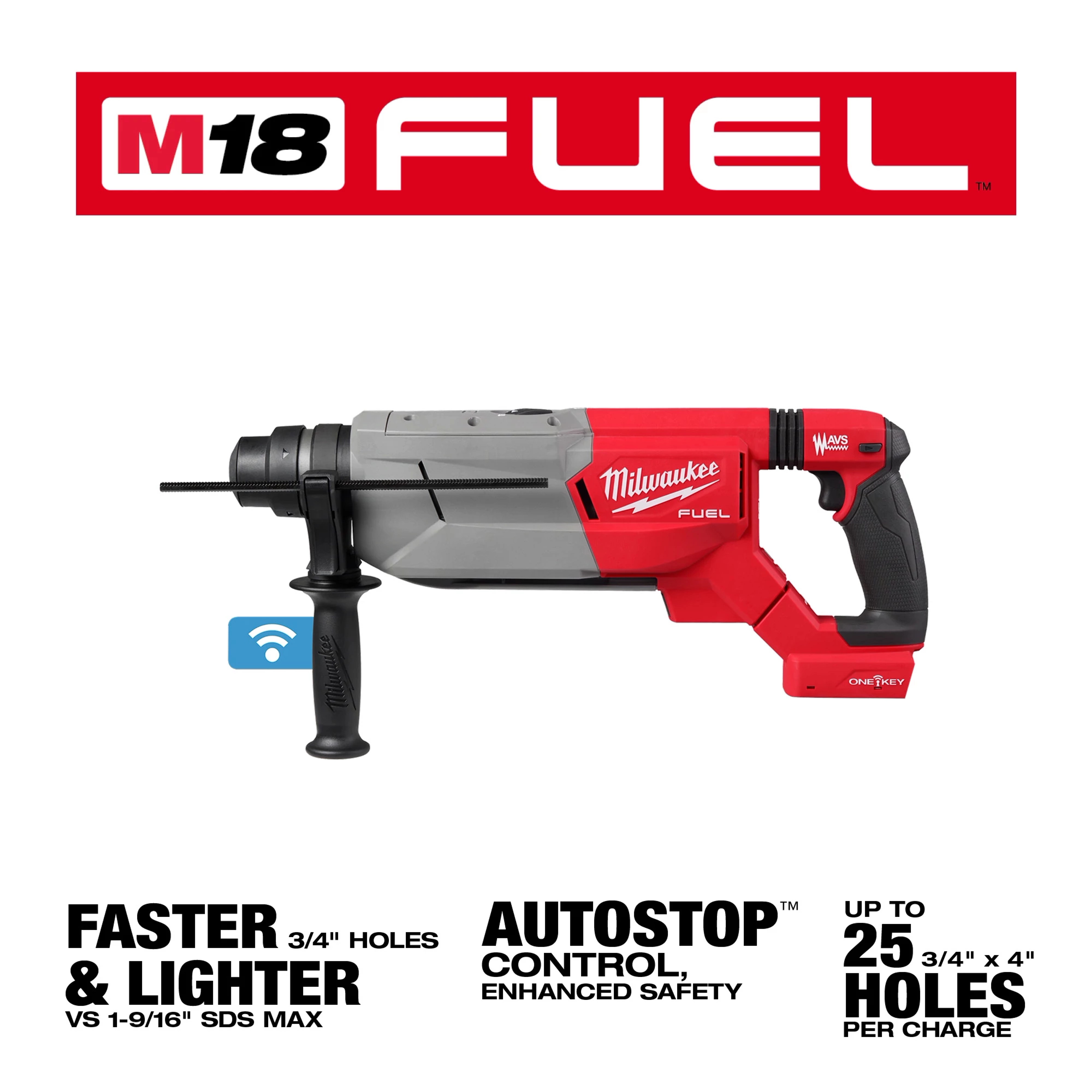

1-1/4" SDS Plus D-Handle Rotary Hammer
w/ ONE-KEY™

FASTER
3/4" Holes
& Lighter
vs 1-9/16" SDS MAX
AUTOSTOP™
CONTROL
ENHANCED SAFETY
UP TO
(25) 3/4" x 4"
HOLES
PER CHARGE

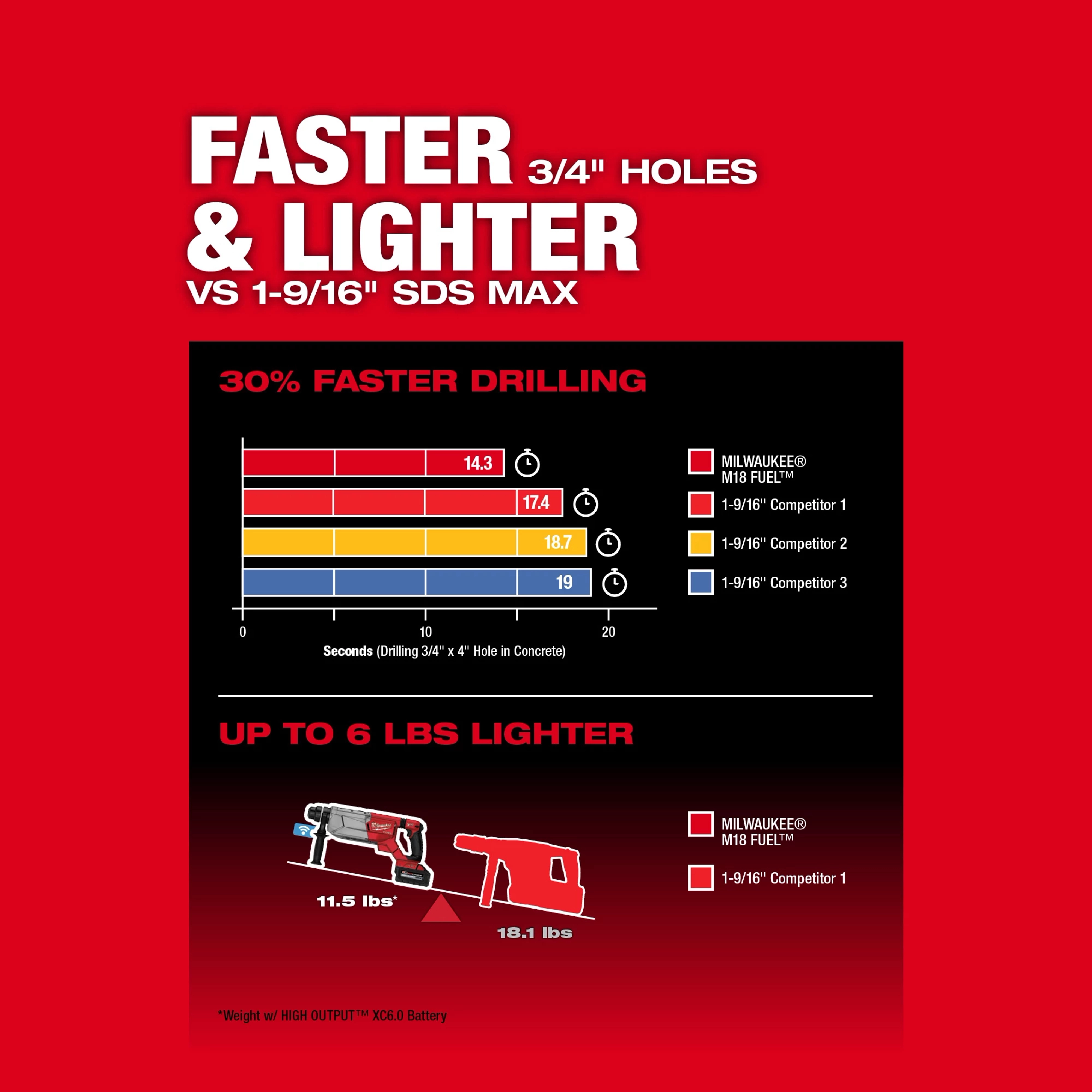

FASTER 3/4" HOLES & LIGHTER VS 1-9/16" SDS MAX

  • The M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ drills faster ¾" holes and is lighter versus SDS max rotary hammers. The POWERSTATE™ brushless motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications

AUTOSTOP™ CONTROL, ENHANCED SAFETY

  • AUTOSTOP™ kickback control prevents over-rotation by stopping the hammer if it binds up during drilling when hitting rebar or hard aggregate

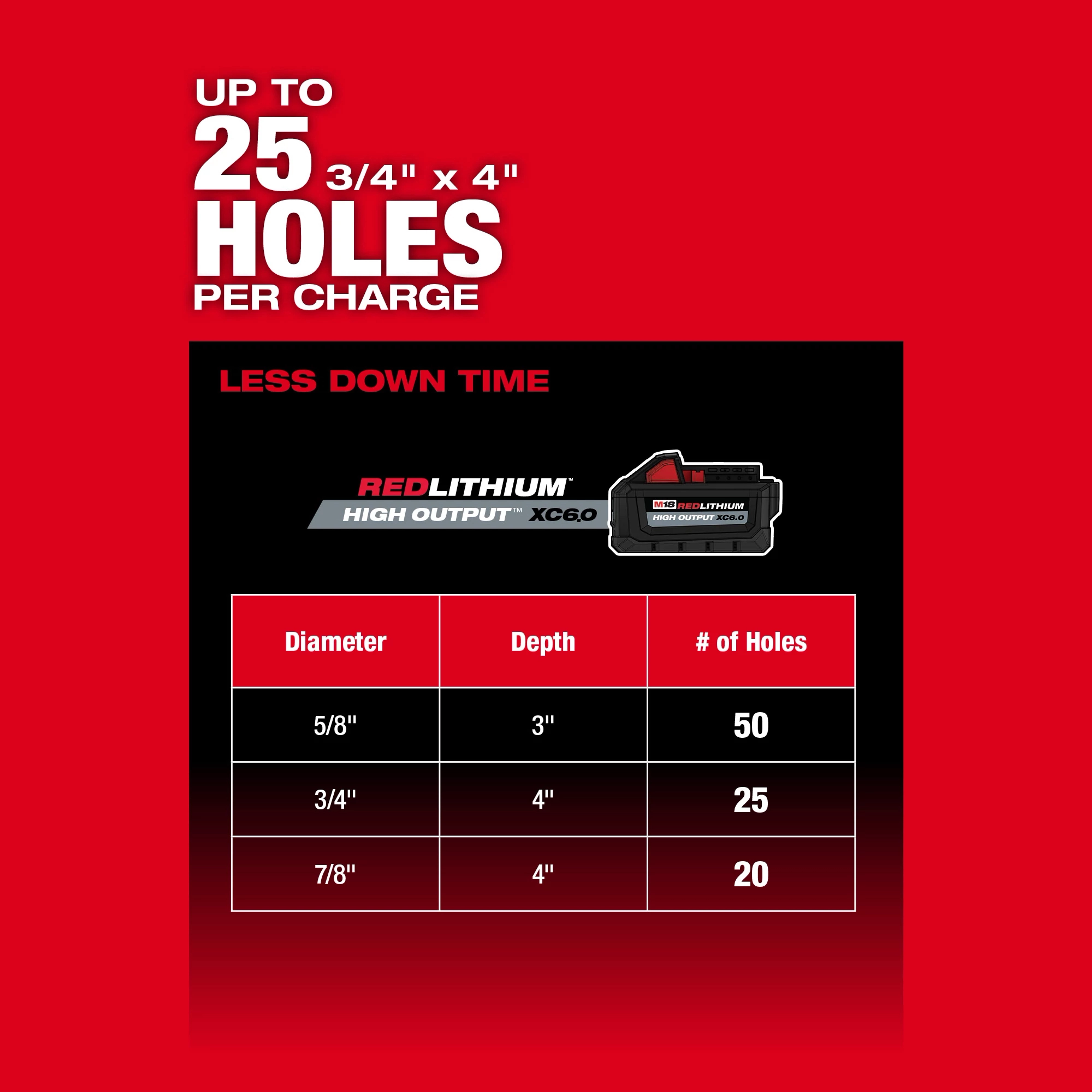

  • UP TO 25 3/4" X 4" HOLES PER CHARGE

  • With the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery this hammer can deliver up to (25) 3/4" x 4" holes per charge
  • M18

    PERFORMANCE DRIVEN
    TRADE FOCUSED
    SYSTEM WIDE

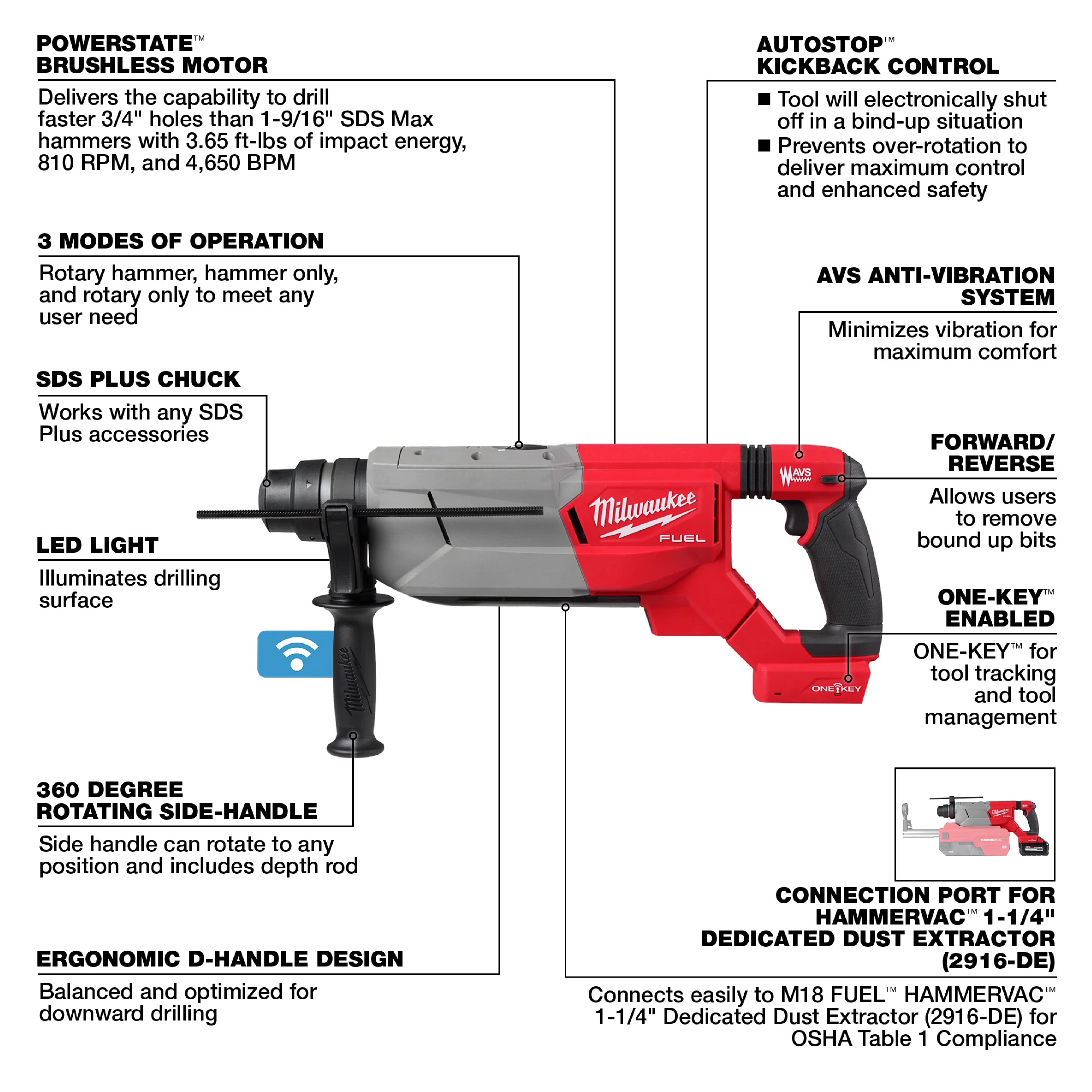

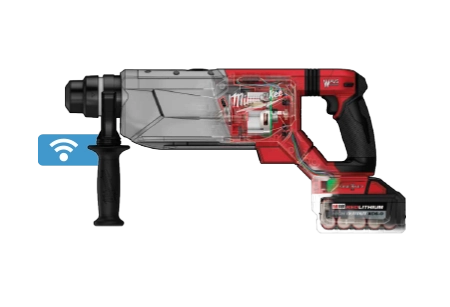

    • POWERSTATE™ Brushless Motor delivers maximum power and long motor life
    • REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
    • The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
    • 3.65 ft-lbs Impact Energy
    • ONE-KEY™ technology allows for tracking, tool security, and inventory management
    • AVS Anti-Vibration System: Minimizes vibration for maximum comfort
    • 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
    • 810 RPM
    • 4,650 BPM

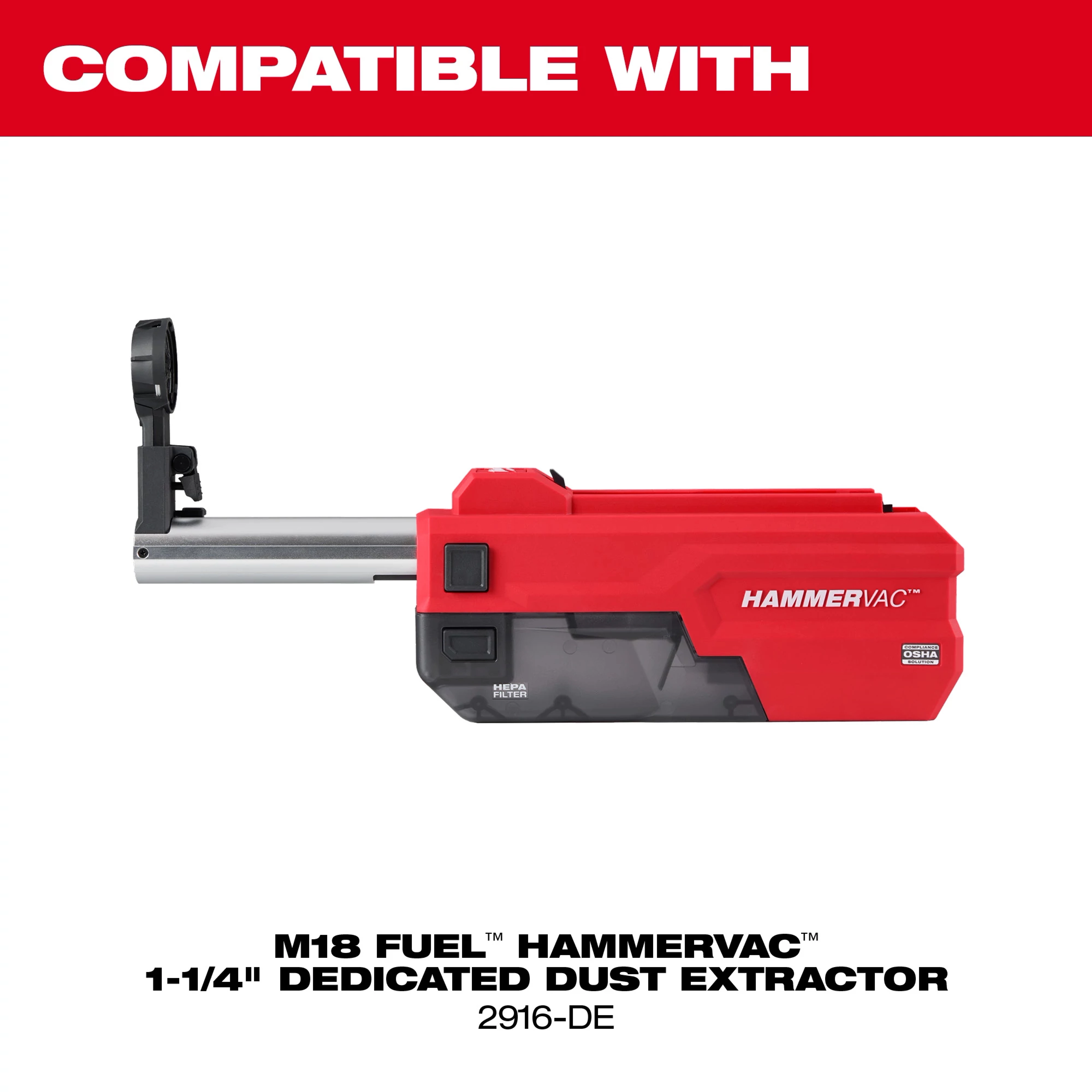

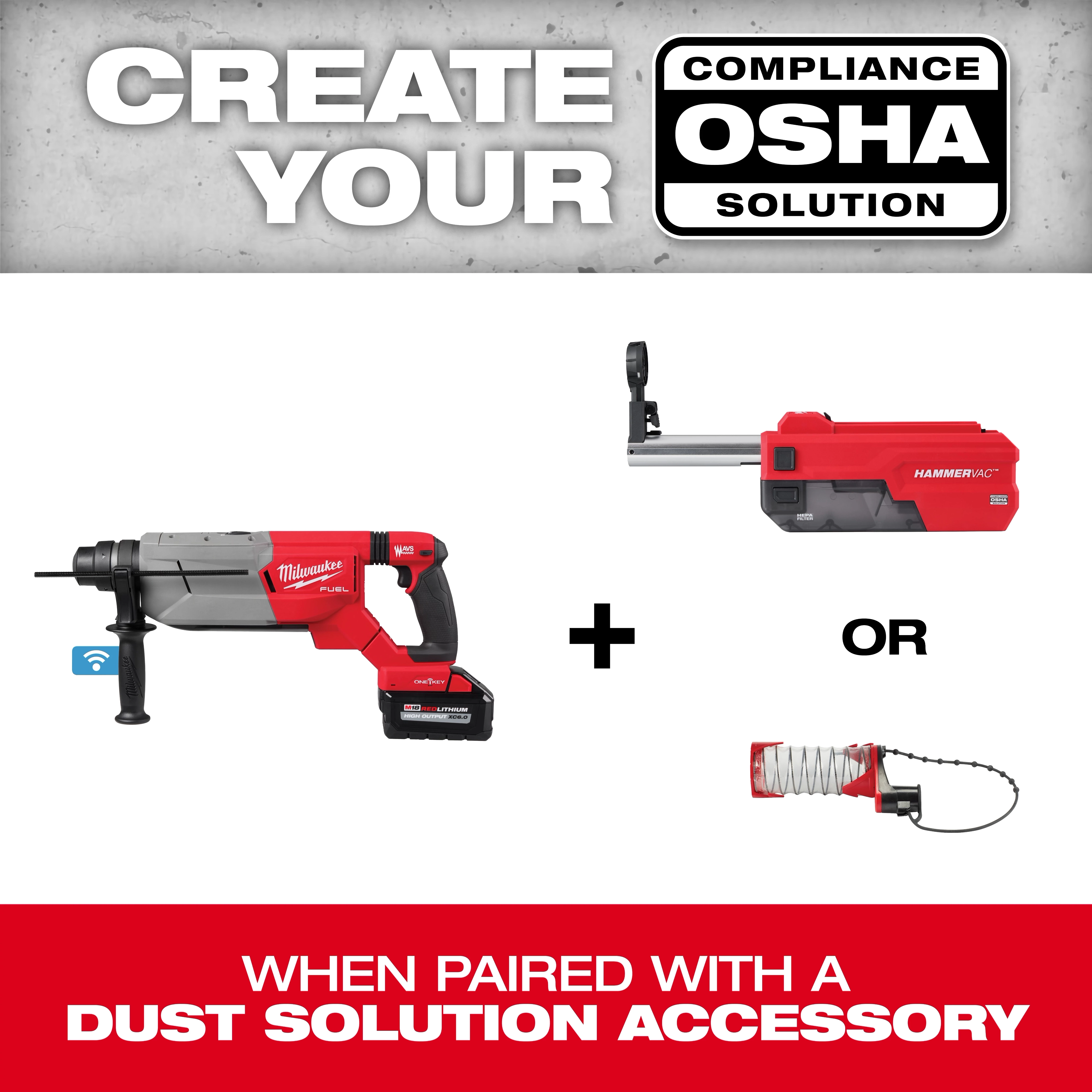

    • Pairs with HAMMERVAC™ 1-1/4” Dedicated Dust Extractor (2916-DE)
    • Part of the M18™ system, featuring over 200+ solutions
    You May Also Like...

    Product Specifications

    Rotary Hammer Size 1-1/4
    Tool Warranty 5 Year Limited Warranty
    Power Source Cordless
    Motor Type POWERSTATE Brushless
    Handle Type D-Handle
    Material Composition Metal
    Length 18.3 in
    Weight 9.2 lb
    Height 7.3 in
    Width 3.6 in
    Max Capacity 1-1/4"
    Impact Energy 3.65 ft-lbs
    Kickback Prevention Yes
    Anti-Vibration Yes
    Length wBattery 19.6"
    Weight wBattery 11.5 lbs
    Solid Bit Capacity 1-1/4”
    Thin Wall Core Bit Capacity 2-1/2”
    Brushless Yes
    Battery System M18
    Chuck Type SDS Plus
    BPM 4650 bpm
    Chuck Size 1-1/4
    Maximum RPM 810 rpm
    RPM Range 0-800
