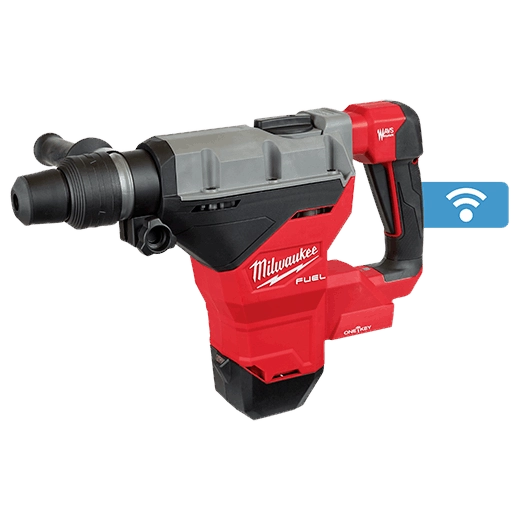

M18 FUEL™ 1-3/4” SDS Max Rotary Hammer w/ ONE KEY™

Our M18 FUEL™ 1-3/4” SDS Max Rotary Hammer w/ ONE KEY™ generates the power of a 15A Corded Rotary Hammer. It has a 1-3/4" capacity, 8.1 ft-lbs of impact energy, 380 RPM, and 2,900 BPM. Our cordless rotary hammer is designed for the professional user, allowing ultimate power, control, enhanced safety, and productivity. The POWERSTATE™ Brushless Motor gives you 8.1 ft-lbs of impact energy that meets and rivals that of corded competition. REDLINK PLUS™ intelligence tool technology ensures maximum rotary drill performance and protects it from overload, overheating, and over discharge. Our M18 REDLITHIUM™ High Output HD12.0 battery delivers unmatched run-time in all applications when used with the rotary hammer drill. It allows the SDS Max hammer drill to chip 1/2 ton of material per charge so you can work harder for longer. Our full feature hammer delivers maximum control and enhanced safety with the AUTOSTOP™ E-Clutch. This prevents over-rotation in case the tool gets bound up while you are drilling in rebar or hard aggregate. Competitive tools can rotate up to 360 degrees while our rotary hammer will stop rotating at 45 degrees when the tool gets bound up. This feature is designed to give you more control while on the job. The cordless rotary hammer is compatible with ONE KEY™, wirelessly connecting to your smartphone to track and manage the tool’s performance and location. ONE-KEY™ integrated tool tracking gives you full visibility over how and where your tools are being used across your network of jobs and users. The technology is built into the tool and not the battery, allowing you to track it even if the battery is not charged or connected. The app will track all compatible devices within a 100 ft range of your phone, allowing you to pinpoint missing tools quicker and increase accountability of your crew. Integrated Tool Security provides the ultimate theft protection with features like tool lock-out, or the ability to hide power tools from nearby device screens allow you to protect your investments. If your tool is lost or stolen, you can render it inoperable by sending a remote command to the tool to shut itself off the next time it comes within range of any ONE-KEY™ app.

M18 FUEL™ 1-3/4” SDS Max Rotary Hammer w/ ONE KEY™

Key FeaturesSpecificationsReviews

M18 FUEL™ 1-3/4” SDS Max Rotary Hammer w/ ONE KEY™

Generates15ACordedPower
MaxControlEnhancedSafety
Chips1/2 Ton of MaterialPer Charge
Cycle Arrow
3
2
1
Click a Number for Details

GENERATES 15A CORDED POWER

  • Delivering 8.1 ft lbs. of impact energy at 380 RPM, 2900 BPM

MAX CONTROL, ENHANCED SAFETY

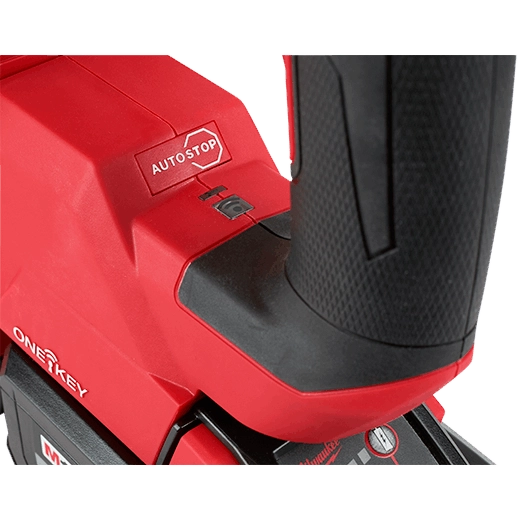

  • AUTOSTOP™ E-clutch that prevents over rotation during tool lock up

CHIPS ½ TON OF MATERIAL
PER CHARGE

  • With the Milwaukee M18™ REDLITHIUM ™ High output HD 12.0 Battery
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

8.1 ft lbs Impact Energy
Generates 15A Corded Power
Max Control, Enhanced Safety
Chips 1/2 Ton of Material Per Charge

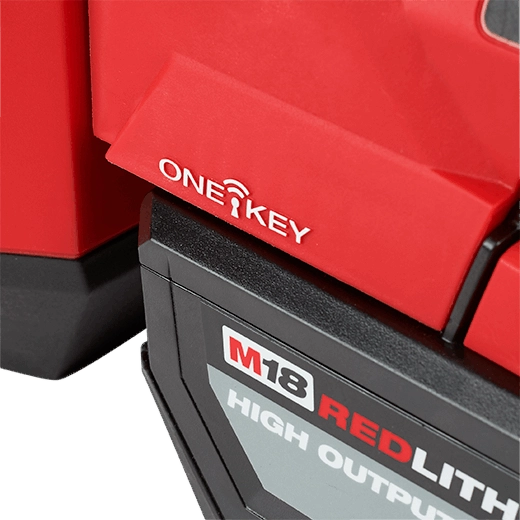

ONE-KEY™ Compatible: Ability to Customize, Track and Manage tools for increased productivity and investment protection
380 RPM
2,900 BPM
AUTOSTOP™ E-Clutch
10 m/s² Vibration
2 Mode: Rotary Hammer and Hammer Only
8.1 ft-lbs Impact Energy
Milwaukee® POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
REDLINK PLUS™ Electronic Intelligence enables advanced communication between your batteries and tools, allowing for unmatched levels of performance, protection, and productivity.
REDLITHIUM™ HIGH OUTPUT™ HD12.0 Battery Pack: Provides 50% more power and runs 50% cooler versus standard REDLITHIUM™ HD packs. Superior pack construction provides the industry's best protection against jobsite conditions.
2 Modes: Rotary Hammer & Hammer Only

Track. Manage.

Track your tool's location from anywhere
Lock your tool and disable remotely
Manage your assets your way
Learn More

You May Also Like...

Product Specifications

Rotary Hammer Size
1-3/4
Tool Warranty
5 Year Limited Warranty
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Handle Type
Drop Motor
Material Composition
Glass Filled Nylon
Length
21.02 in
Weight
19.7 lb
Height
16.4 in
Width
6.4 in
Badge Branding
FUEL™
RPM
380
Impact Energy
8.1 ft-lbs
BPM
2900
OneKey Compatible
Yes
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
Chuck Type
SDS Max
Chuck Size
1-3/4
Maximum RPM
380 rpm
