M18 FUEL™ 1-9/16" SDS Max Rotary Hammer

Our M18 FUEL™ 1-9/16" SDS Max Rotary Hammer is the first to offer an 18V SDS Max cordless solution. By utilizing proprietary M18 FUEL™ technology, the 1-9/16" SDS Max rotary hammer can drill as fast as corded SDS Max rotary hammers, deliver corded durability, and provide over 20 minutes of continuous chipping. The POWERSTATE™ Brushless Motor delivers 5 ft-lbs of impact energy for the more demanding, heavy-duty applications, including dry coring and medium-duty chipping in both concrete block and reinforced concrete. Powered by the M18™ REDLITHIUM™ FORGE™ XC8.0 battery pack, which delivers up to 5X more run-time, 35% more power, and runs 60% cooler than standard lithium-ion batteries, the 1-9/16" SDS Max Rotary Hammer delivers over 20 minutes of continuous chipping. It also includes REDLINK PLUS™ Intelligence, the most advanced electronic system on the market, to prevent damage to the tool and battery from overloading and overheating. The M18 FUEL™ 1-9/16" SDS Max Rotary Hammer is part of the MILWAUKEE® complete cordless rotary hammer line-up, ranging from Compact SDS Plus to SDS Max, all powered by the M18™ REDLITHIUM™ battery system.

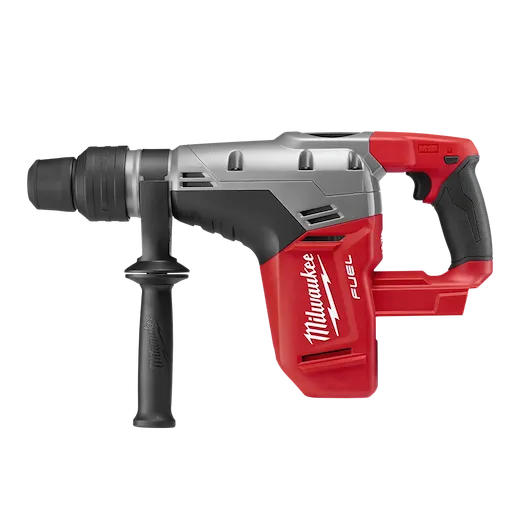

M18 FUEL™ 1-9/16" SDS Max
Rotary Hammer Primary Image

M18 FUEL™ 1-9/16" SDS Max Rotary Hammer

Key FeaturesSpecificationsReviews
Milwaukee® POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life.
REDLINK PLUS™ Electronic Intelligence enables advanced communication between your batteries and tools, allowing for unmatched levels of performance, protection, and productivity.
The M18™ REDLITHIUM™ FORGE™ Battery Pack is the most durable pack on the market delivering more run-time, power and longer battery life.
REDLINK Plus™ intelligence: integrates full-circle communication between the tool, battery and charger to protect from overloading, overheating and over-discharging.

You May Also Like...

Product Specifications

Rotary Hammer Size
1-9/16
Tool Warranty
5 Year Limited Warranty
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Handle Type
Drop Motor
Material Composition
Glass Filled Nylon
Length
17.9 in
Weight
11.74 lb
Height
10.2 in
Width
4.1 in
Badge Branding
FUEL™
No Load RPM
0-450
Blow Energy
5.1 ft-lbs
BPM
0-3000 bpm
Solid Bit Capacity
1-9/16"
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
Chuck Type
SDS Max
Chuck Size
1-9/16
Maximum RPM
450 rpm
