HANDHELD CORE DRILL KIT W/ STAND

MXF301-2CXS

SAFER HANDHELD CORING

POWER TO CORE 6" HOLES IN REINFORCED CONCRETE

EASIEST CORING ANYWHERE

Learn More about the MX FUEL™ Equipment System
also available
Handheld core Drill
(MXF301-1CP)

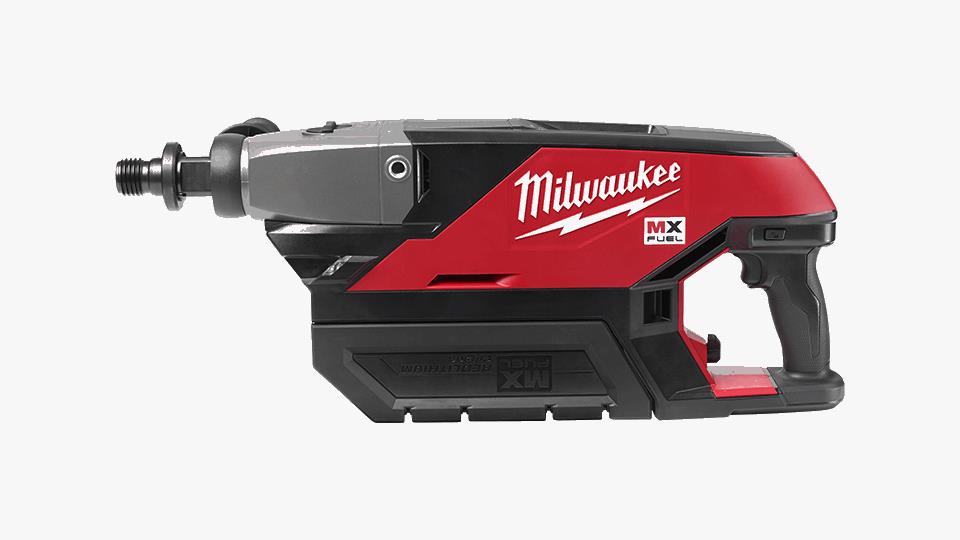

MX FUEL™ HANDHELD CORE DRILL KIT W/ STAND

CORE WITH MORE CONFIDENCE

Our MX FUEL™ Handheld Core Drill with Stand allows you to core with more confidence than ever before. A patented clutch and AUTOSTOP™ technology deliver a safer handheld coring experience. They provide you with maximum control and prevent over-rotation in case the core drilling machine gets bound up. The POWERSTATE™ Brushless Motor delivers you the power to core up to 6” holes in reinforced concrete. REDLINK PLUS™ Intelligence ensures maximum performance and protection from overload, overheating, and over-discharge. An onboard LED level and performance gauge provide you with maximum efficiency while coring. These features, along with the option to wet or dry core make it easier for you to core anywhere. The MX FUEL™ REDLITHIUM™ battery pack powers through concrete and block almost anywhere, without the hassle of extension cords or tripping breakers. The cordless core drill is compatible with all MILWAUKEE® MX FUEL™ REDLITHIUM™ batteries, giving you the hardest working and most reliable power for equipment. The diamond core drill is ONE-KEY™ Compatible. You can track, manage and secure equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If your core drill is ever lost or stolen you can prevent tampering with remote lockout capability. In addition to the handheld core drill, this kit includes our compact core drill stand.

SAFER HANDHELD CORING
Power to core 6" holes in reinforced concrete
EASIEST CORING ANYWHERE
Run-Time

The CP203 Battery recharges in 45 Minutes. The XC406 Battery recharges in 90 Minutes.

(9) 3" Holes in Block
with CP Battery

(5) 3" Holes in 6" Concrete
With CP Battery

(18) 3" Holes in Block with XC Battery

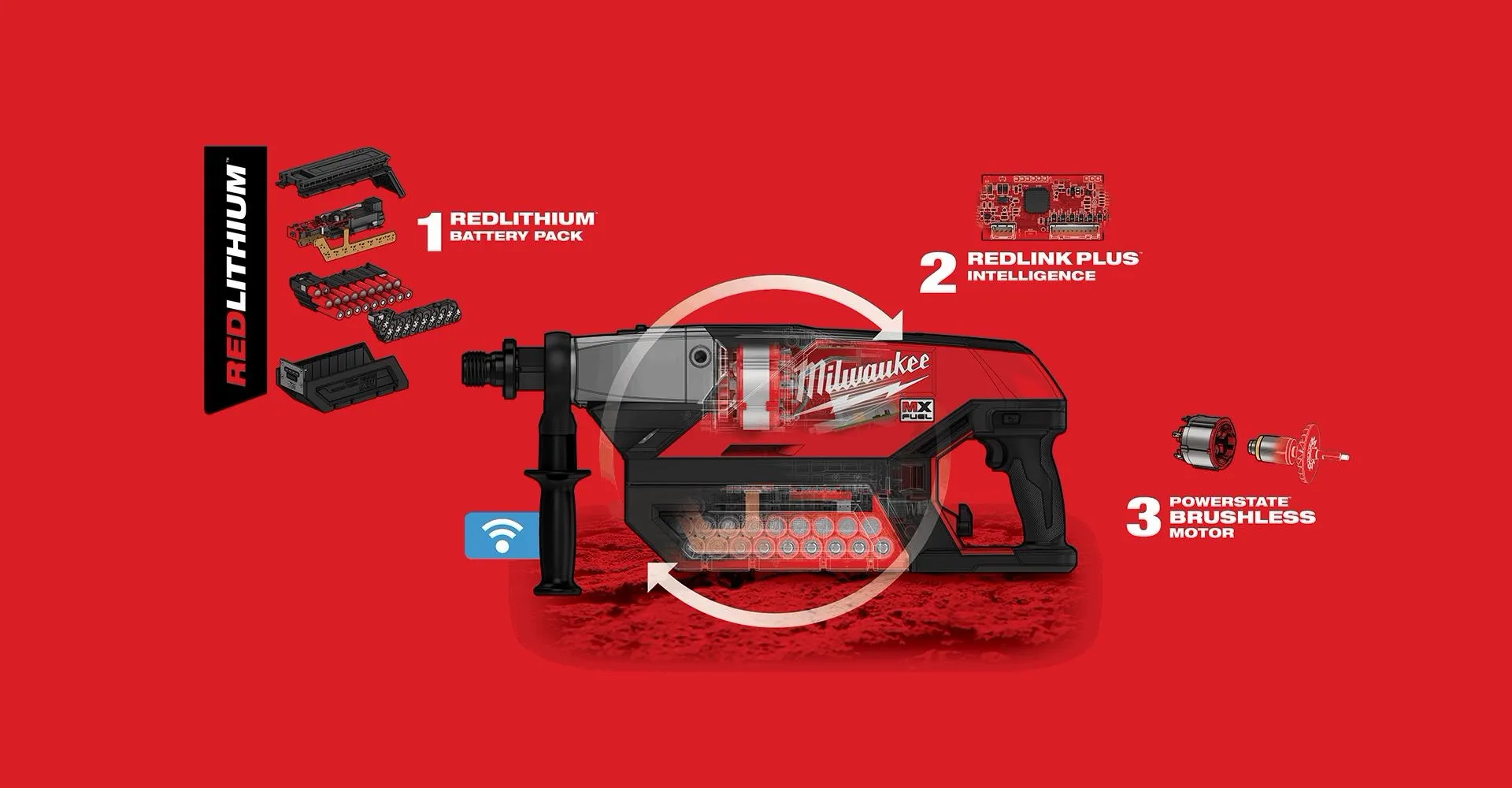

MX Fuel™ Technology
Specifications

    AUTOSTOP™ & Patented Clutch

    A patented clutch and AUTOSTOP™ technology delivers a safer handheld coring experience by providing maximum control and preventing over-rotation in case the machine gets bound up.

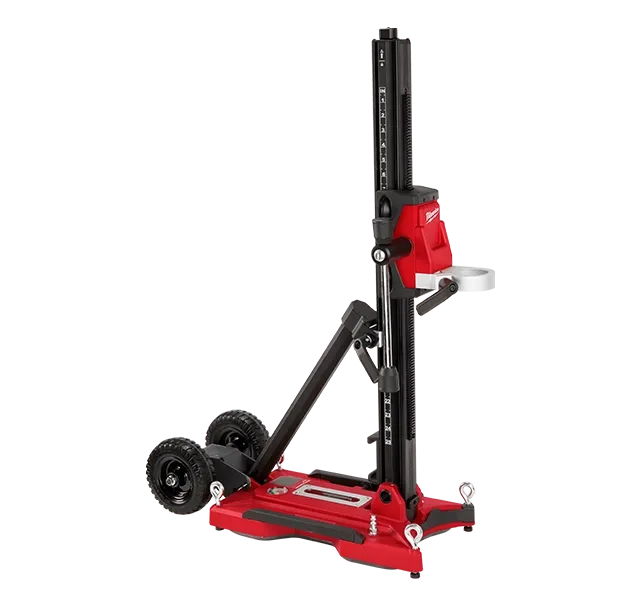

    Compact Stand

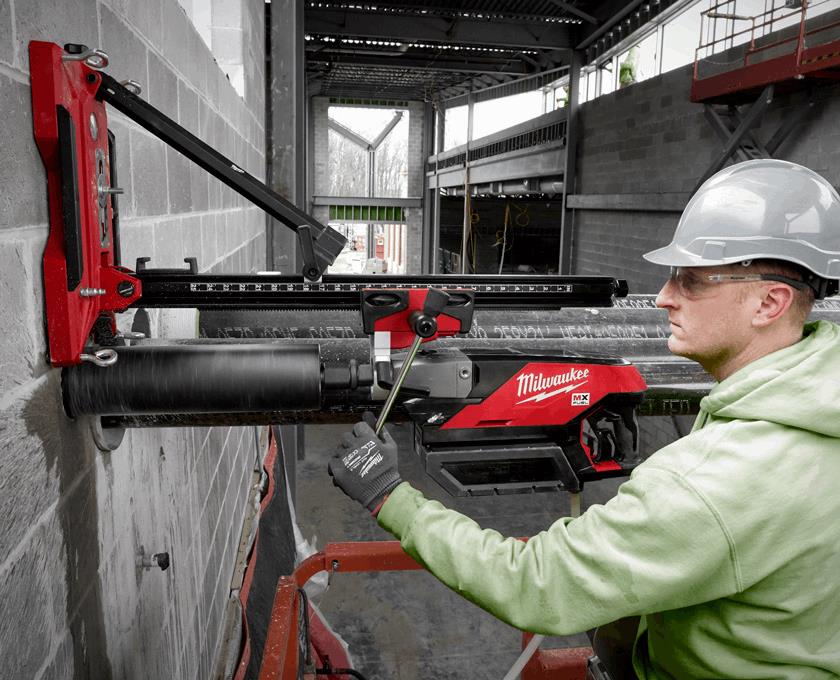

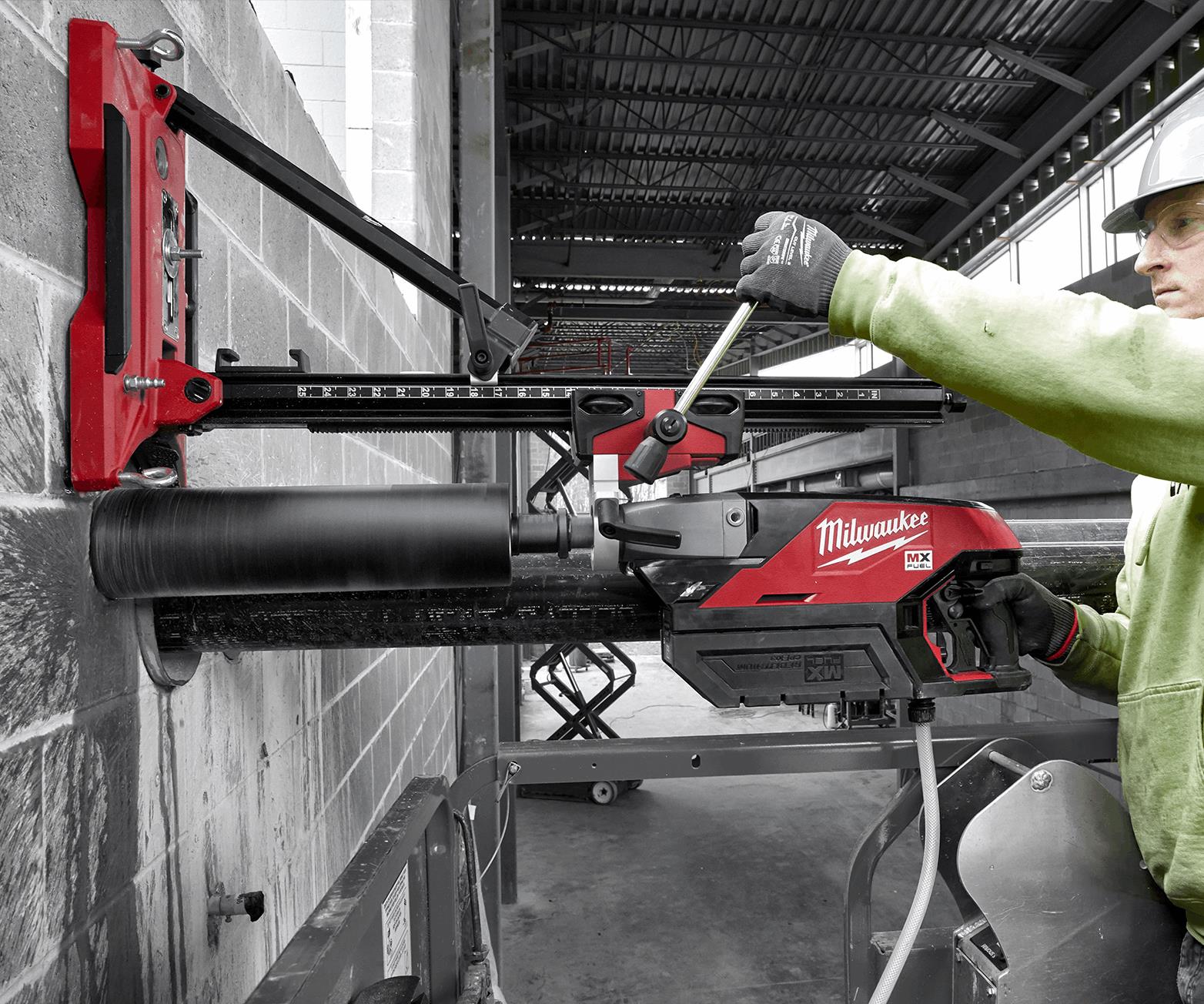

    The Compact Stand turns the handheld core drill into a portable, lightweight, rig-mounted solution for more versatile coring up to 6" holes.Easy-to-adjust angled mast settings, and the option to anchor or vacuum provide a versatile solution for coring on site.

    Pressure Gauge & LED Level

    An Integrated Pressure Gauge helps provide the most efficient drilling pressure to maximize productivity and runtime. The LED Level ensures easy, accurate holes handheld.

    Onboard Water Connection

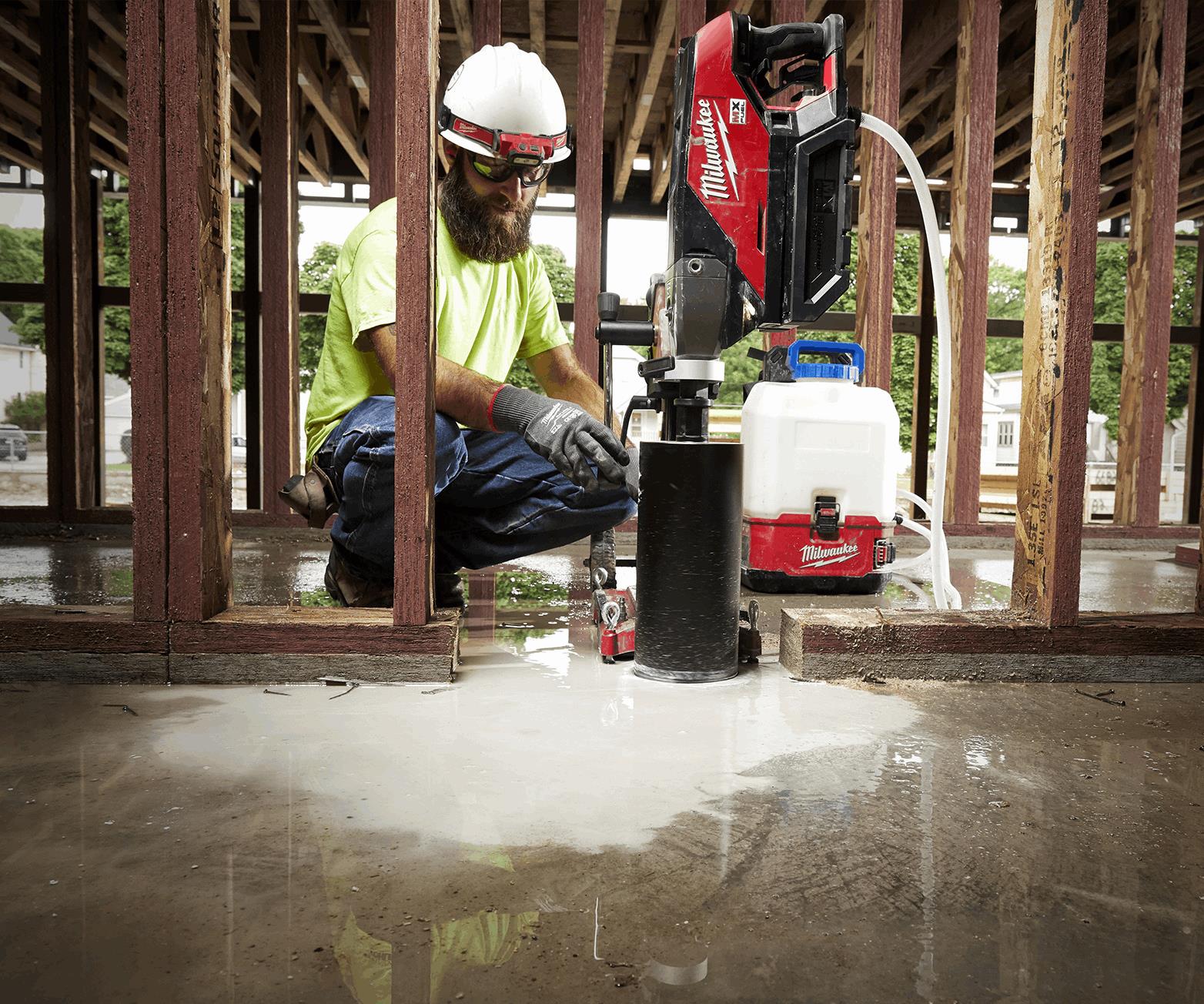

    An onboard water connection allows you to core in both dry and wet applications. A universal quick connect hose ensures simple and effective wet drilling in the toughest applications.

    ONE-KEY™ Compatible

    Track, manage and secure equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If ever lost or stolen, prevent tampering with remote lockout capability.

    Battery Type
    Lithium-Ion
    Battery System
    MX FUEL™
    Bit Capacity
    6"
    Spindle Sizes
    1-¼"-7 and 5/8"-11 adapter
    RPMs Low High
    790/1550
    Wet Dry
    Yes
    Length
    21.58"
    Width
    4.80"
    Height
    9.29"
    Weight
    21.58 lbs
    Equipment Warranty
    2 year
    Battery Warranty
    2 year
    Push Button Activation
    Yes
    ONE KEY Compatible
    Yes
    Includes
    (1) MX FUEL™ REDLITHIUM™ XC406 BATTERY PACK (MXFXC406) (1) MX FUEL™ HANDHELD CORE DRILL (1) MX FUEL™ REDLITHIUM™ CP203 BATTERY PACK (MXFCP203) (1) MX FUEL™ CHARGER (MXFC) (1) Compact Stand (1) Hard Case with Wheels (1) Quick Connect Collar (1) 5/8"-11 Bit Adapter (1) Trigger Lock-On
    Downloads
    Download Operator’s Manual
