SHOCKWAVE Impact Duty™ 1" Drive 6 Point Sockets

Our SHOCKWAVE Impact Duty™ 1" Drive 6 Point Sockets feature the boldest, longest-lasting markings and extreme impact durability in high torque applications. The stamped and ink-filled size markings enable you to select the right socket every time throughout the life of the socket. We engineered these 6-point standard sockets with high-strength forged steel for optimized performance in heavy-duty applications, and a non-slip hex geometry prevents fastener rounding. The dual-hole design and ring groove allow for easy socket attachment and removal. All MILWAUKEE® SHOCKWAVE Impact Duty™ Sockets are backed by our Lifetime Guarantee and meet ASME industry standards. Optional Retaining Rings available (49-66-6745 and 49-66-6746).

  • Optimized for use with 1" drive impact wrenches, and adapters
  • Stamped and ink filled diameter markings for wear resistance
  • 6-Point design made with forged impact steel for durability in high torque applications backed by our Lifetime Guarantee
  • Dual hole design and groove for easier attachment
  • Non-slip hex geometry to prevent socket and fastener rounding
  • Lifetime Guarantee covers impact sockets and extensions only
  • Laser etched part number Meets ASME Industry Standards
  • Optional Retaining Rings Available
You May Also Like...

Socket Type

SAE
Metric
sku
Size
Socket Type
Optional Retaining Ring
49-66-6731
3/4"
SAE
49-66-6745
49-66-6502
7/8"
SAE
49-66-6745
49-66-6503
15/16"
SAE
49-66-6745
49-66-6504
1"
SAE
49-66-6745
49-66-6505
1-1/16"
SAE
49-66-6745
49-66-6506
1-1/8"
SAE
49-66-6745
49-66-6507
1-3/16"
SAE
49-66-6745
49-66-6508
1-1/4"
SAE
49-66-6745
49-66-6509
1-5/16"
SAE
49-66-6745
49-66-6510
1-3/8"
SAE
49-66-6745
49-66-6511
1-7/16"
SAE
49-66-6745
49-66-6512
1-1/2"
SAE
49-66-6745
49-66-6513
1-9/16"
SAE
49-66-6745

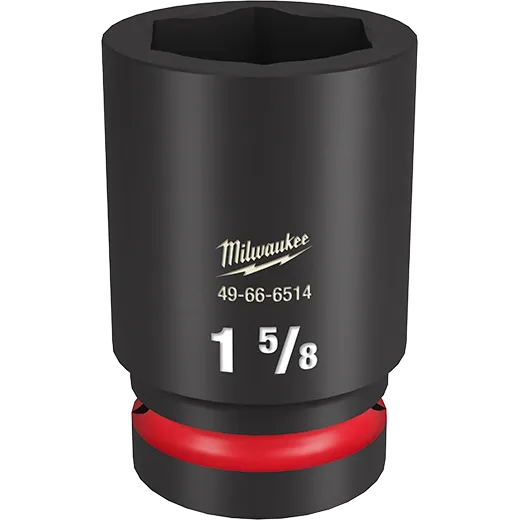

49-66-6514
1-5/8"
SAE
49-66-6745
49-66-6515
1-11/16"
SAE
49-66-6745
49-66-6516
1-3/4"
SAE
49-66-6746
49-66-6517
1-13/16"
SAE
49-66-6746
49-66-6518
1-7/8"
SAE
49-66-6746
49-66-6519
1-15/16"
SAE
49-66-6746
49-66-6520
2"
SAE
49-66-6746
49-66-6521
2-1/4"
SAE
49-66-6746
49-66-6592
27MM
Metric
49-66-6745
49-66-6593
28MM
Metric
49-66-6745
49-66-6594
29MM
Metric
49-66-6745
49-66-6595
30MM
Metric
49-66-6745
49-66-6596
31MM
Metric
49-66-6745
49-66-6597
32MM
Metric
49-66-6745
49-66-6598
33MM
Metric
49-66-6745
49-66-6599
34MM
Metric
49-66-6745
49-66-6600
35MM
Metric
49-66-6745
49-66-6601
36MM
Metric
49-66-6745
49-66-6602
38MM
Metric
49-66-6745
49-66-6603
40MM
Metric
49-66-6745

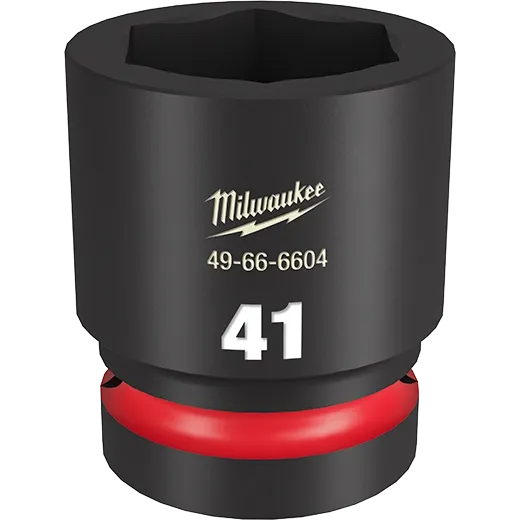

49-66-6604
41MM
Metric
49-66-6745
49-66-6605
42MM
Metric
49-66-6745
49-66-6606
46MM
Metric
49-66-6746
49-66-6607
50MM
Metric
49-66-6746
49-66-6608
52MM
Metric
49-66-6746
49-66-6609
54MM
Metric
49-66-6746
49-66-6610
55MM
Metric
49-66-6746
49-66-6611
56MM
Metric
49-66-6746
49-66-6612
58MM
Metric
49-66-6746
49-66-6613
58MM
Metric
49-66-6746
49-66-6614
65MM
Metric
49-66-6746
49-66-6615
67MM
Metric
49-66-6746
49-66-6616
70MM
Metric
49-66-6746
