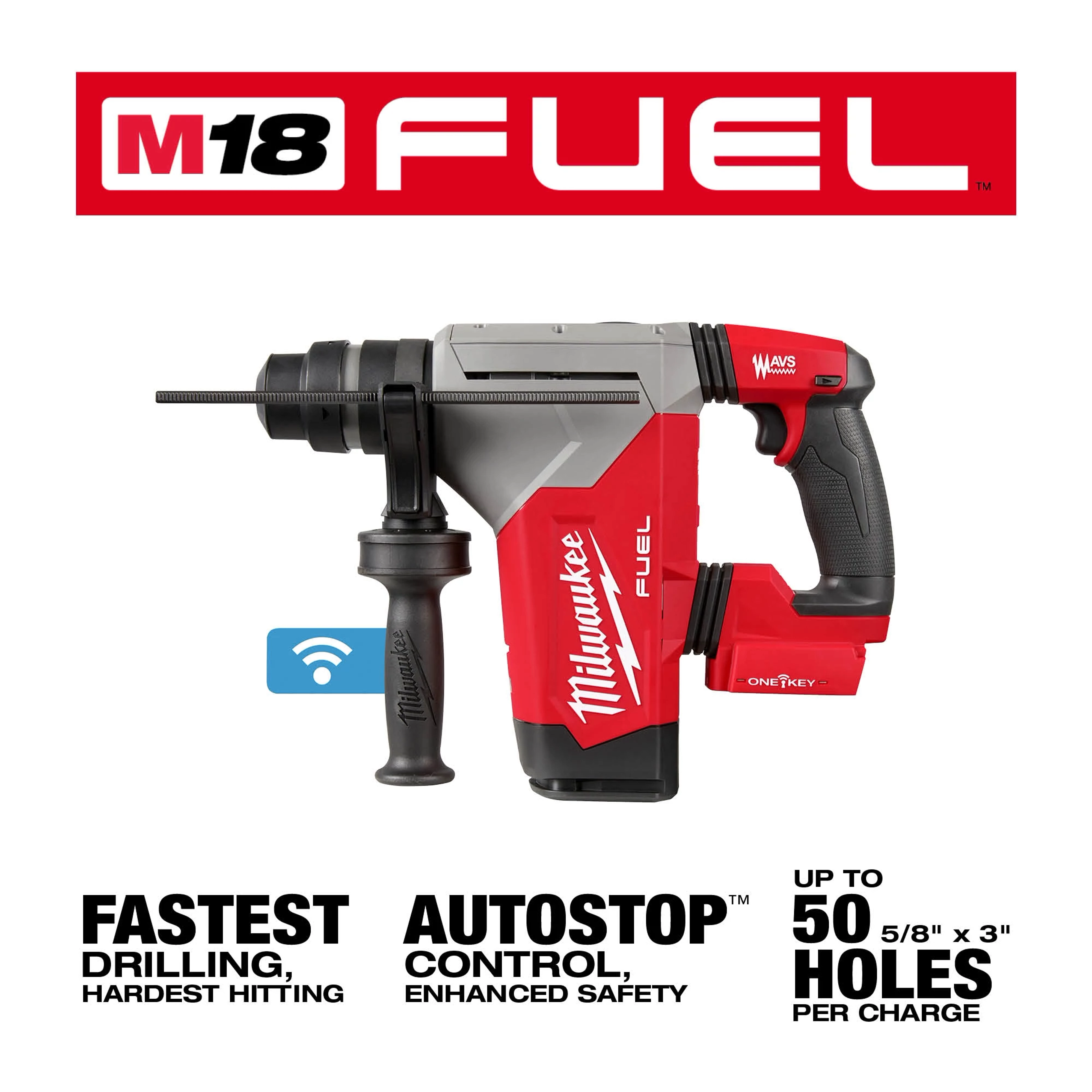

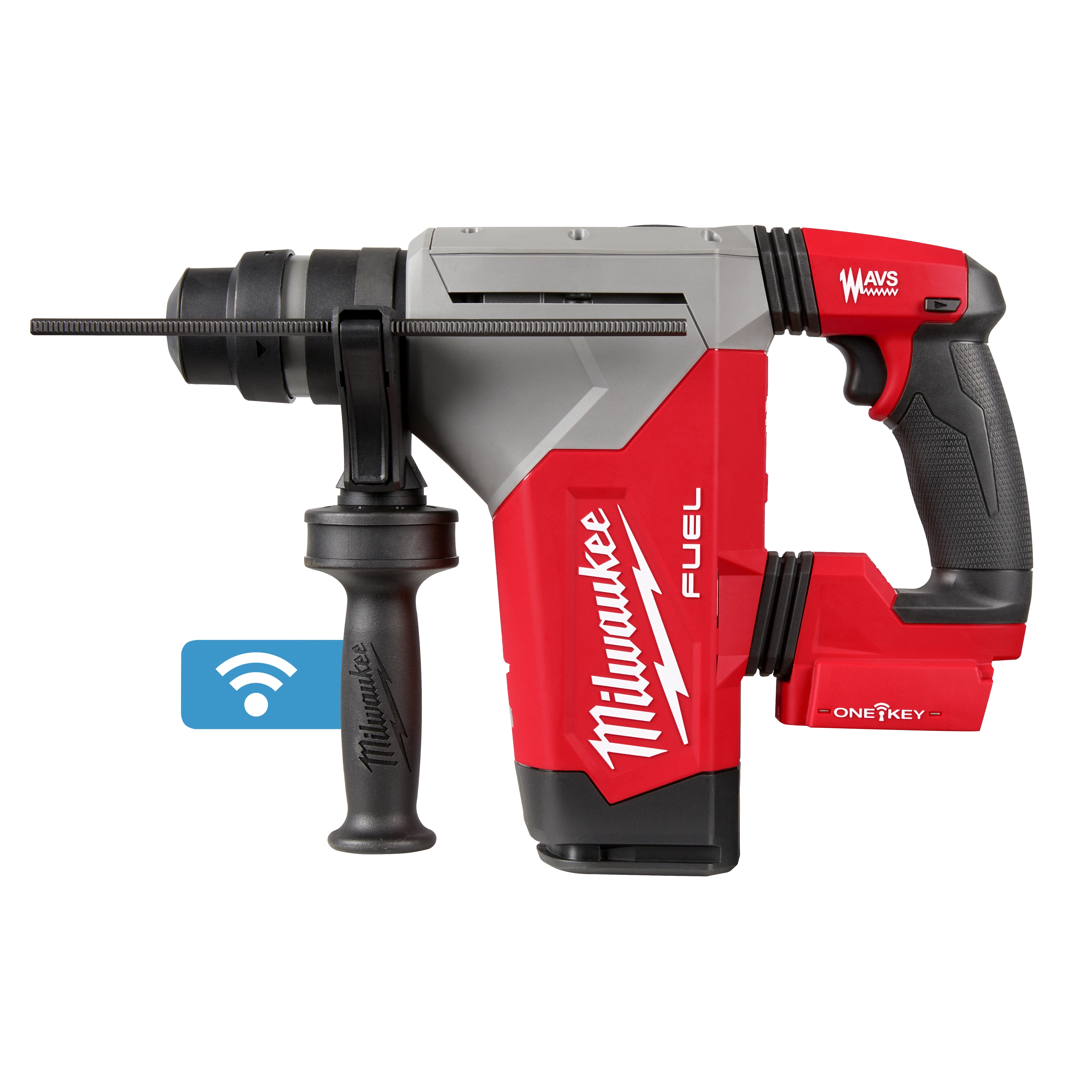

M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™

Our M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer is the next generation of cordless rotary hammers, delivering you ultimate jobsite performance and productivity. The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer is the fastest drilling and hardest-hitting rotary hammer in its class with MILWAUKEE® AUTOSTOP™ Control for enhanced safety drilling up to 50 5/8" x 3" holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. The POWERSTATE™ Brushless Motor delivers 3.6 ft-lbs of impact energy, 800 RPM, and 4,600 BPM, providing you with the speed and power for the most demanding applications. REDLINK PLUS™ intelligence tool technology ensures maximum rotary drill performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. Milwaukee's AVS Anti-Vibration System minimizes vibration for maximum comfort.

1-1/8" SDS PLUS ROTARY HAMMER
W/ ONE-KEY™

FASTEST
DRILLING,
HARDEST HITTING
AUTOSTOP™
CONTROL,
ENHANCED SAFETY
UP TO
50 5/8" x 3"
HOLES
PER CHARGE

FASTEST DRILLING, HARDEST HITTING

  • The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ is faster drilling and harder hitting than both corded and cordless 1-1/8" rotary hammers leading to increased productivity.

AUTOSTOP™ CONTROL, ENHANCED SAFETY

  • AUTOSTOP™ Kickback Control prevents over-rotation by stopping the hammer if it binds up during drilling when hitting rebar or hard aggregate.

UP TO 50 5/8” X 3” HOLES PER CHARGE

  • With the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery this hammer can deliver up to (50) 5/8" x 3" holes per charge.
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

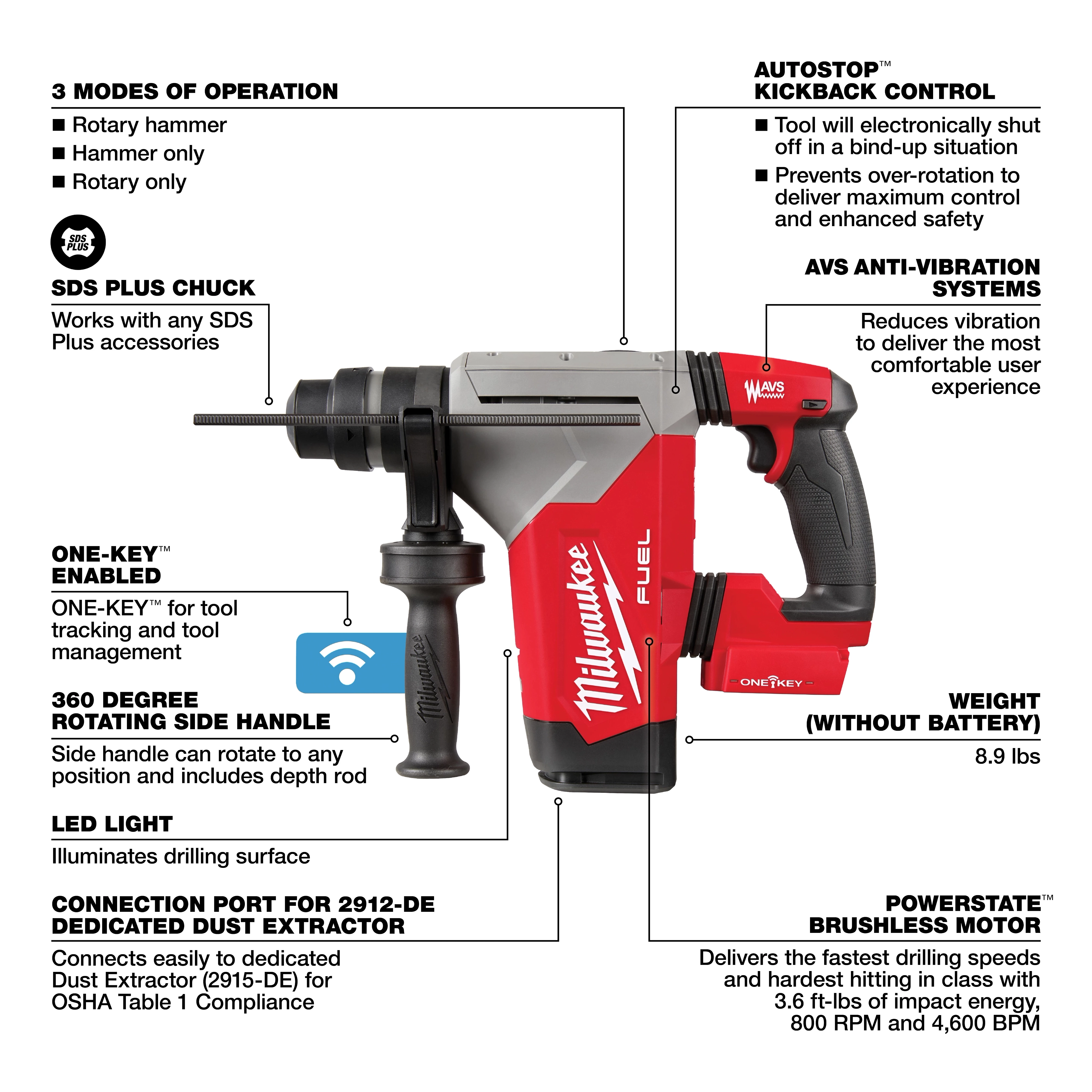

  • POWERSTATE™ Brushless Motor delivers maximum power and long motor life
  • REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
  • The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
  • 3.6 ft-lbs Impact Energy
  • ONE-KEY™ technology allows for tracking, tool security, and inventory management
  • AVS Anti-Vibration System: Minimizes vibration for maximum comfort
  • 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
  • 800 RPM
  • 4,600 BPM
  • Part of the M18™ system, featuring over 200+ solutions
You May Also Like...

Product Specifications

Rotary Hammer Size 1-1/8
Tool Warranty 5 Year Limited Warranty
Power Source Cordless
Motor Type POWERSTATE Brushless
Handle Type Drop Motor
Material Composition Metal
Length 13.5 in
Weight 8.9 lb
Height 10.2 in
Width 3.4 in
No Load Speed 800 RPM
Blow Energy 3.6 ft-lbs
BPM 0-4600
Solid Bit Capacity 1-1/8"
Thin Wall Core Bit Capacity 3"
Drilling Mode 3-Mode: Rotary Hammer, Hammer Only, Rotation Only`
Vibration AVS™ Anti-Vibration System
Voltage 18V
Brushless Yes
Battery System M18
Chuck Type SDS Plus
Chuck Size 1-1/8
Maximum RPM 800 rpm
